Removal & Installation
- Disconnect negative battery cable. Remove instrument cluster. Remove cluster illumination connector screws. See Figure

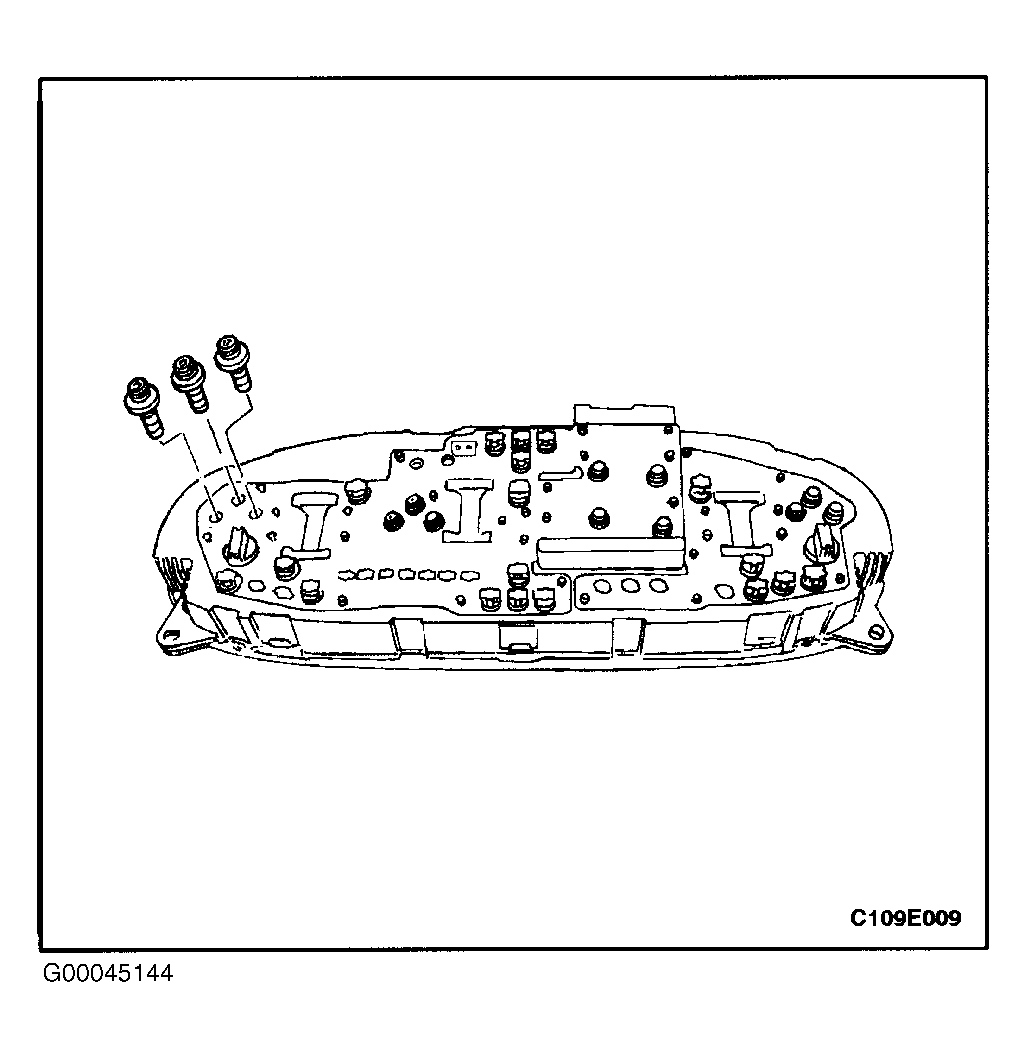

. Press clips down and remove instrument cluster lens. Remove screws and temperature gauge from cluster assembly. See Fig 1
.
- Install temperature gauge to cluster assembly with screws. Tighten temperature gauge screws to 2 N.m (18 INCH Lbs.). Install instrument cluster lens. Install cluster illumination connector screws. Tighten cluster illumination connector screws to 2 N.m (18 INCH Lbs.). Install instrument cluster. Connect negative battery cable.
