Removal & Installation

  1. Remove instrument cluster trim panel. Remove screws and vents. See Fig 1 .
  2. Install vents with screws. Tighten instrument panel vent screws to 3 N.m (27 INCH Lbs.). Install instrument cluster trim panel.

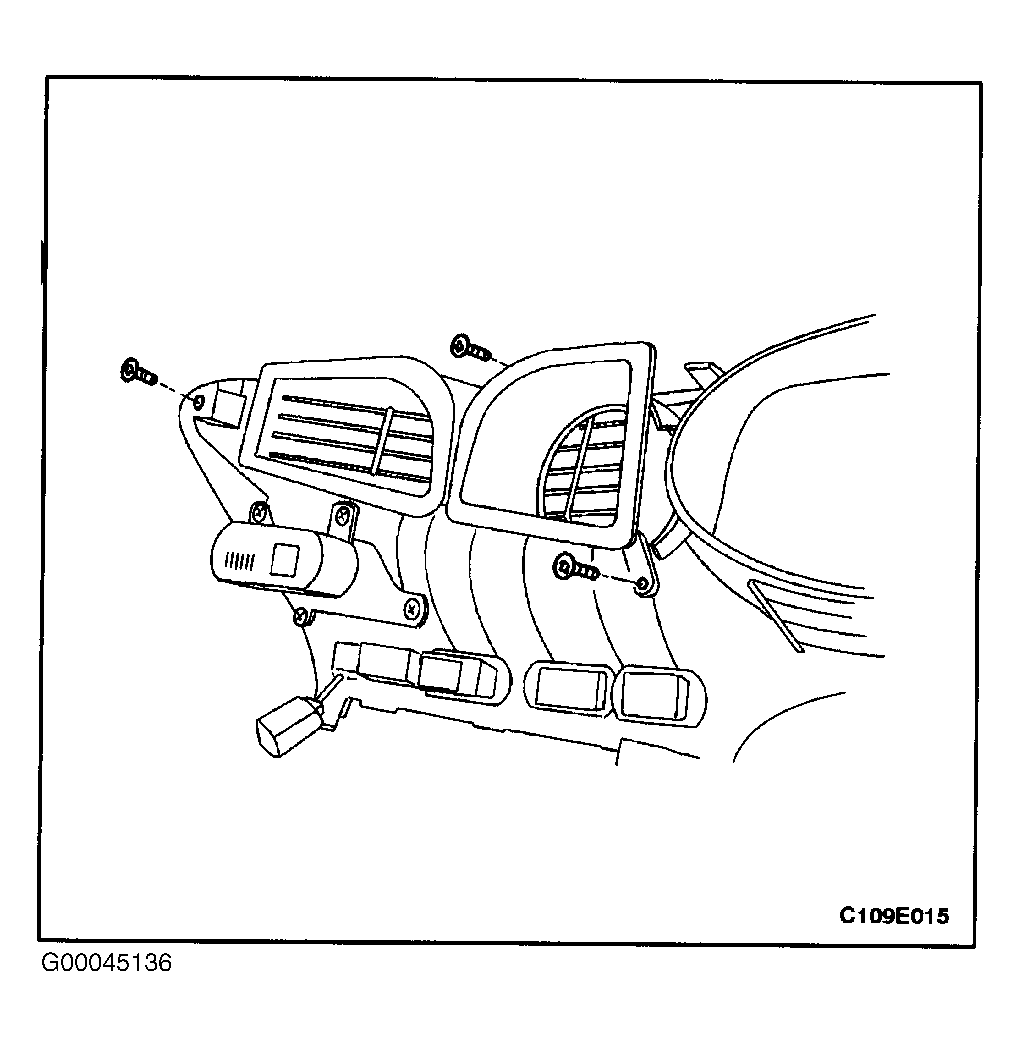

Fig 1: Instrument Panel Vent & Screw Removal & Installation
G00045136Courtesy of DAEWOO MOTOR AMERICA, INC.
