Chime Module: Removal

Disconnect negative battery cable. Remove hood release handle screw and knee bolster trim panel. See Fig 1 .
Remove screw and instrument panel side trim cover. Disconnect electrical connector. Remove screws and chime module. See Fig 2 .

Fig 1: Hood Release Handle Screw & Knee Bolster Trim Panel Removal & Installation
Courtesy of DAEWOO MOTOR AMERICA, INC.

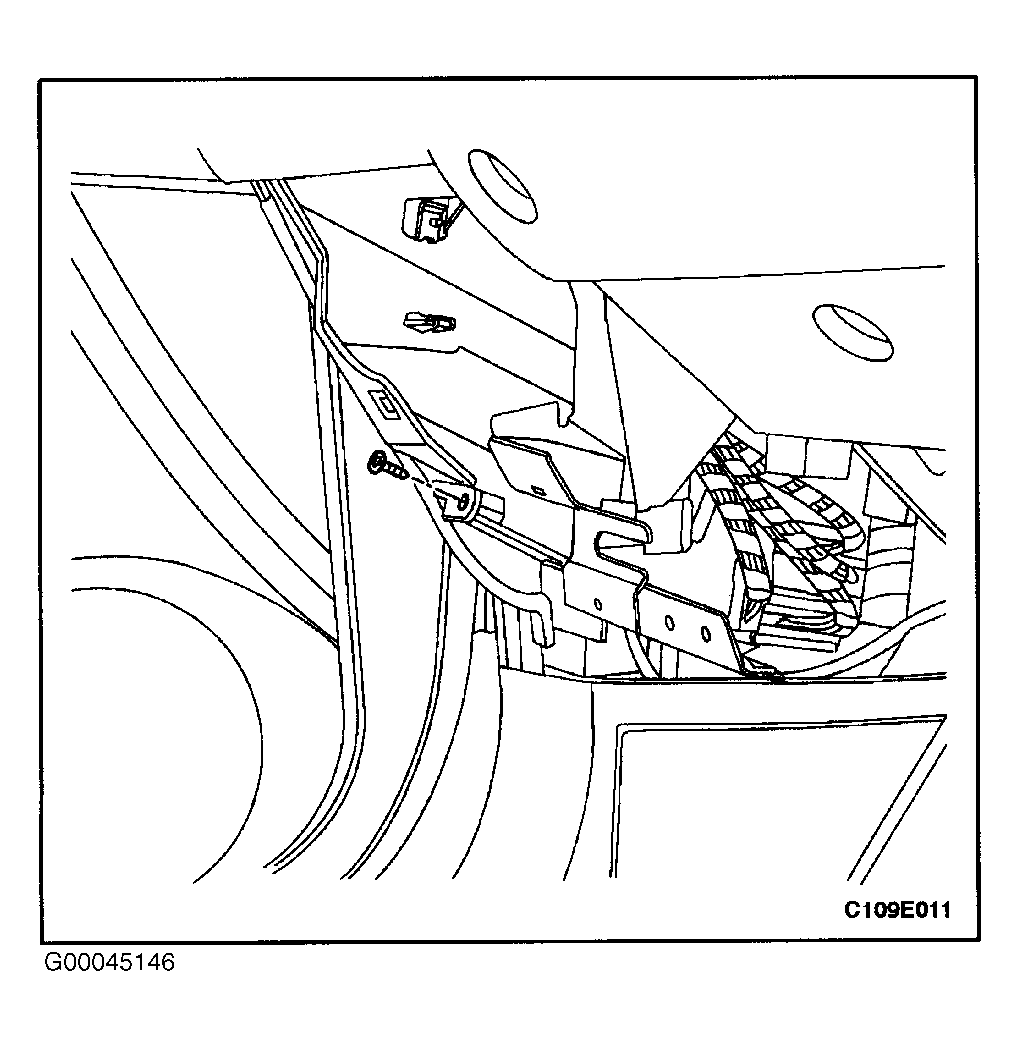

Fig 2: Instrument Panel Side Trim Cover Removal & Installation
Courtesy of DAEWOO MOTOR AMERICA, INC.
