Digital Clock Inoperative

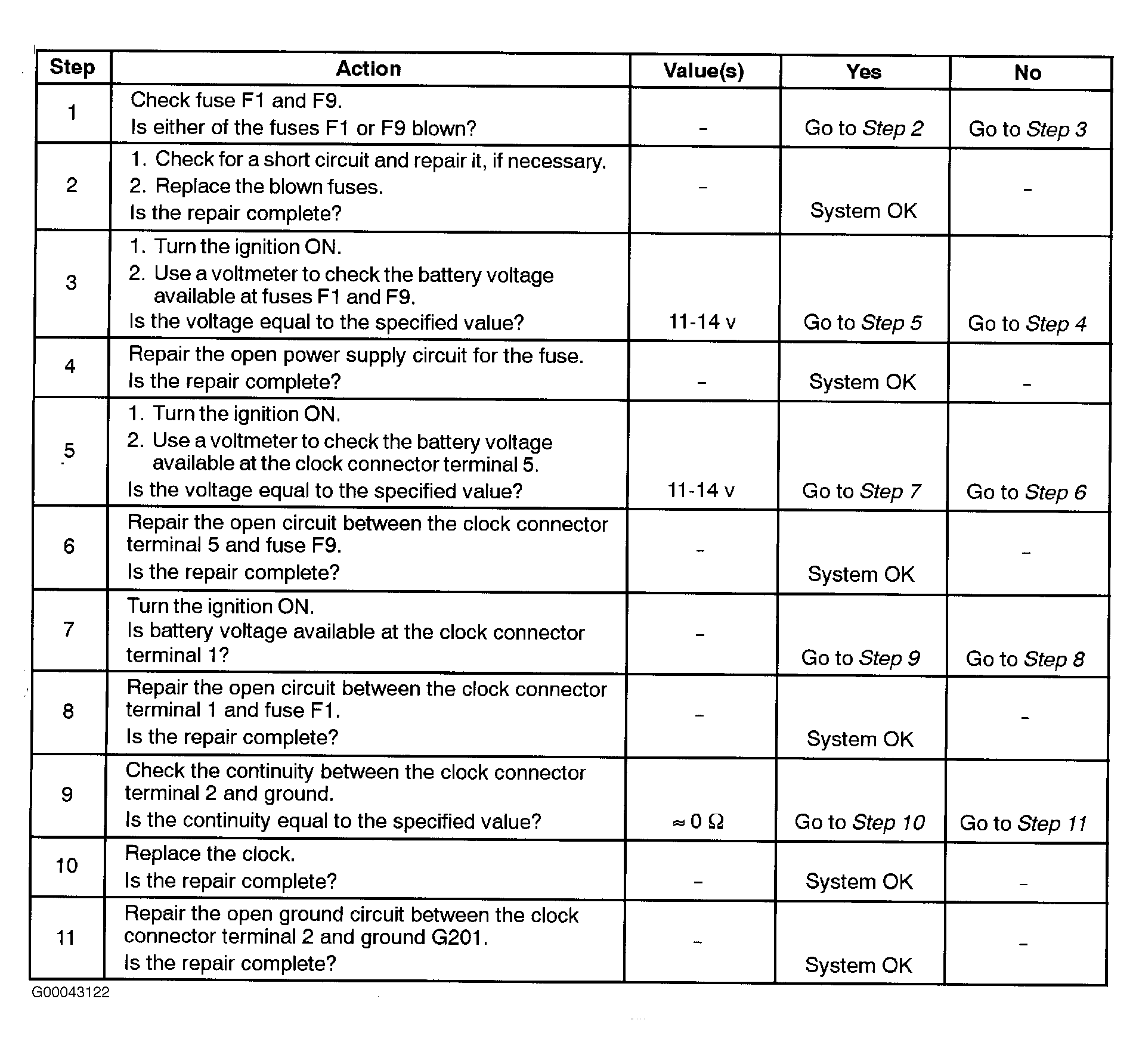

Fig 1: Digital Clock Inoperative
Courtesy of DAEWOO MOTOR AMERICA, INC.

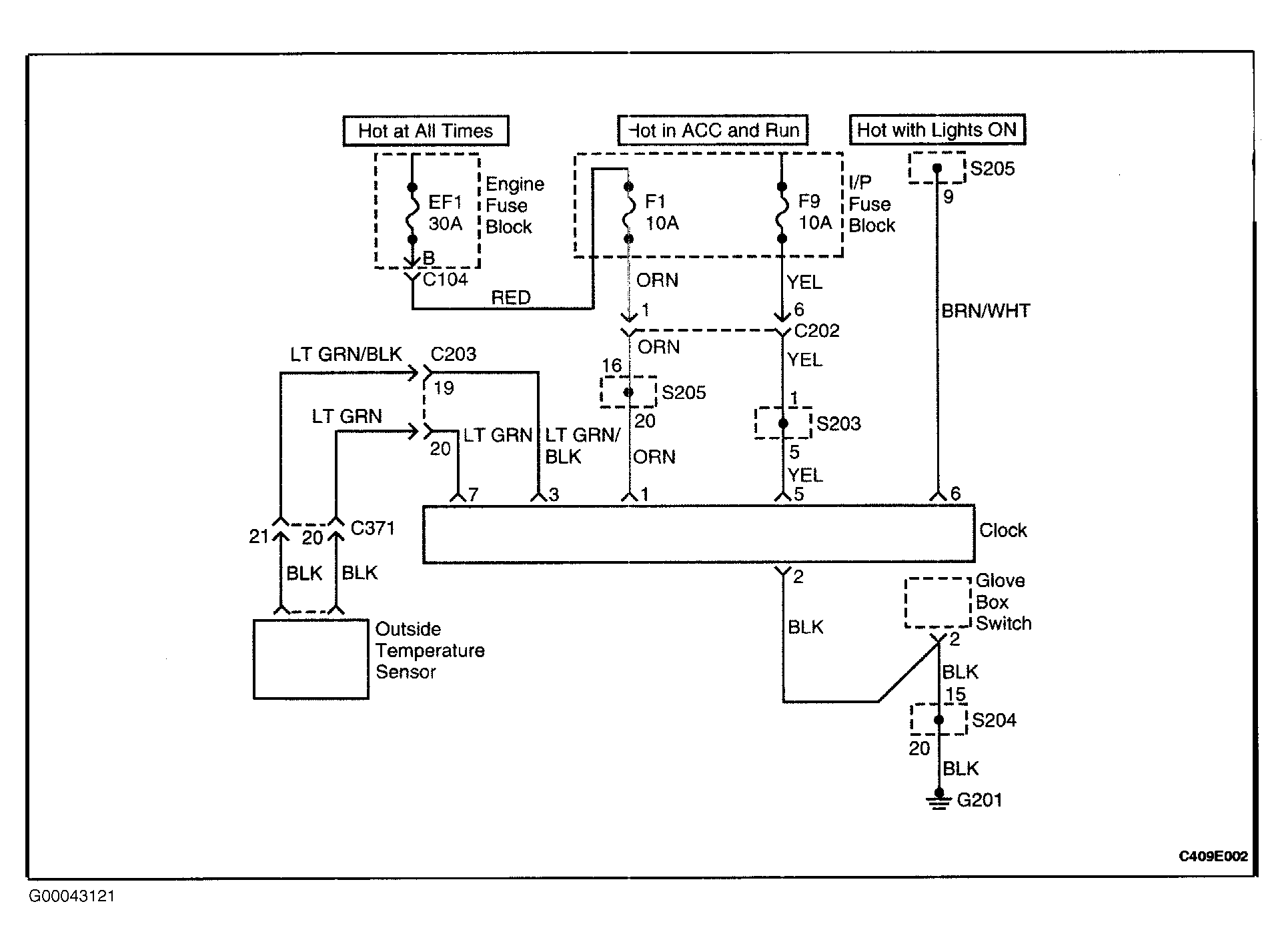

Fig 2: Digital Clock Wiring Diagram
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
