Chime Module: Notes

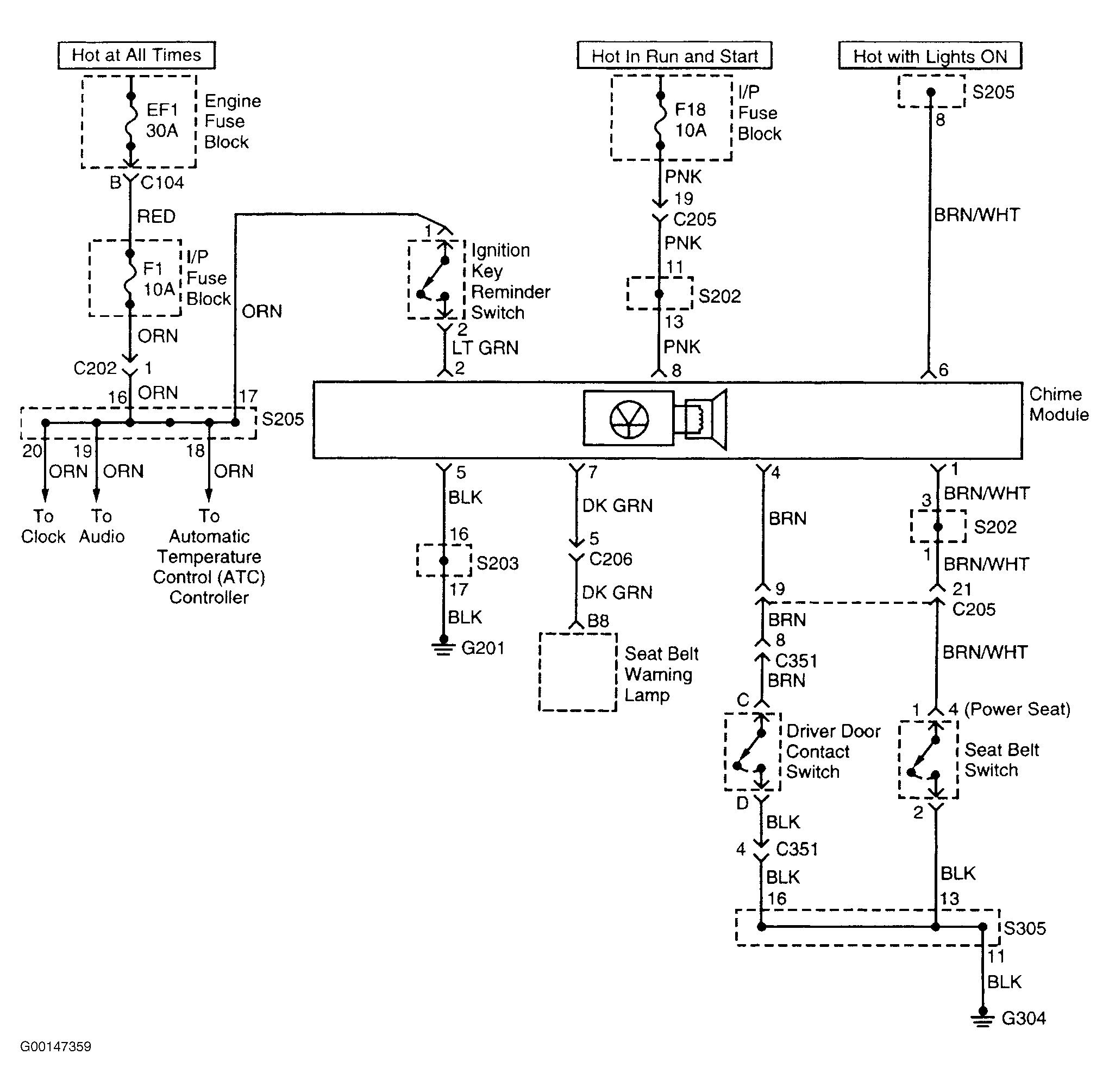

Fig 1: Chime Module Wiring Diagram (1999)
Courtesy of DAEWOO MOTOR AMERICA, INC.

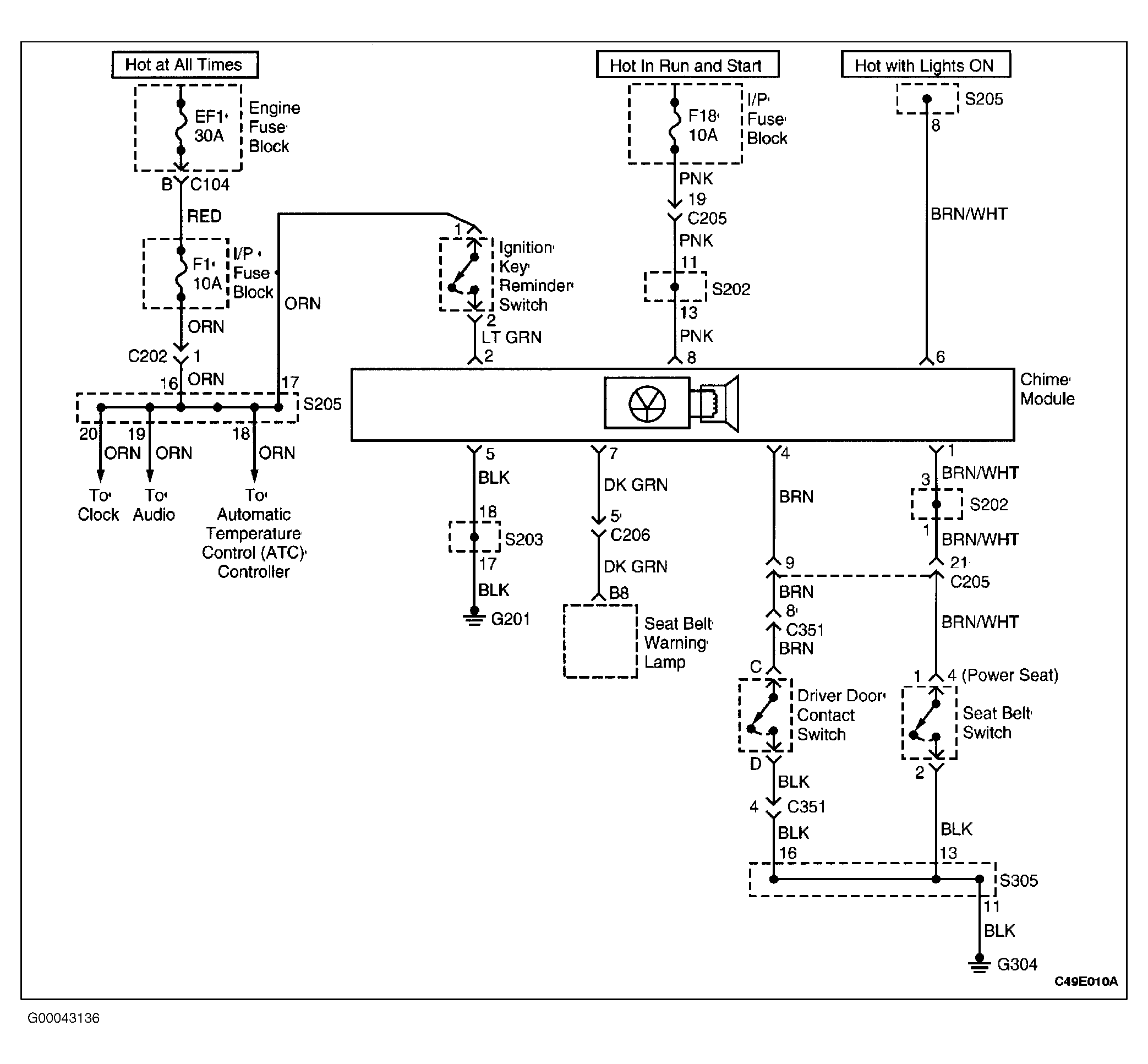

Fig 2: Chime Module Wiring Diagram (2000-01)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
