No Chime With Seat Belt Unfastened & Key In Ignition Switch

NOTE: The following number(s) refer to step(s) in diagnostic table. See Fig 1 and Fig 2 .

• 7) The chime module is under instrument panel on left side.
• 10) The wires at ignition switch may be RED and BLK, but they connect to ORN and LT GRN at the two-pin connector.

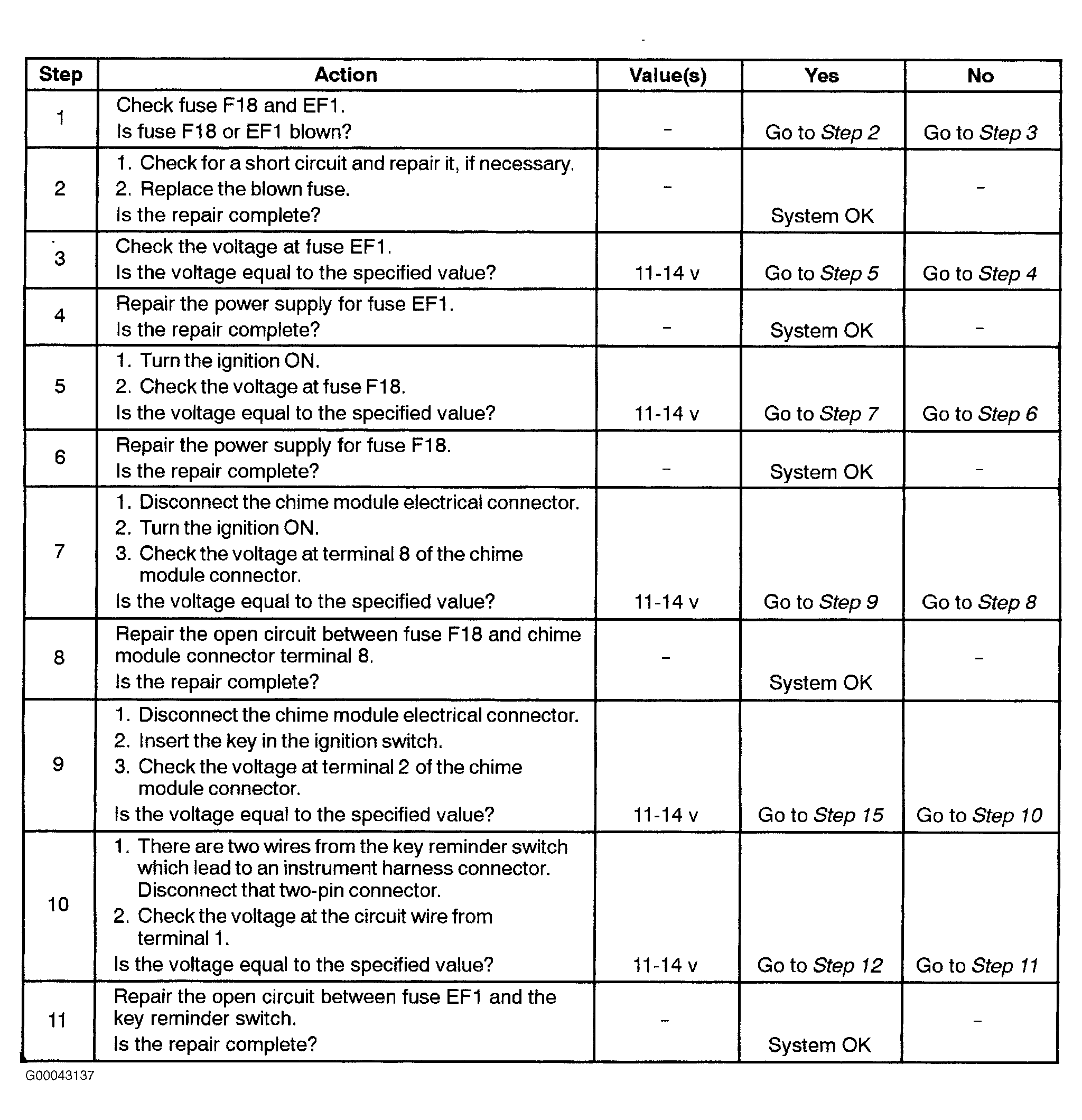

Fig 1: No Chime With Seat Belt Unfastened & Key In Ignition Switch (1 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.

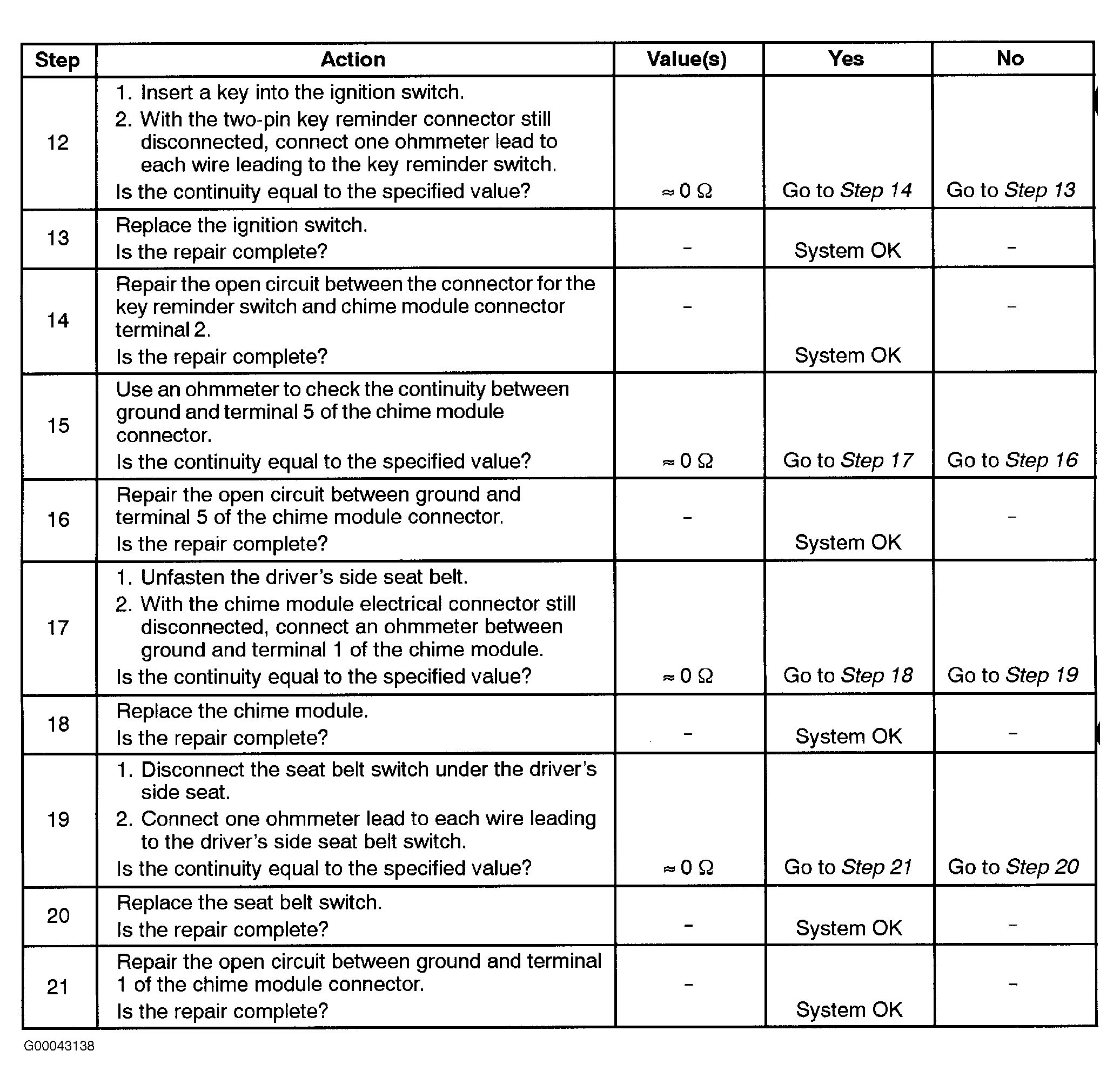

Fig 2: No Chime With Seat Belt Unfastened & Key In Ignition Switch (2 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.
