No Chime With Door Open & Key In Ignition Switch

NOTE: The following number(s) refer to step(s) in the diagnostic tables. See Fig 1 and Fig 2 :

1. 7) The chime module is under instrument panel on left side.
2. 10) The wires at ignition switch may be RED and BLK, but they connect to ORN and LT GRN at the two-pin connector.

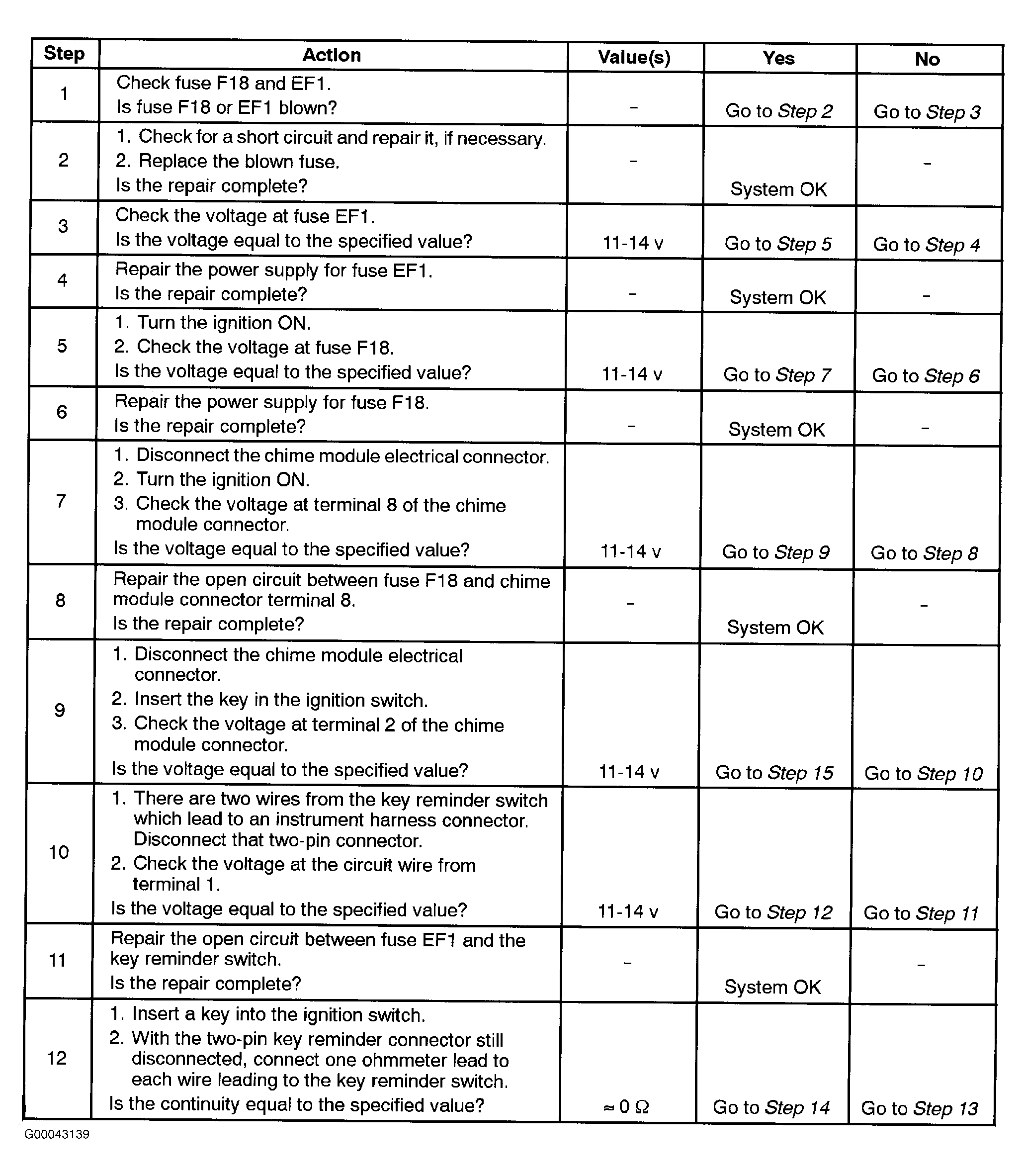

Fig 1: No Chime With Door Open & Key In Ignition Switch (1 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.

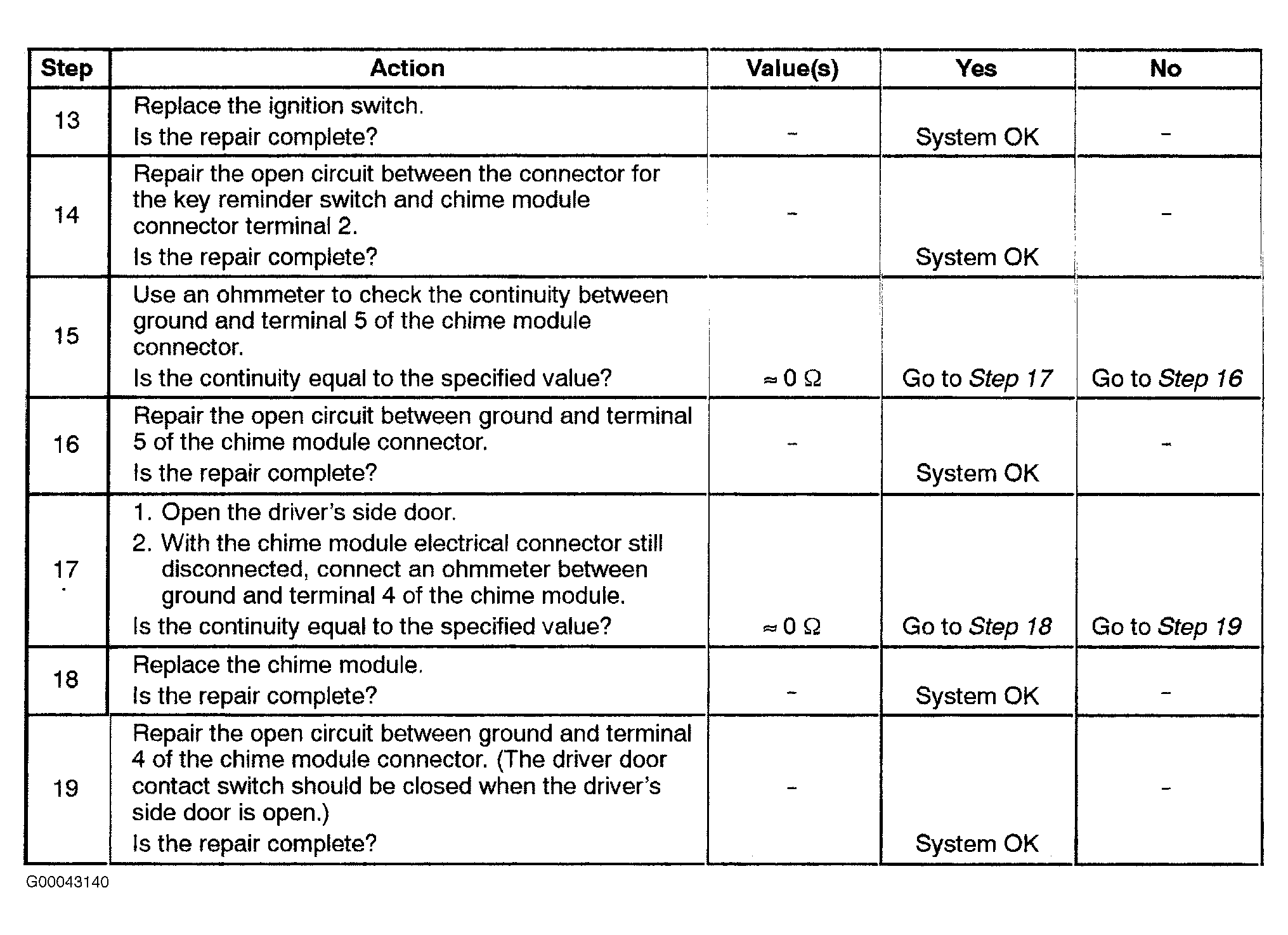

Fig 2: No Chime With Door Open & Key In Ignition Switch (2 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.
