Speedometer Inoperative

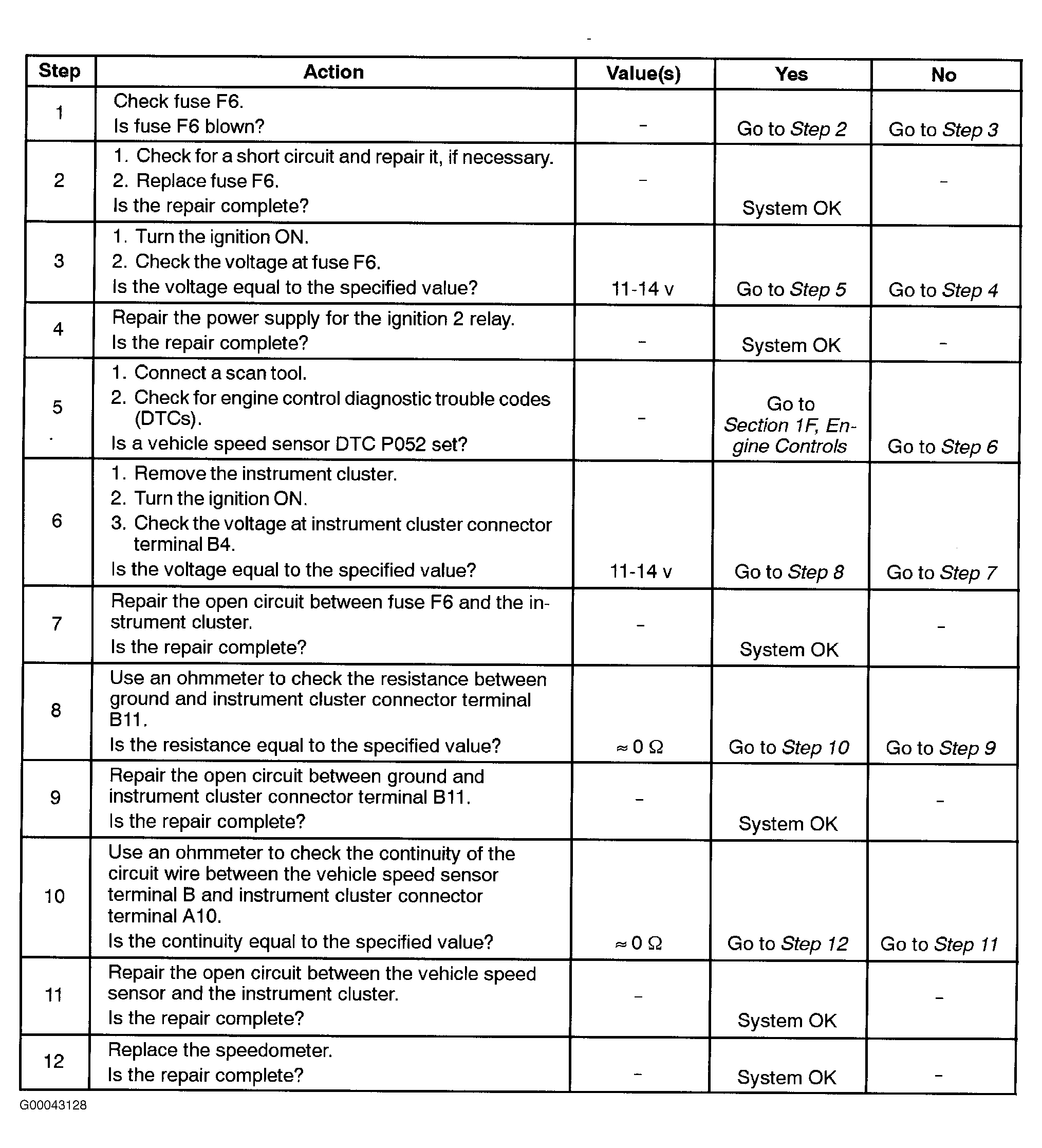

Fig 1: Speedometer Inoperative
Courtesy of DAEWOO MOTOR AMERICA, INC.

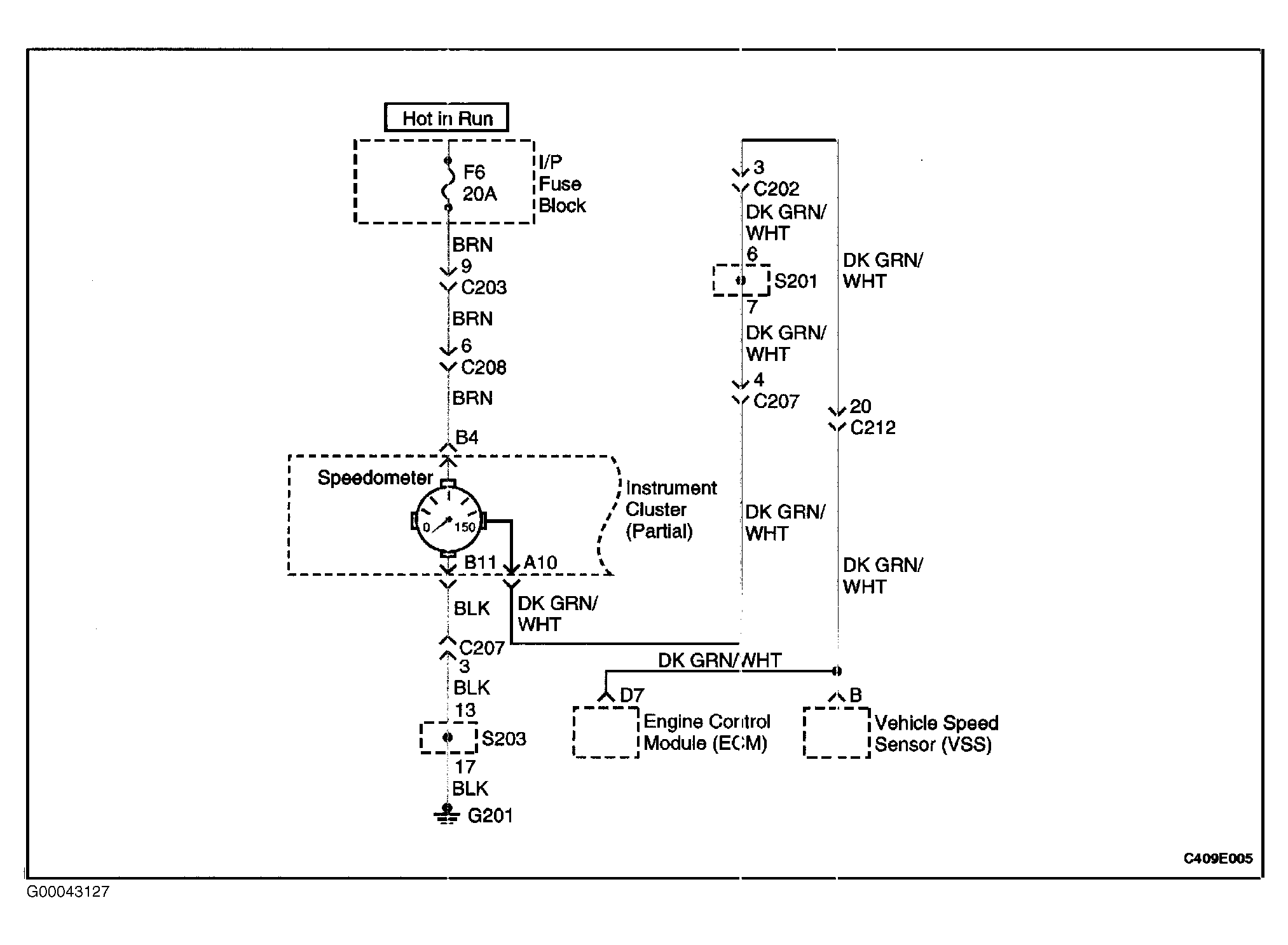

Fig 2: Speedometer Wiring Diagram
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
