Hub & Bearing Assembly: Removal

  1. Raise and suitably support vehicle. Remove wheel. Remove rear brake caliper and rear brake rotor.

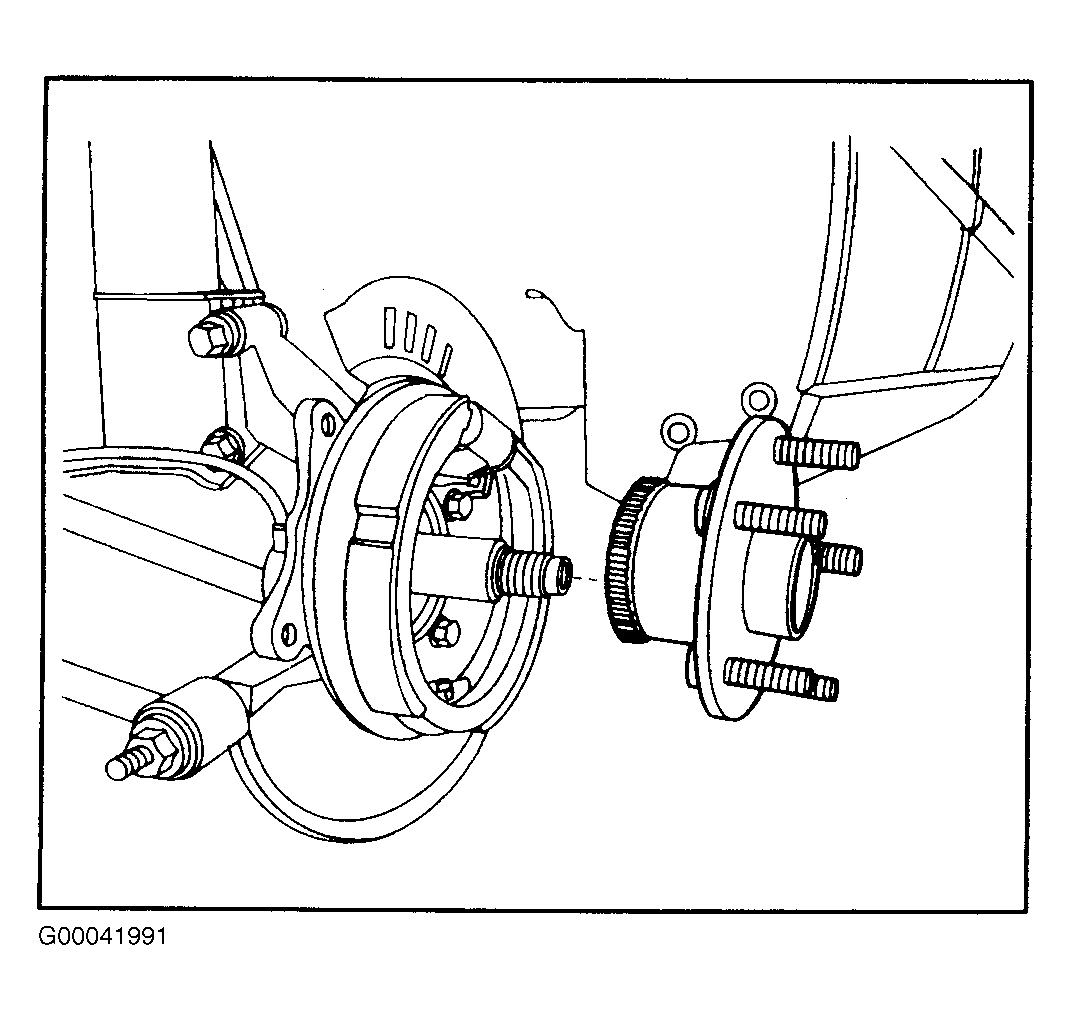

  2. Remove dust cap and straighten indent in caulking nut with a drift and a hammer. Remove caulking nut. Remove hub and bearing assembly. See Figure .
