Hub & Bearing: Removal

  1. Remove drive axle from front wheel hub. Remove wheel hub with support bridge (J-37105-40), hub adapter (J-37105-B-3.), hex nut (500-20), and forcing screw (J-36661-2). Remove outer snap ring. See Fig 2 .
  2. Remove wheel bearing with support bridge (J-37105-40), bearing adapter (J-37105-B-2), hex-nut (500-20), end forcing screw (J-3666-2). Clean bore of knuckle.

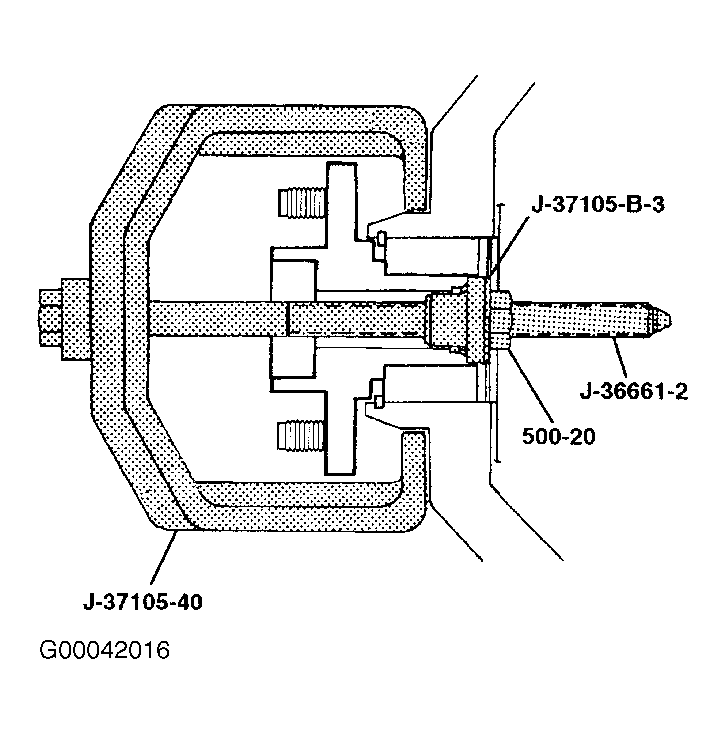

Fig 1: Removing Wheel Hub
G00042016Courtesy of DAEWOO MOTOR AMERICA, INC.

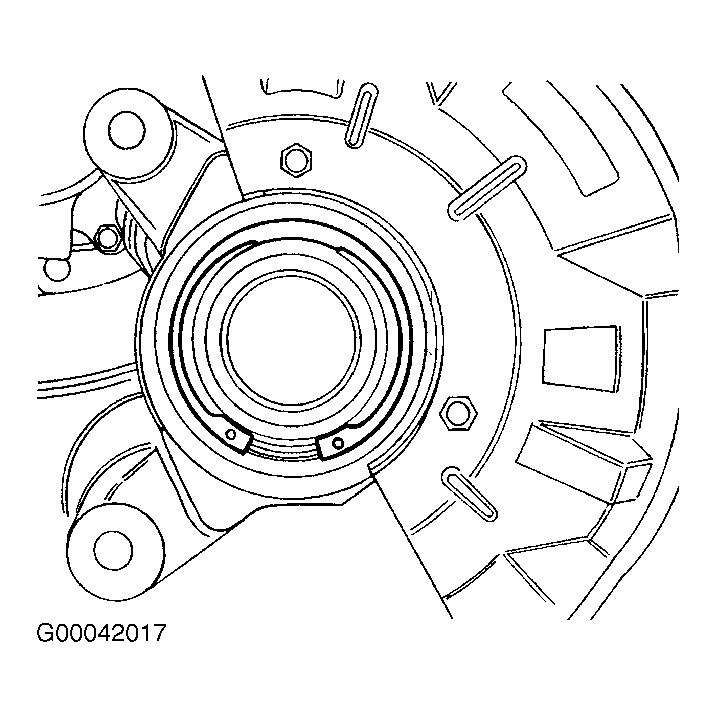

Fig 2: Hub Bearing Snap Ring
G00042017Courtesy of DAEWOO MOTOR AMERICA, INC.
Fig 3: Installing Wheel Hub
G00042018Courtesy of DAEWOO MOTOR AMERICA, INC.
