Diagnostic Aids

It is very important to perform a thorough inspection of wiring and connectors. Failure to do so may result in misdiagnosis, causing parts replacement with a reappearance of malfunction.

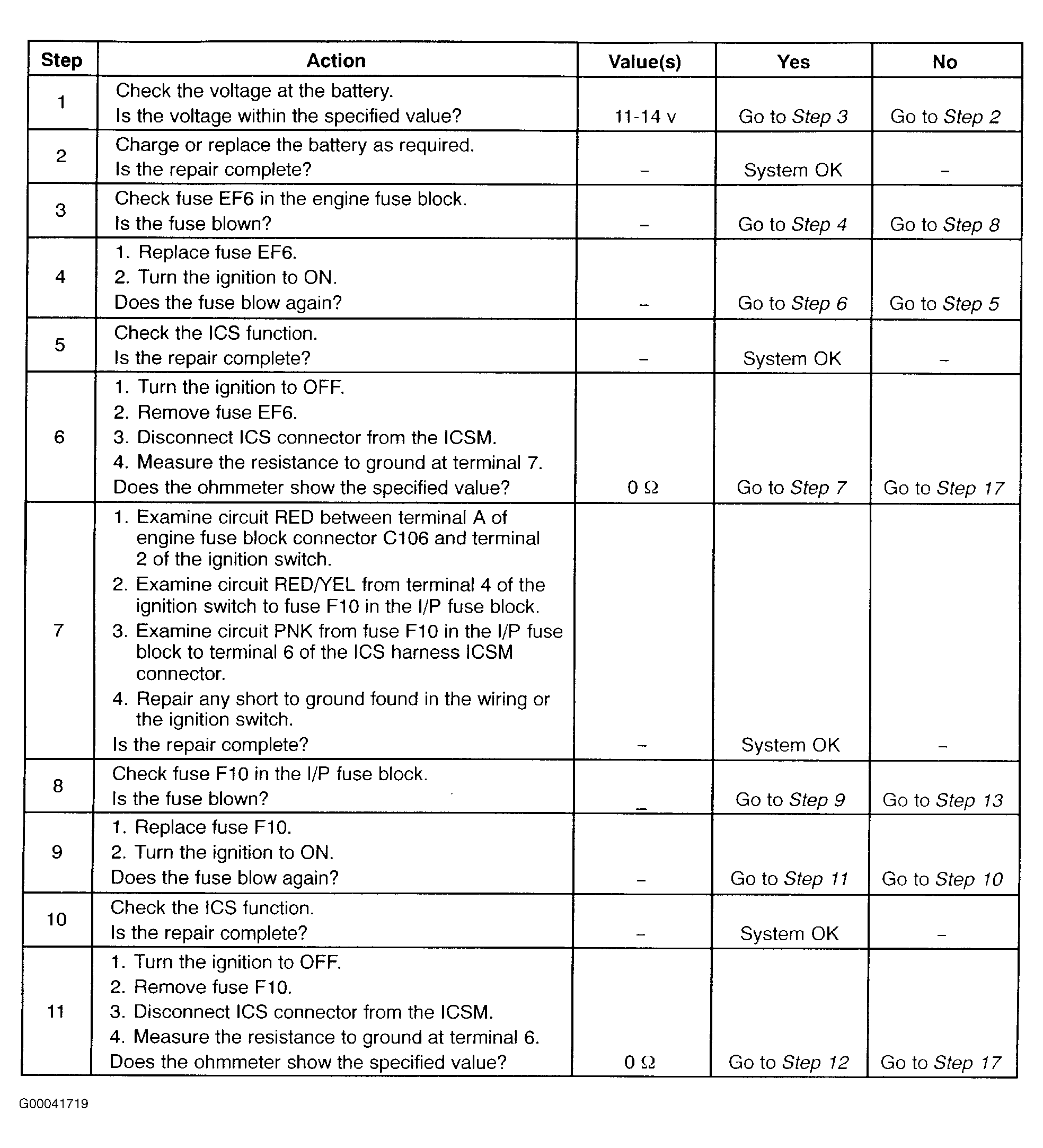

Fig 1: Power Supply To Control Module, No DTC's Stored - Steps 1-11 (1 Of 2)

Courtesy of DAEWOO

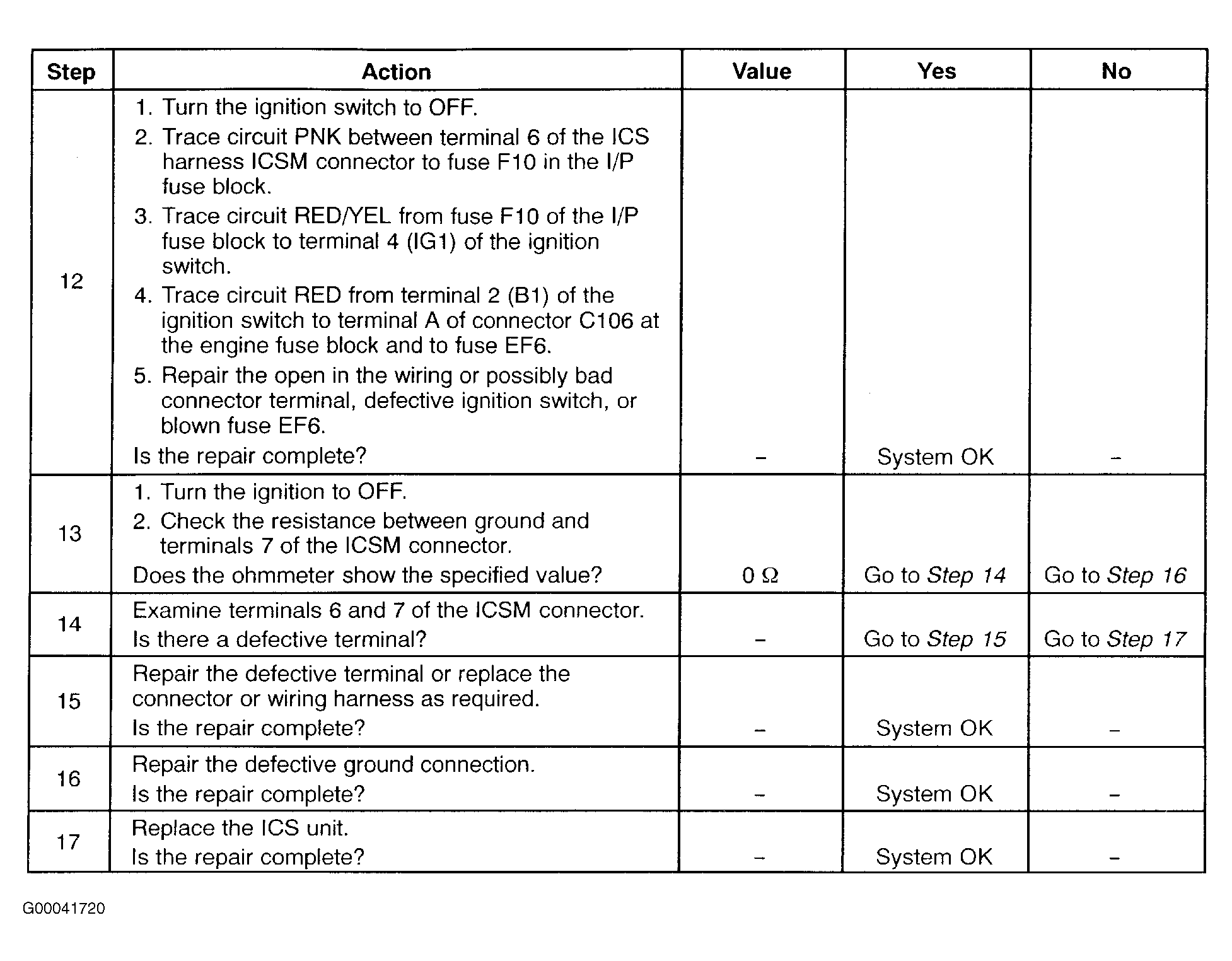

Fig 2: Power Supply To Control Module, No DTC's Stored - Steps 12-17 (2 Of 2)

Courtesy of DAEWOO
