Removal & Installation

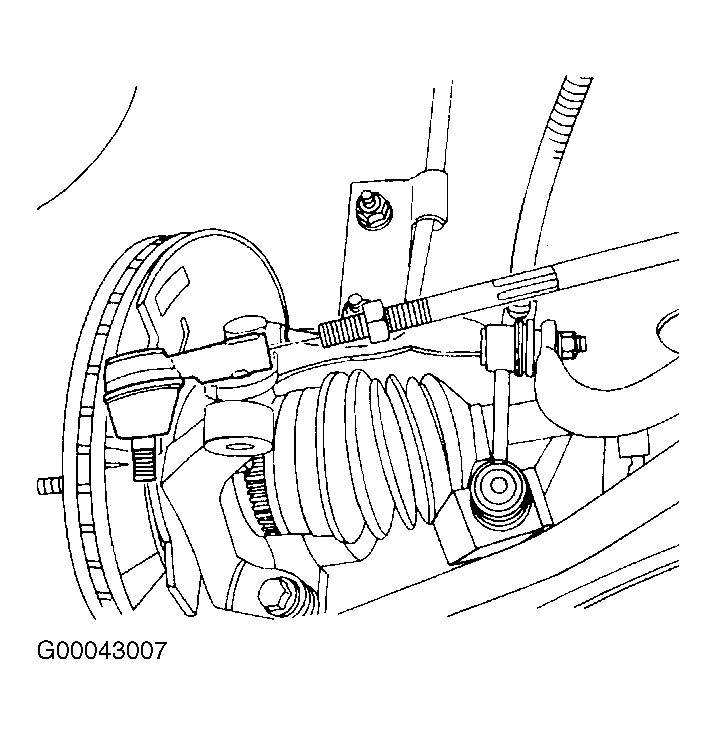

- Remove wheel. Mark threads on inner tie rod to aid in repositioning adjusting nut. Remove outer tie rod nut and disconnect outer tie rod from steering knuckle using ball joint remover (KM-507-B). Loosen outer tie rod adjusting nut and remove outer tie rod by twisting it off inner tie rod. See Fig 1.
- To install, reposition adjusting nut to marks on inner tie rod. Install outer tie rod by twisting it onto inner tie rod. Connect outer tie rod to steering knuckle. Perform a front toe adjustment. Tighten adjusting nut. Tighten outer tie rod adjusting nut to 64 N.m (47 ft. lbs.). Install outer tie rod nut. Tighten outer tie rod nut to 50 N.m (37 ft. lbs.). Install wheel.
Courtesy of DAEWOO MOTOR AMERICA, INC.
