Symptom Diagnosis (Speed Sensitive Steering): Wiring Diagram

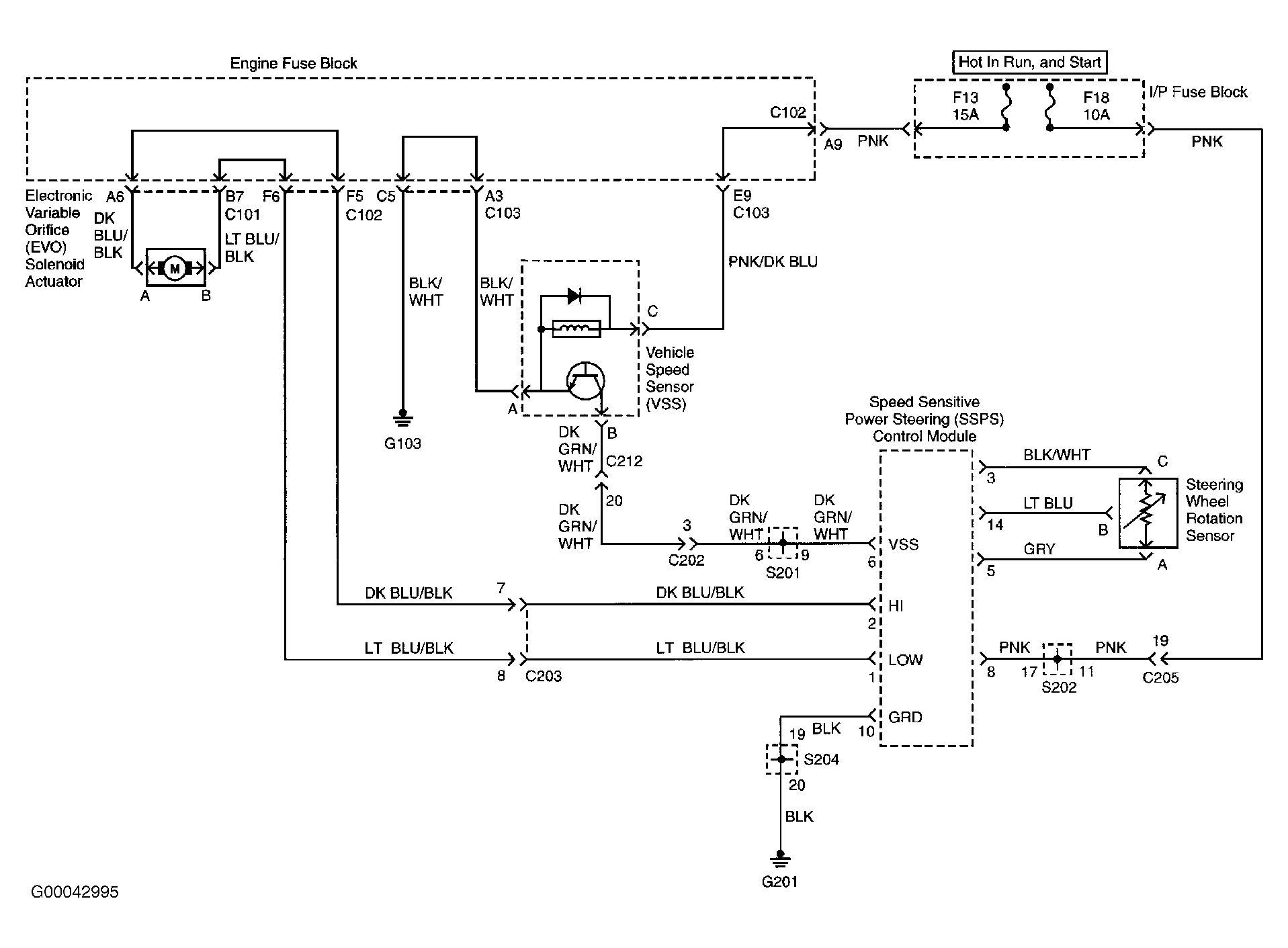

Fig 1: Speed Sensitive Power Steering System Wiring Diagram

G00042995

Courtesy of DAEWOO MOTOR AMERICA, INC.
