Intermediate Shaft & Dash Seal: Removal

Turn steering wheel until it is horizontal, with spokes pointing down. This is straight-ahead position. Make a mark on stub shaft housing that lines up with a mark on intermediate shaft lower universal joint. This mark will be used for proper alignment during installation. Remove lower pinch bolt from universal joint on intermediate shaft. See Fig 1 and Fig 2 .
Turn steering wheel so that upper pinch bolt is accessible. Remove upper pinch bolt from universal joint on intermediate shaft. Remove nuts from dash seal retaining ring and remove dash seal retaining ring. Remove coupling from power steering gear and pull intermediate shaft out of engine compartment.

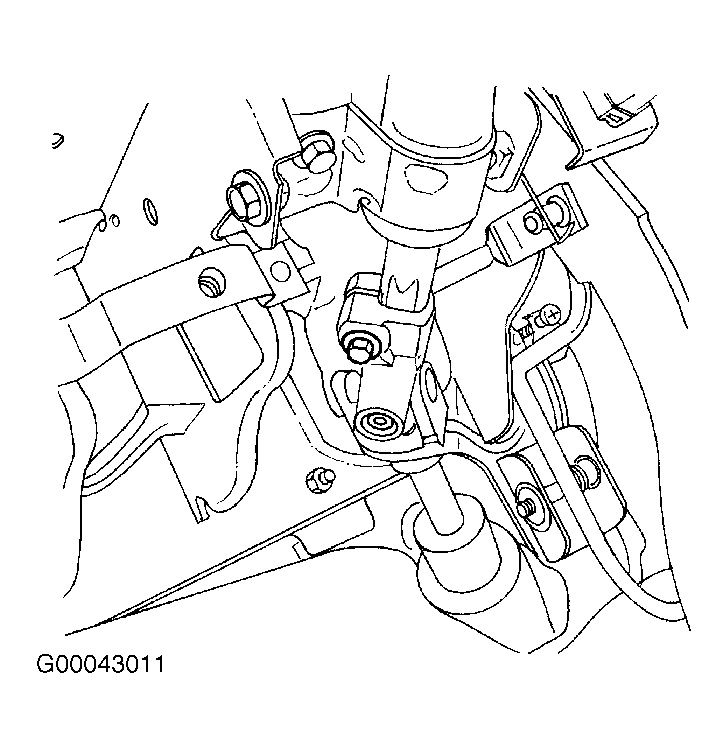

Fig 1: Intermediate Shaft & Dash Seal (1 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.

Fig 2: Intermediate Shaft & Dash Seal (2 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.
