Symptom Diagnosis (Power Steering Pump)

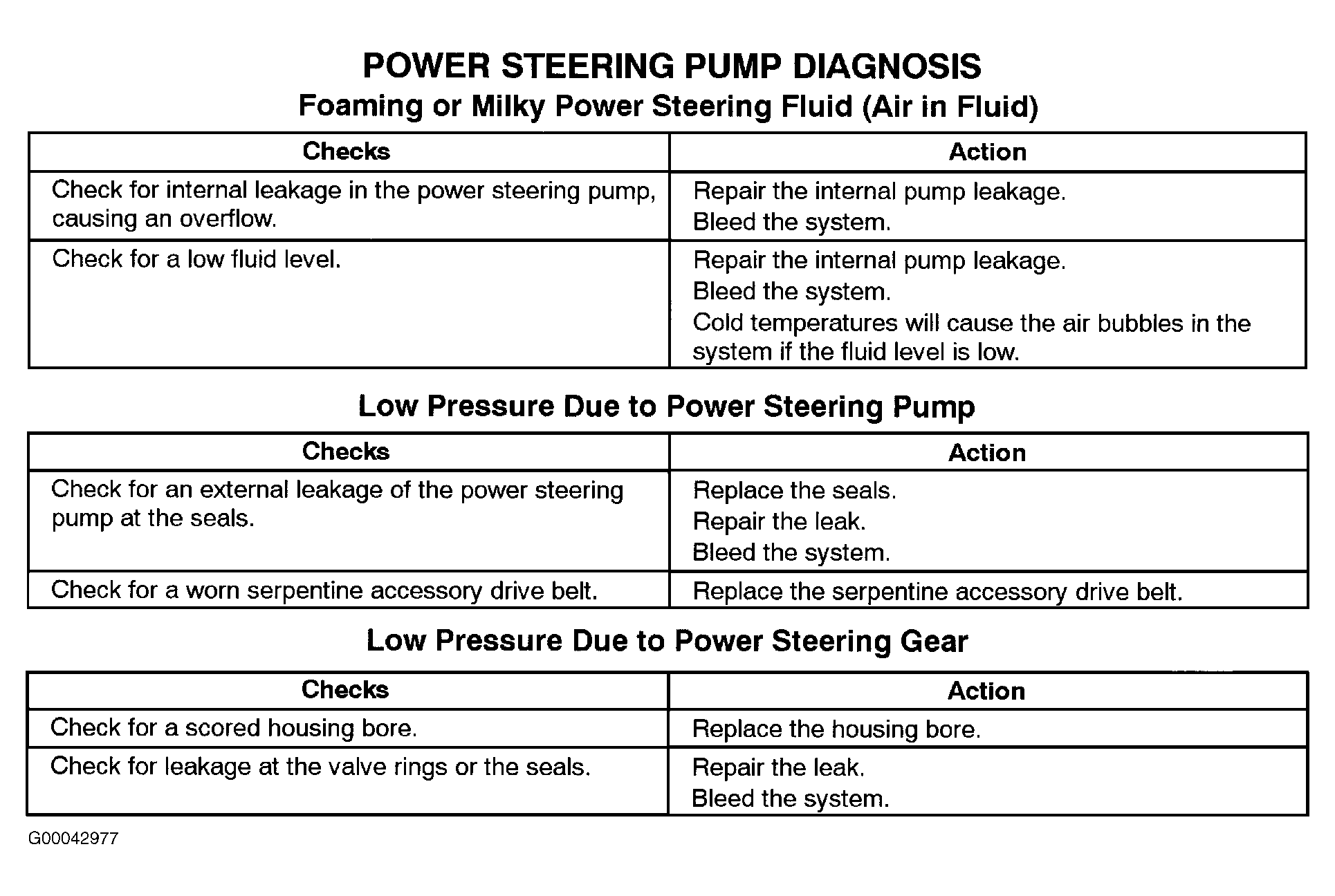

Fig 1: Power Steering Pump Symptoms Diagnosis (1 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.

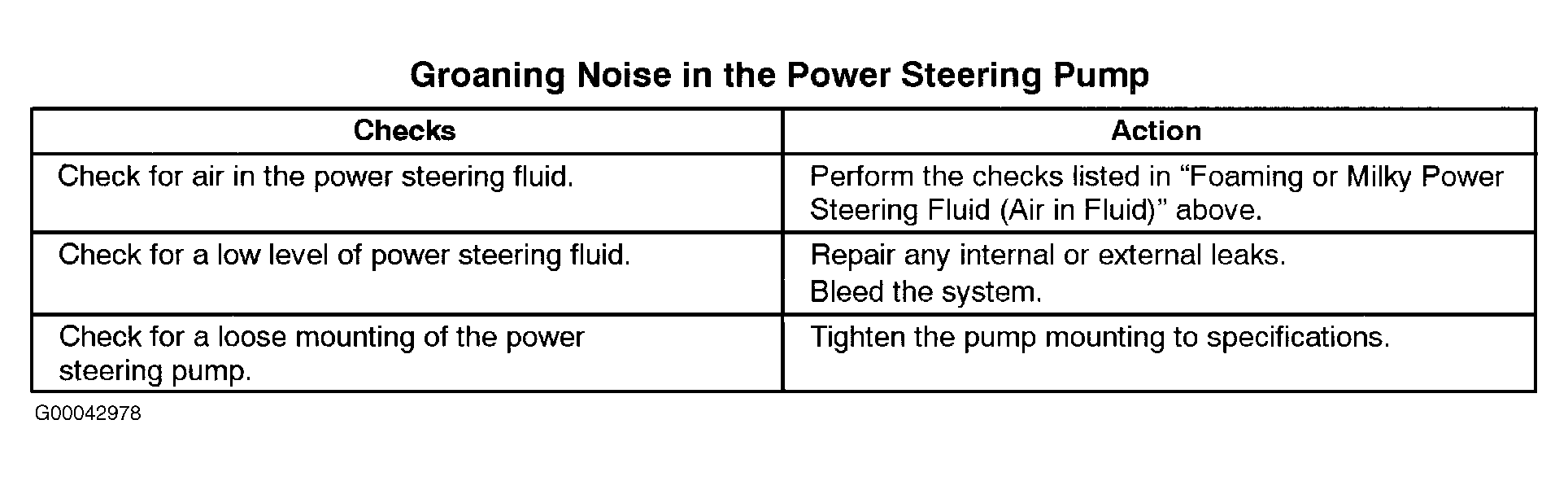

Fig 2: Power Steering Pump Symptom Diagnosis (2 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.
