Fuses & Circuit Breakers

NOTE: For additional fuse identification, see FUSES & CIRCUIT BREAKERS -- LEGANZA .

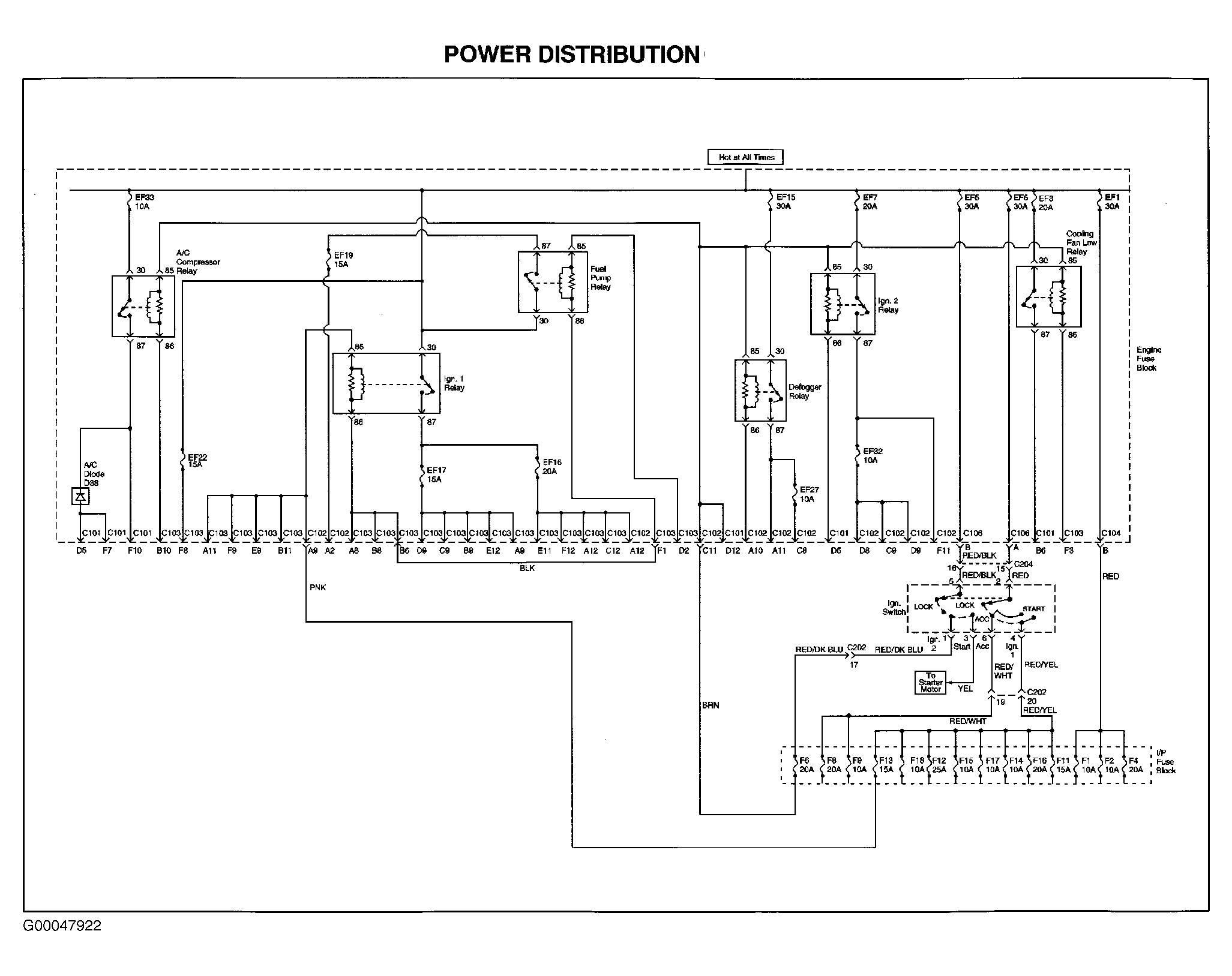

Fig 1: Power Distribution (1 Of 2)
G00047922Courtesy of DAEWOO MOTOR AMERICA, INC.

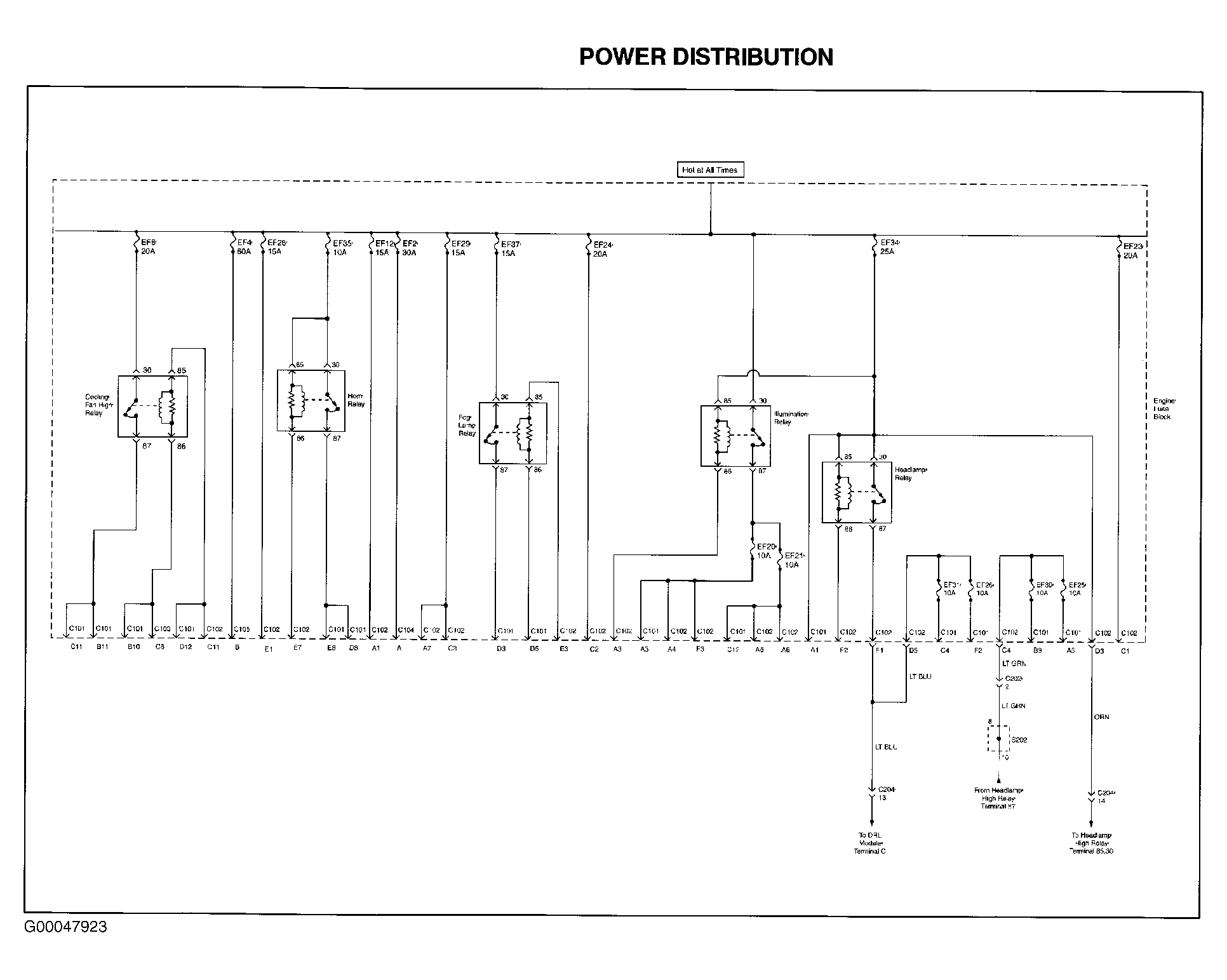

Fig 2: Power Distribution (2 Of 2)
G00047923Courtesy of DAEWOO MOTOR AMERICA, INC.
