Improper Air Delivery Or No Mode Shift
Improper Air Delivery Or No Mode Shift

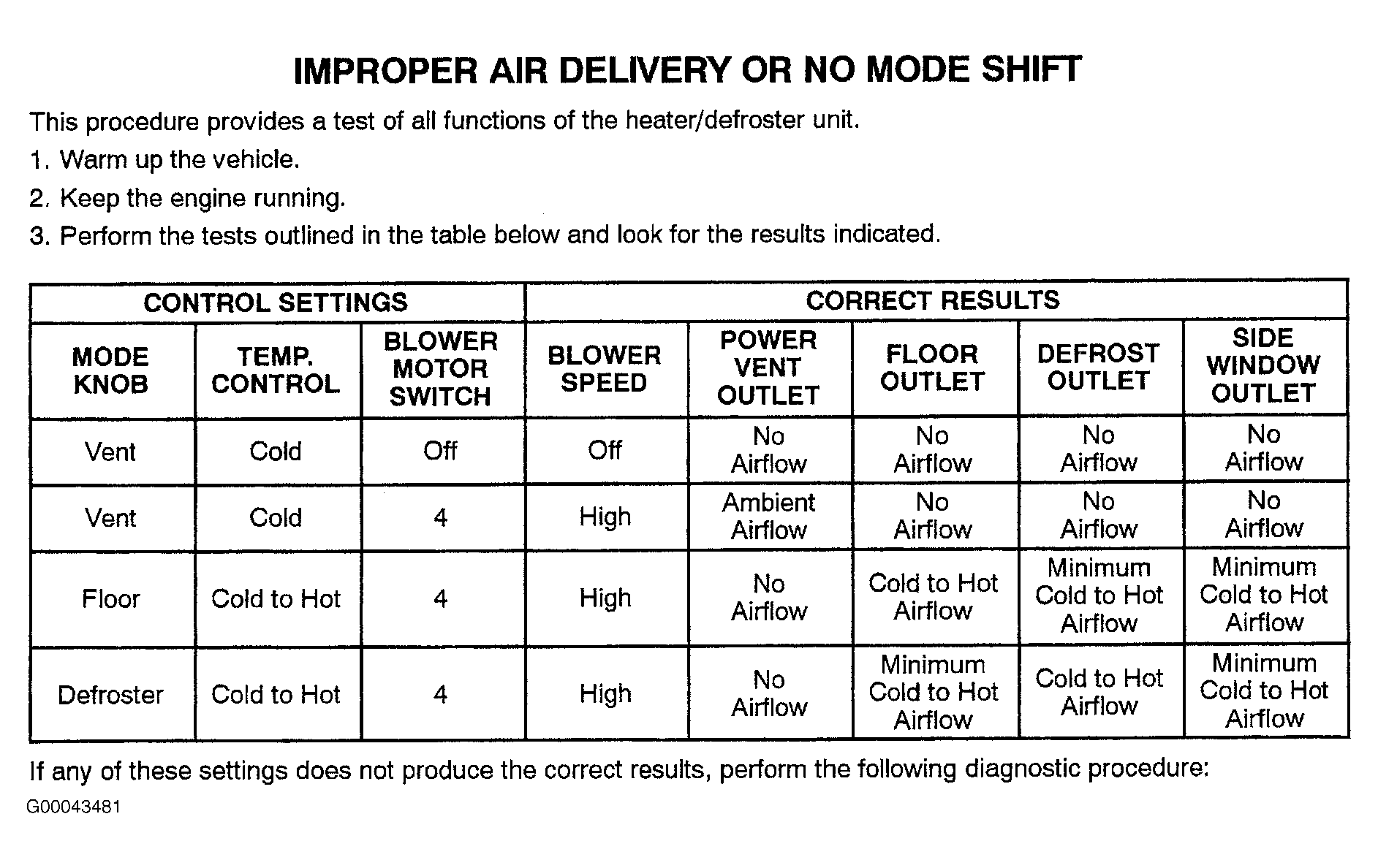

Fig 1: Improper Air Delivery Or No Mode Shift (1 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

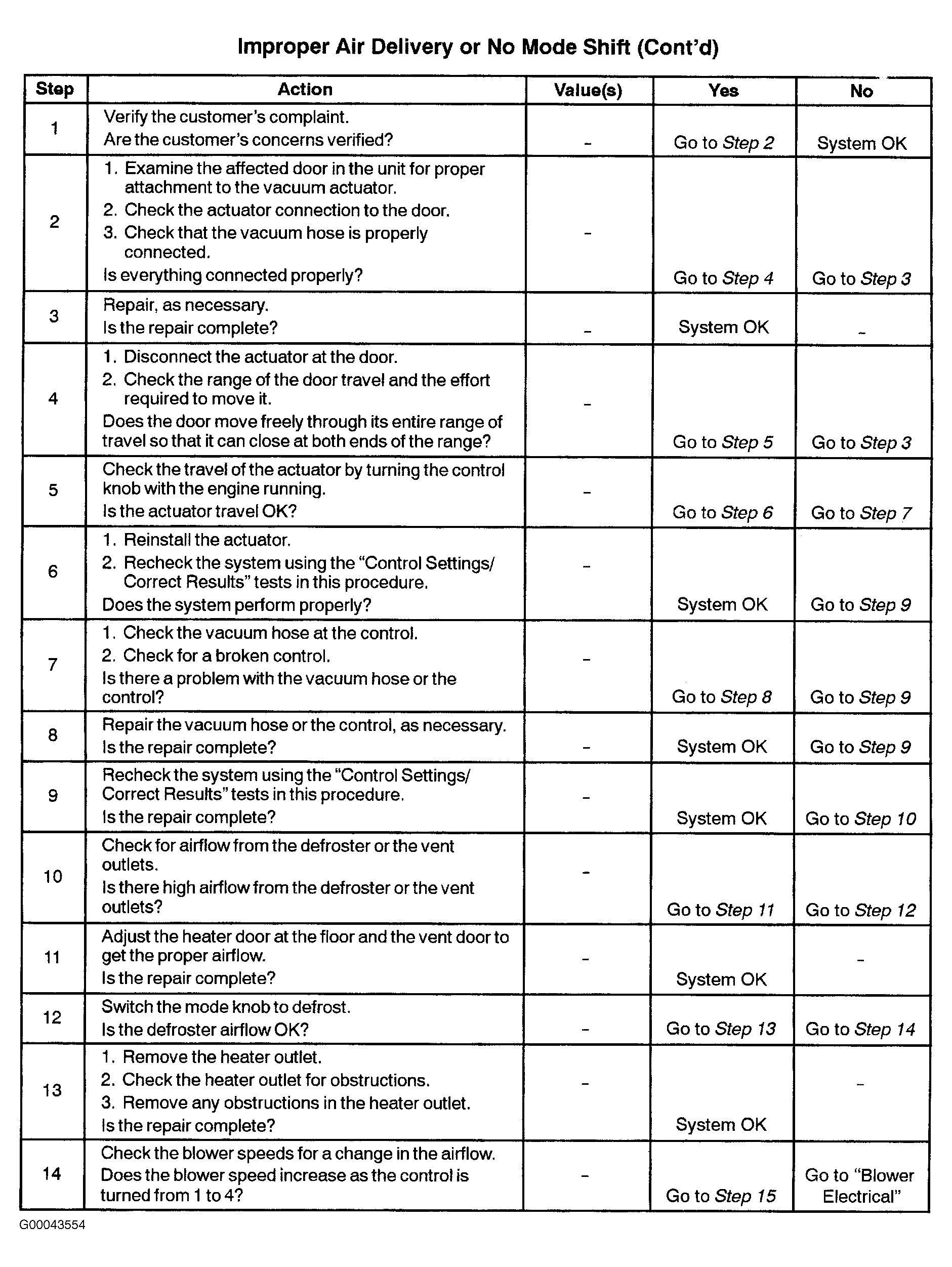

Fig 2: Improper Air Delivery Or No Mode Shift - Steps 1-14 (2 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.

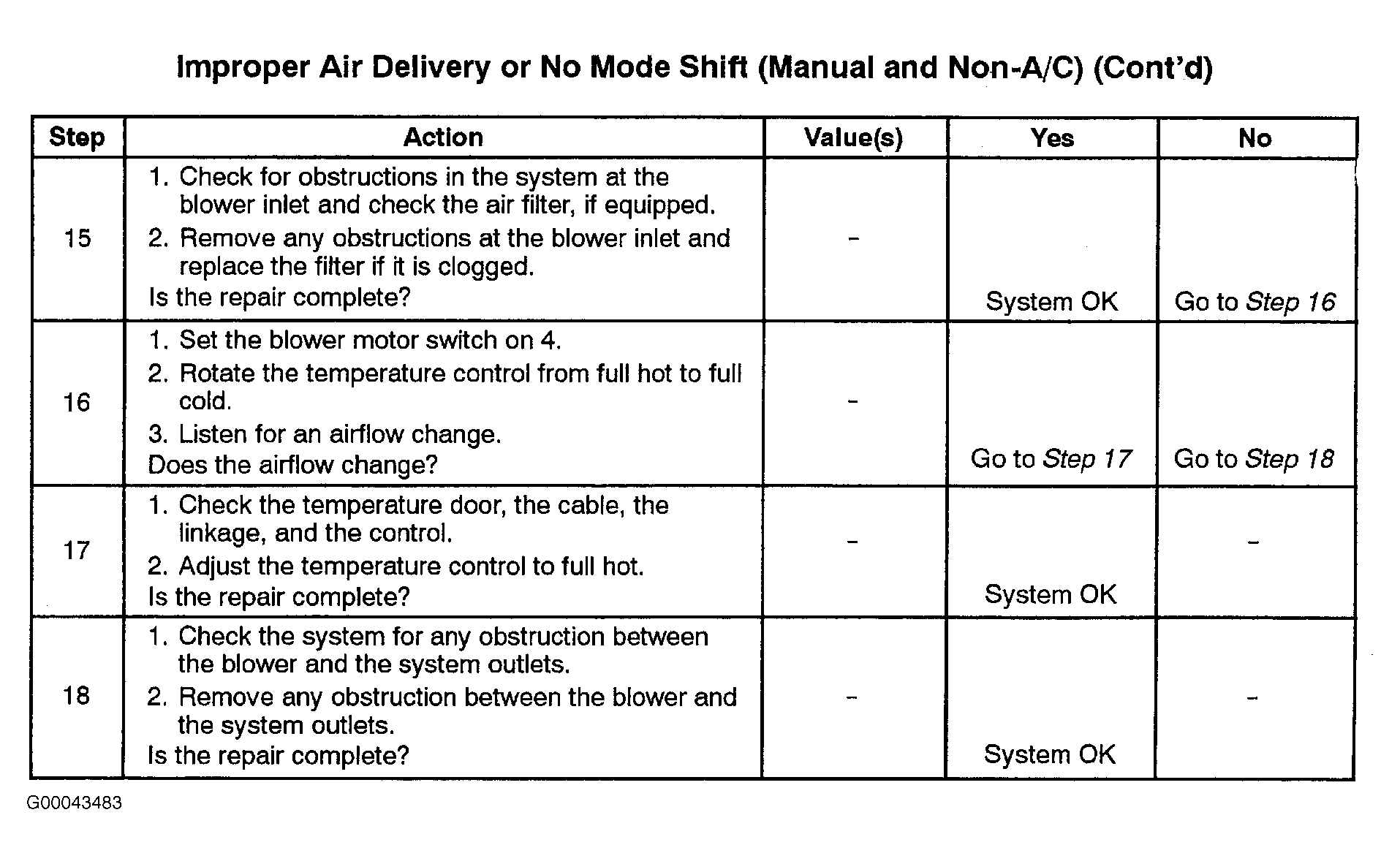

Fig 3: Improper Air Delivery Or No Mode Shift - Step 15-18 (3 Of 3)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
