Manual A/C-Heater Systems - Leganza
>>
Symptom Diagnosis & Testing
>>
Heater System
>>
Blower Noise
Blower Noise

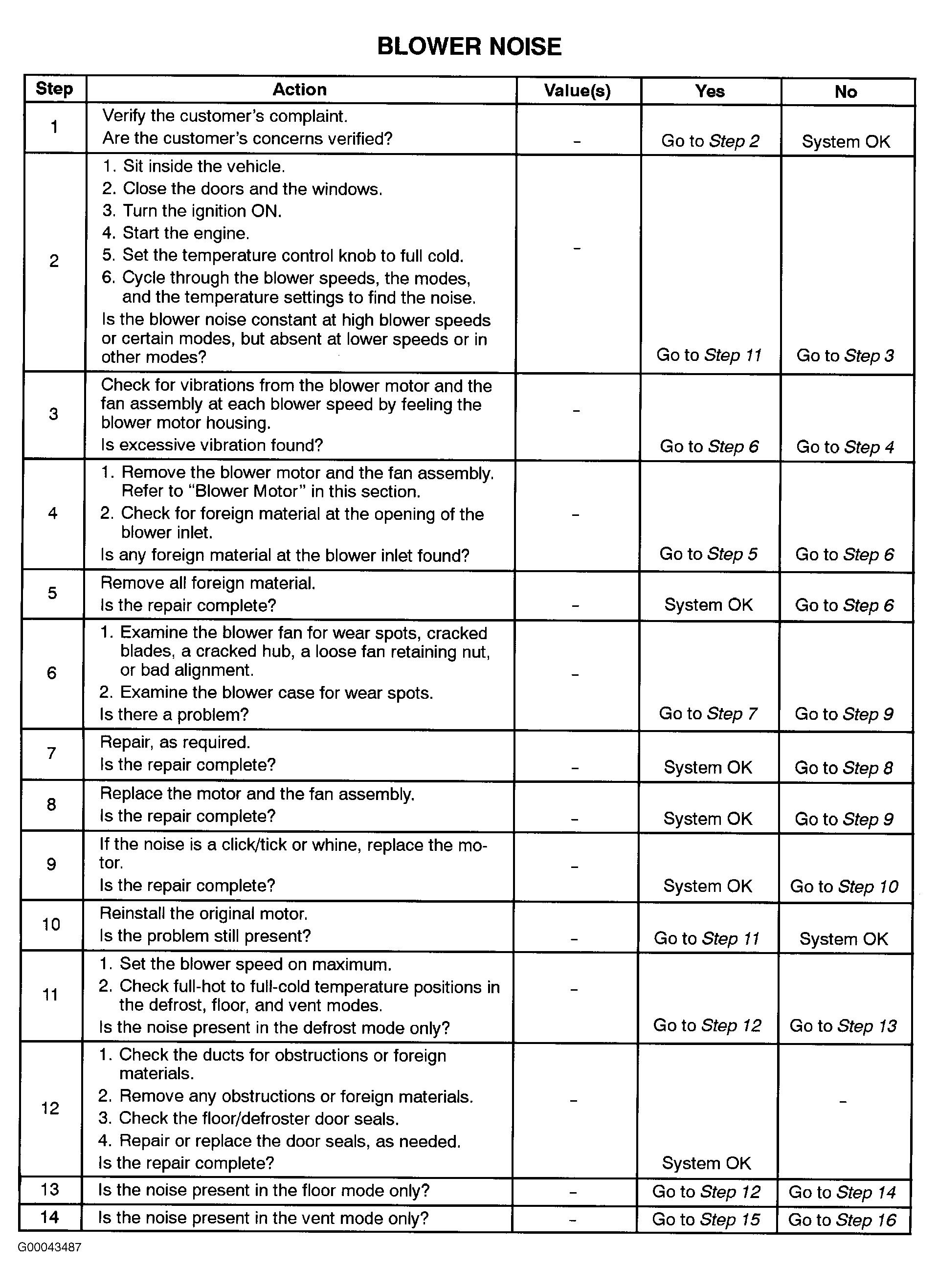

Fig 1: Blower Noise - Steps 1-14 (1 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.

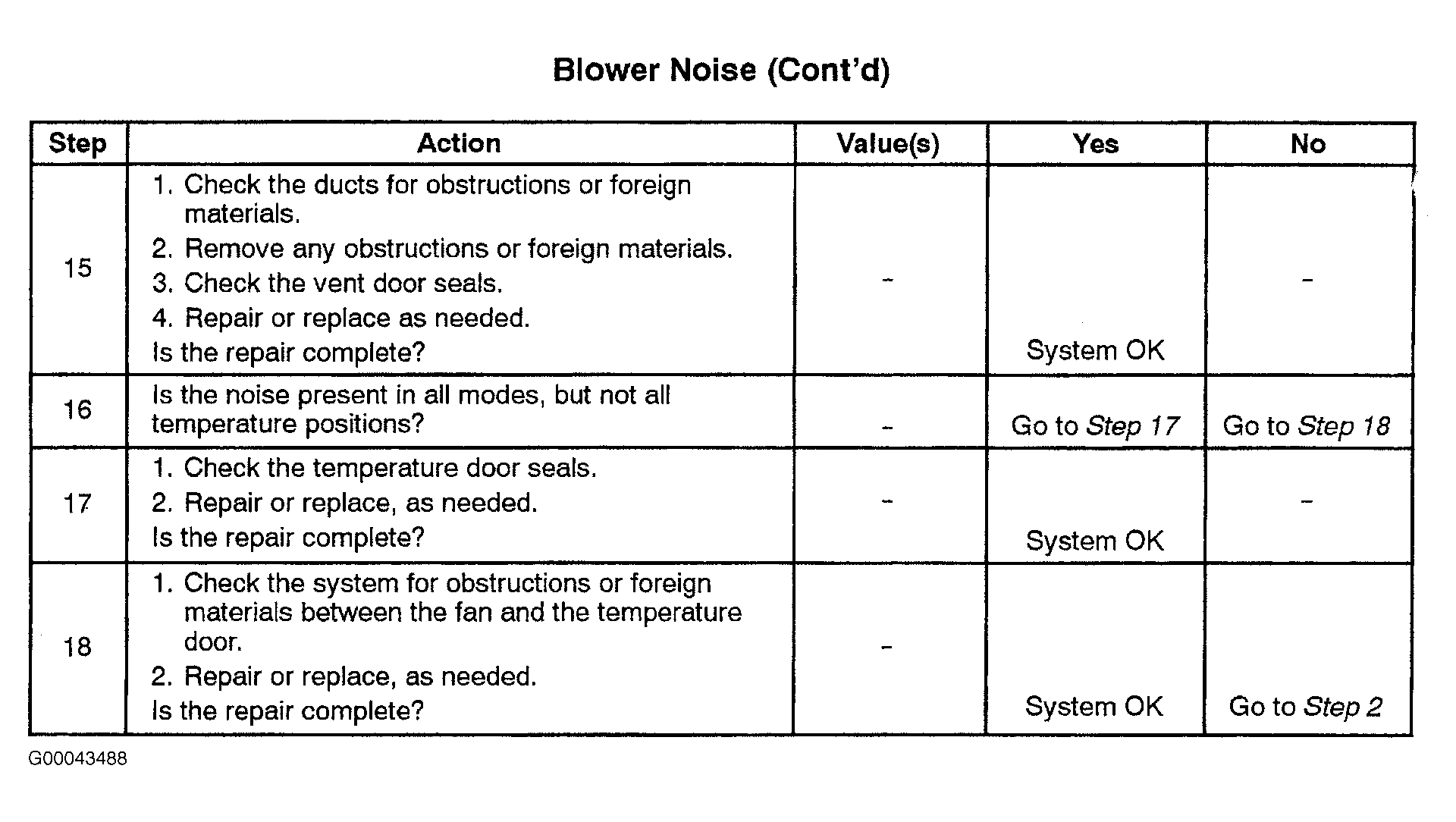

Fig 2: Blower Noise - Steps 15-18 (2 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
