Home >> Daewoo >> 2000 >> Leganza CDX >> Repair and Diagnosis (Single Page) >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Automatic HVAC Systems >> Diagnosis >> No Hot Air From Blower

No Hot Air From Blower

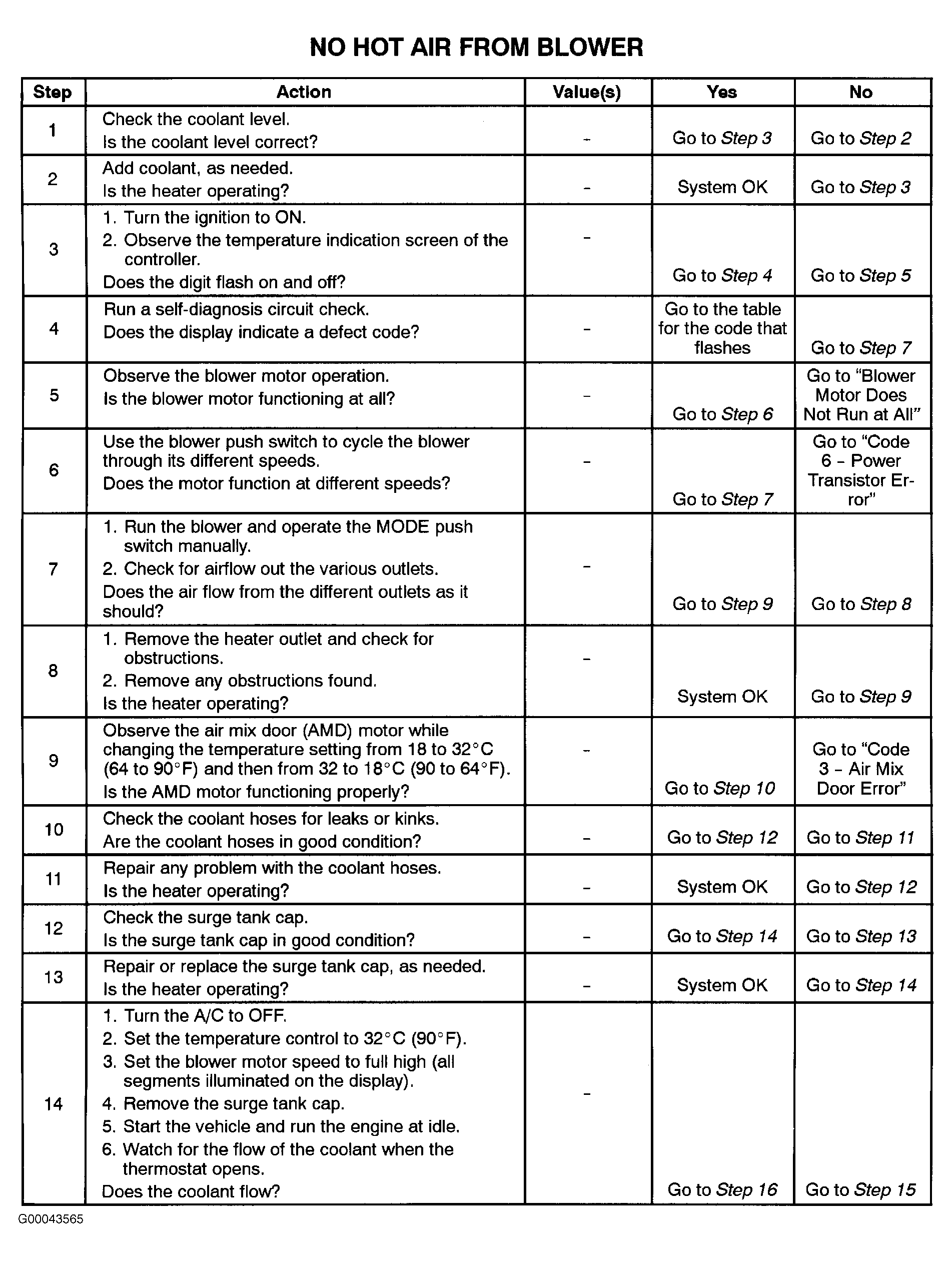

Fig 1: No Hot Air From Blower - Steps 1-14 (1 Of 2)
G00043564Courtesy of DAEWOO MOTOR AMERICA, INC.

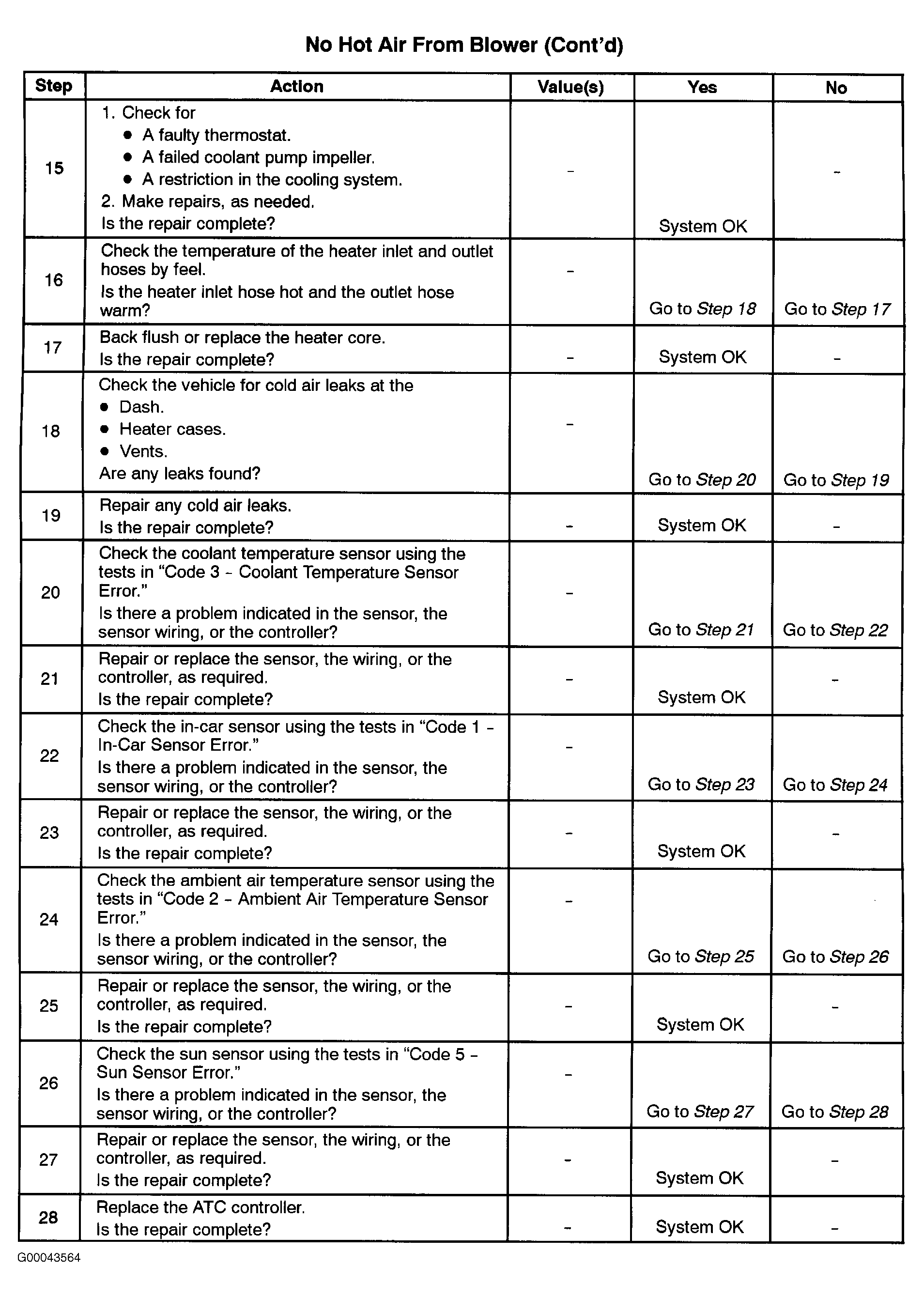

Fig 2: Not Hot Air From Blower - Steps 15-28 (2 Of 2)
G00043565Courtesy of DAEWOO MOTOR AMERICA, INC.
