Repair and Diagnosis (Single Page)
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
Automatic HVAC Systems
>>
Diagnosis
>>
No Cool Air From Blower
No Cool Air From Blower

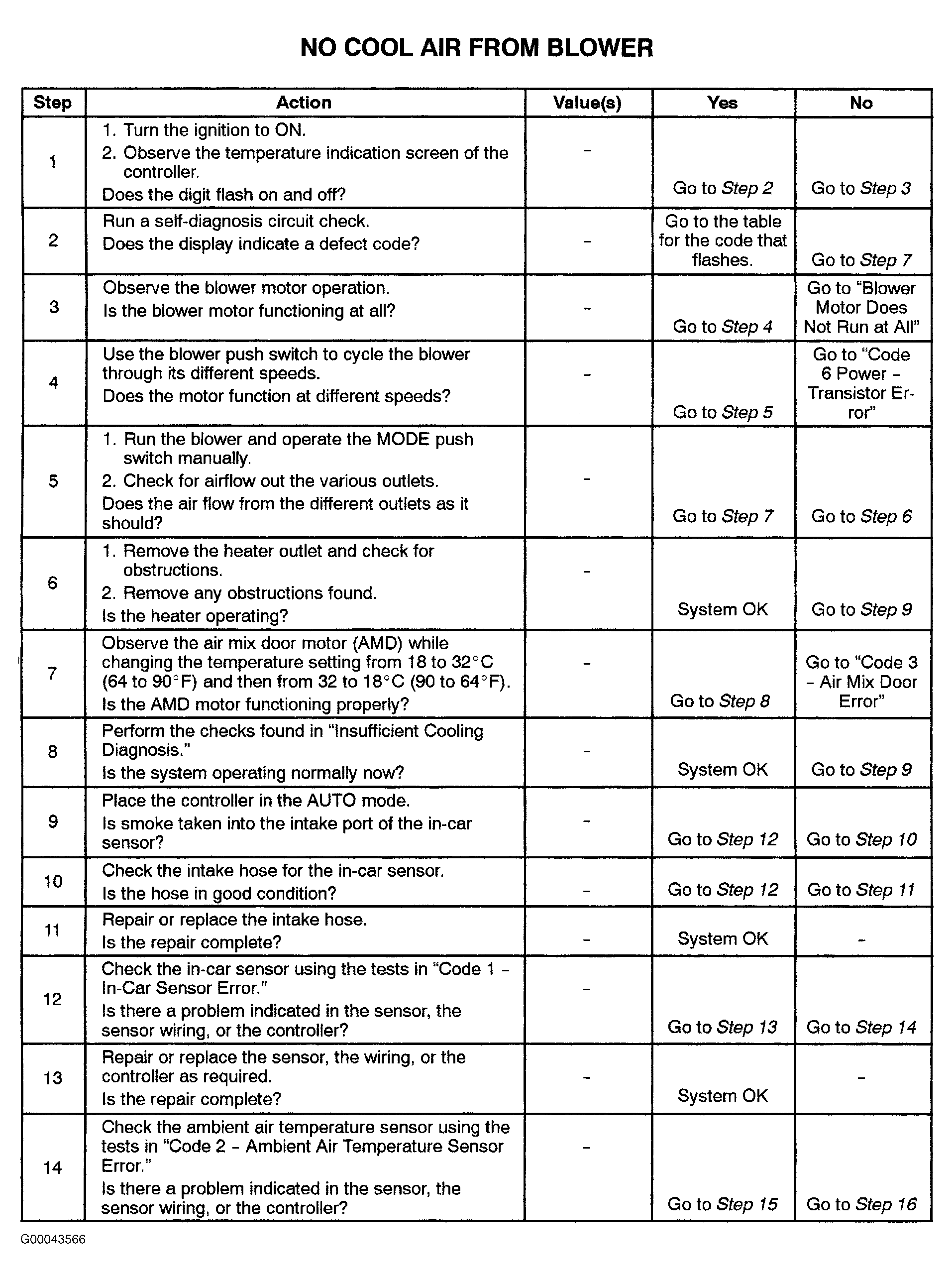

Fig 1: No Cool Air From Blower - Steps 1-14 (1 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.

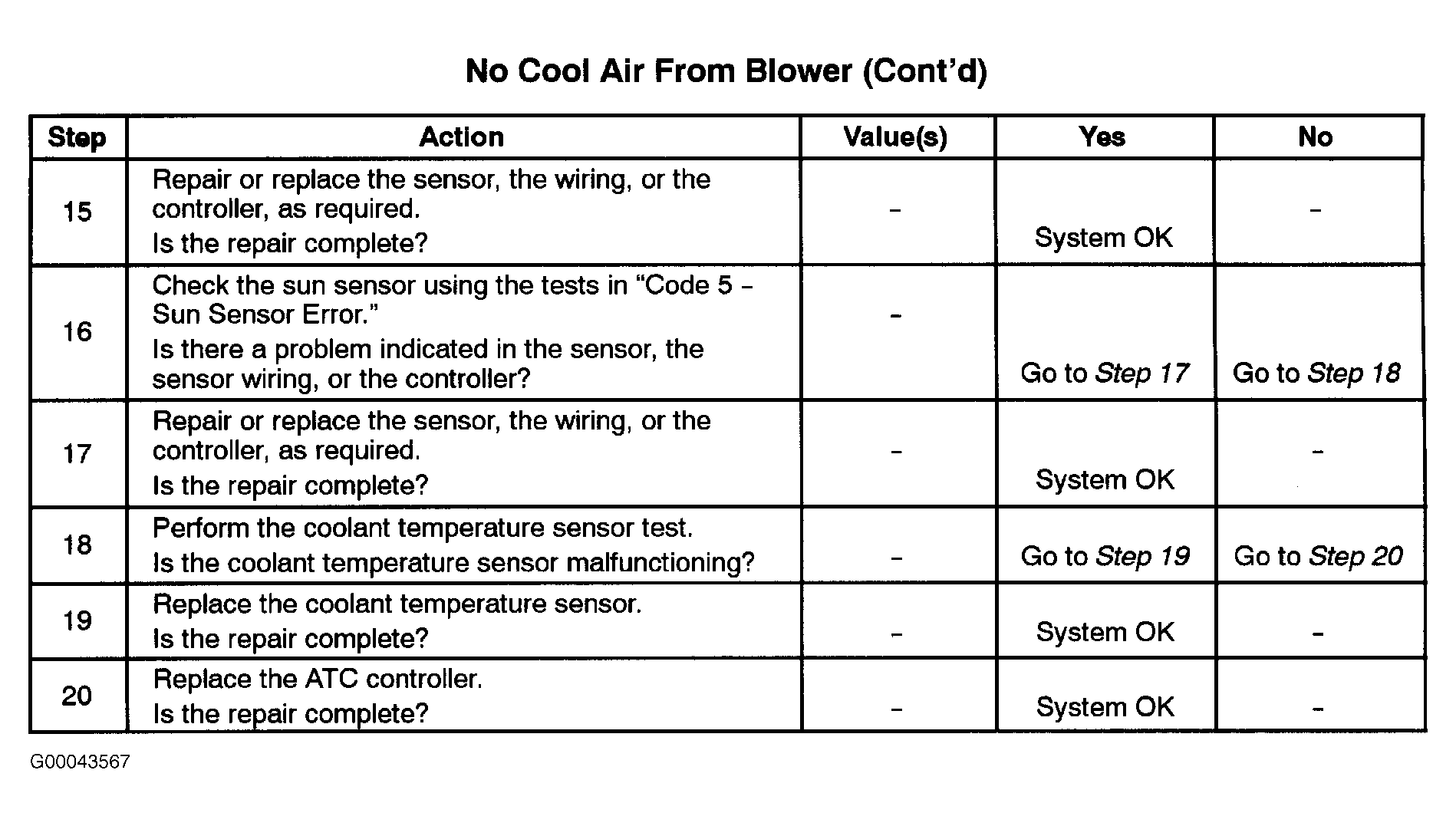

Fig 2: No Cool Air From Blower - Steps 15-20 (2 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
