DTC P0440: Evaporative Emission System Large Leak/Low Tank Vacuum

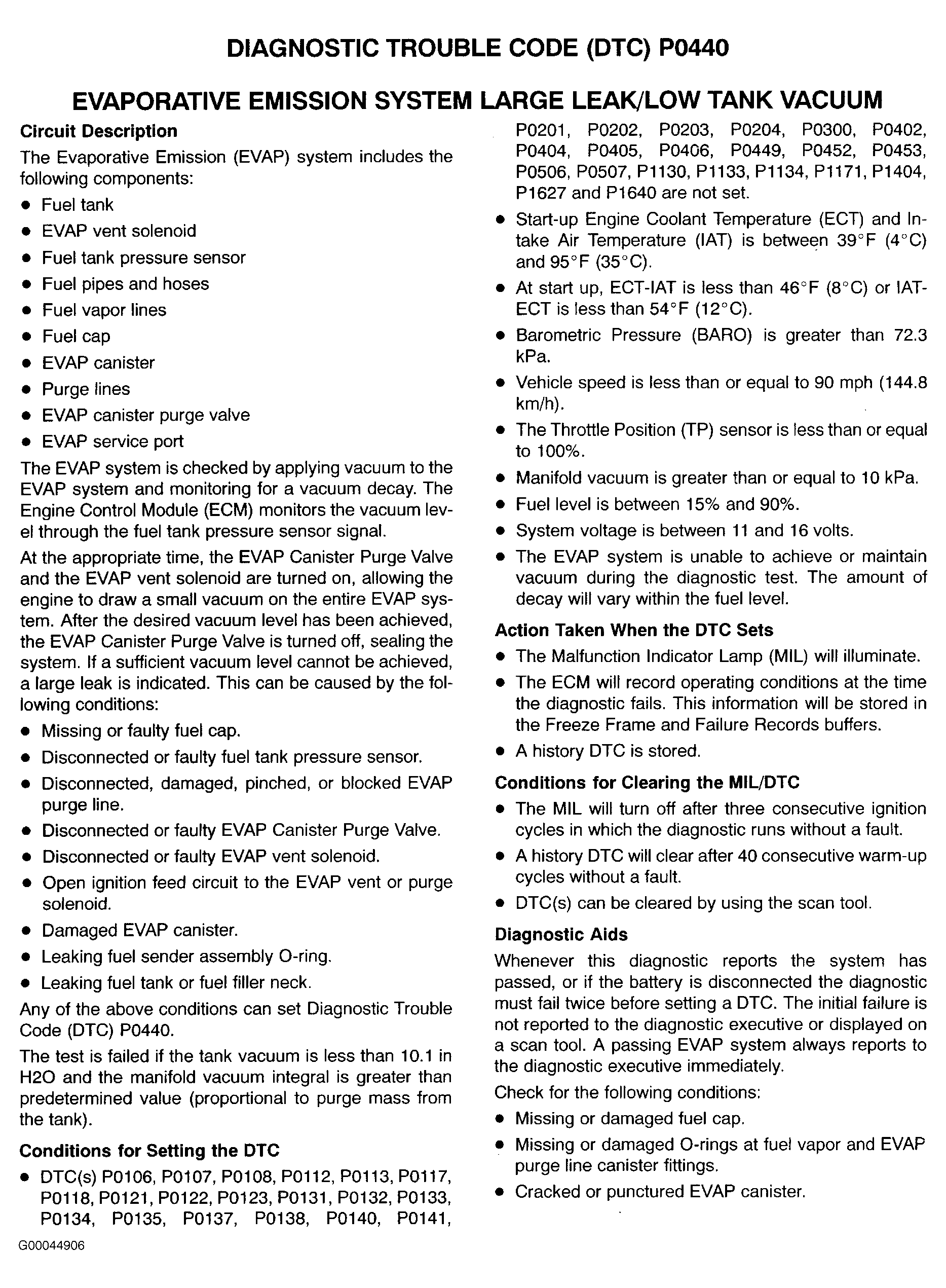

Fig 1: DTC P0440: EVAP System Large Leak/Low Tank Vacuum (1 Of 5)

Courtesy of DAEWOO MOTOR AMERICA, INC.

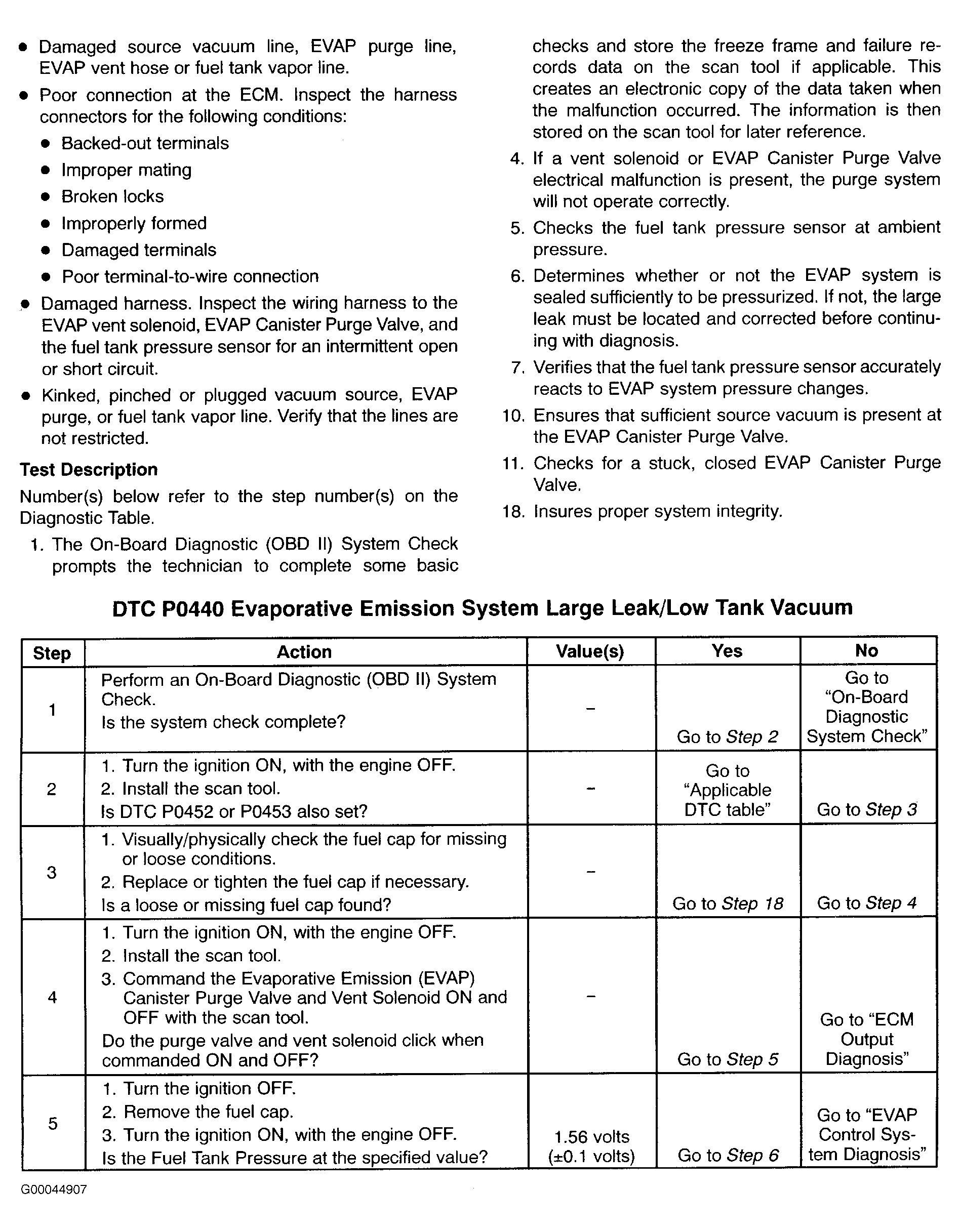

Fig 2: DTC P0440: EVAP System Large Leak/Low Tank Vacuum (2 Of 5)

Courtesy of DAEWOO MOTOR AMERICA, INC.

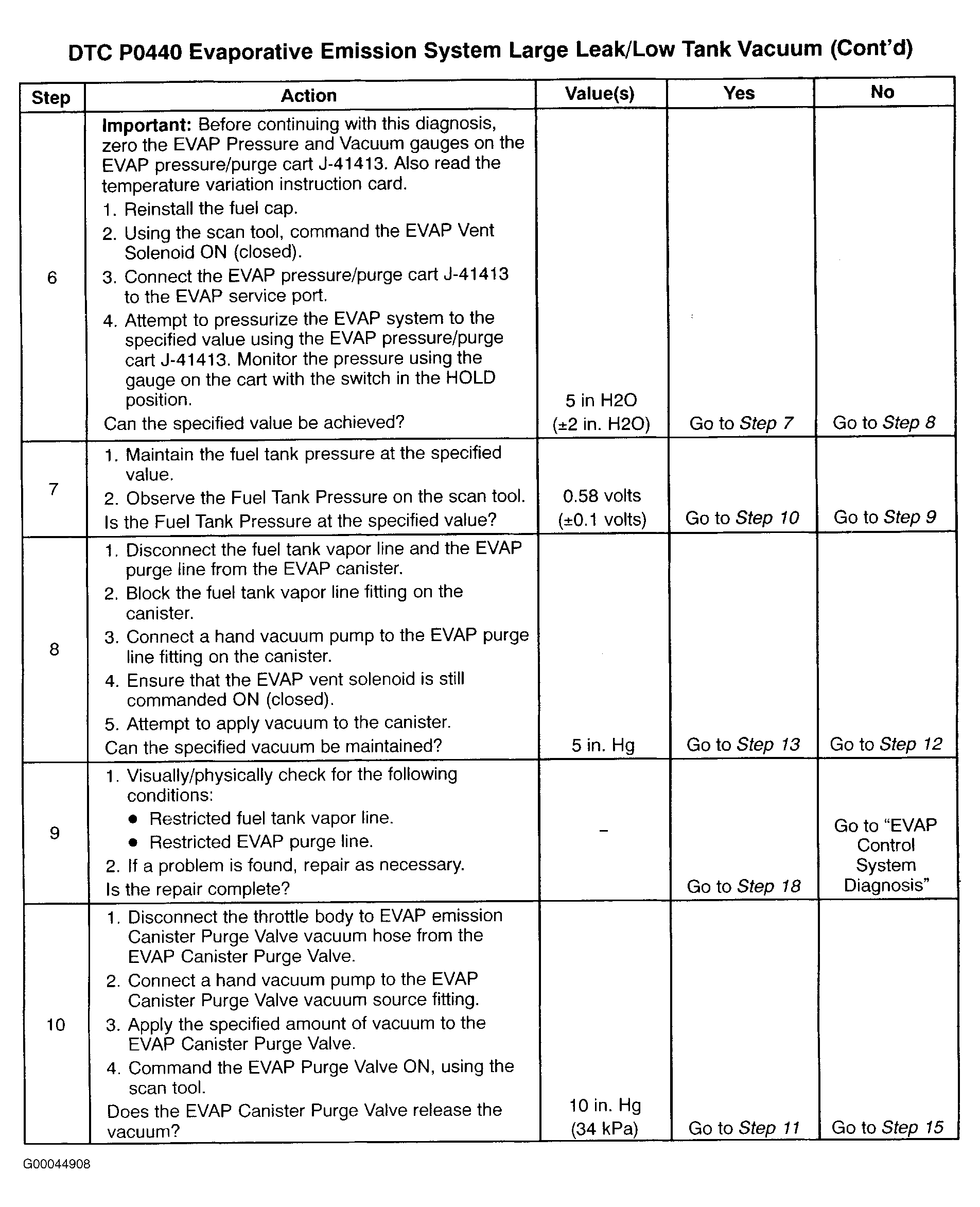

Fig 3: DTC P0440: EVAP System Large Leak/Low Tank Vacuum (3 Of 5)

Courtesy of DAEWOO MOTOR AMERICA, INC.

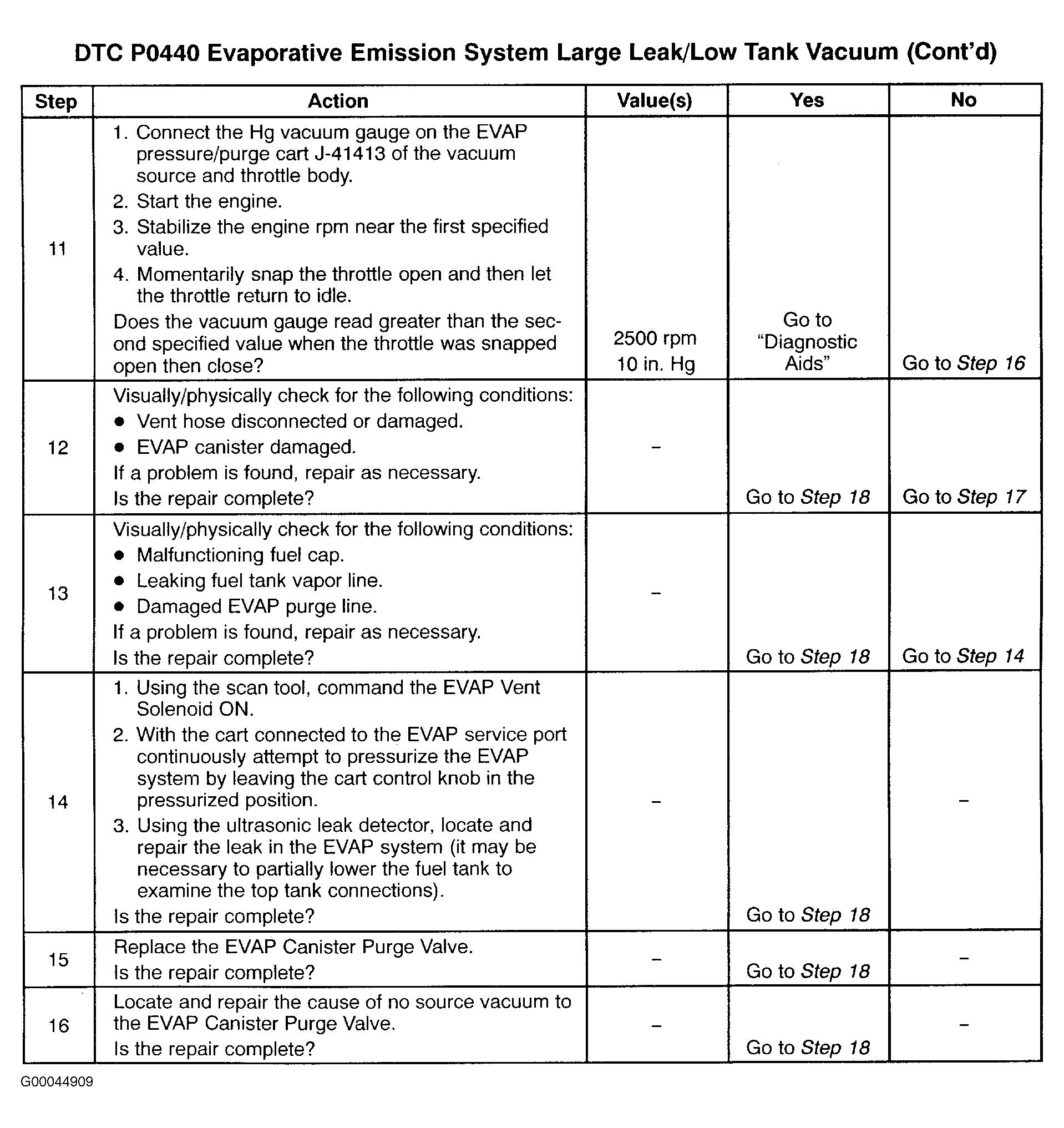

Fig 4: DTC P0440: EVAP System Large Leak/Low Tank Vacuum (4 Of 5)

Courtesy of DAEWOO MOTOR AMERICA, INC.

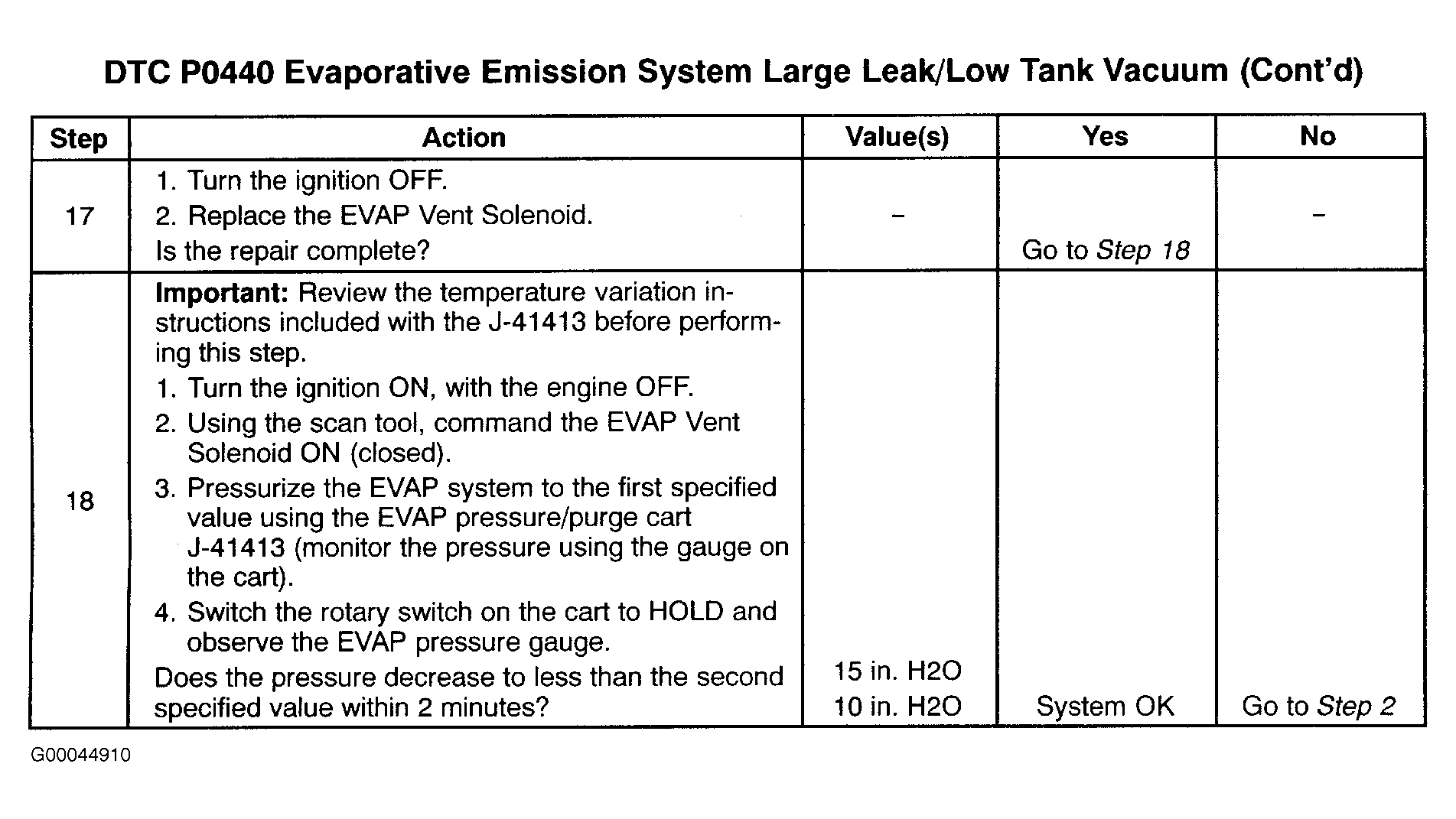

Fig 5: DTC P0440: EVAP System Large Leak/Low Tank Vacuum (5 Of 5)

Courtesy of DAEWOO MOTOR AMERICA, INC.
