LEMON Manuals
: Even more car manuals for everyone
Home
>>
Daewoo
>>
2000
>>
Leganza CDX
>>
Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
Testing & Diagnosis
>>
Engine Controls - Self-Diagnostics
>>
Diagnostic Trouble Codes
>>
DTC P0303: Cylinder No. 3 Misfire
DTC P0303: Cylinder No. 3 Misfire

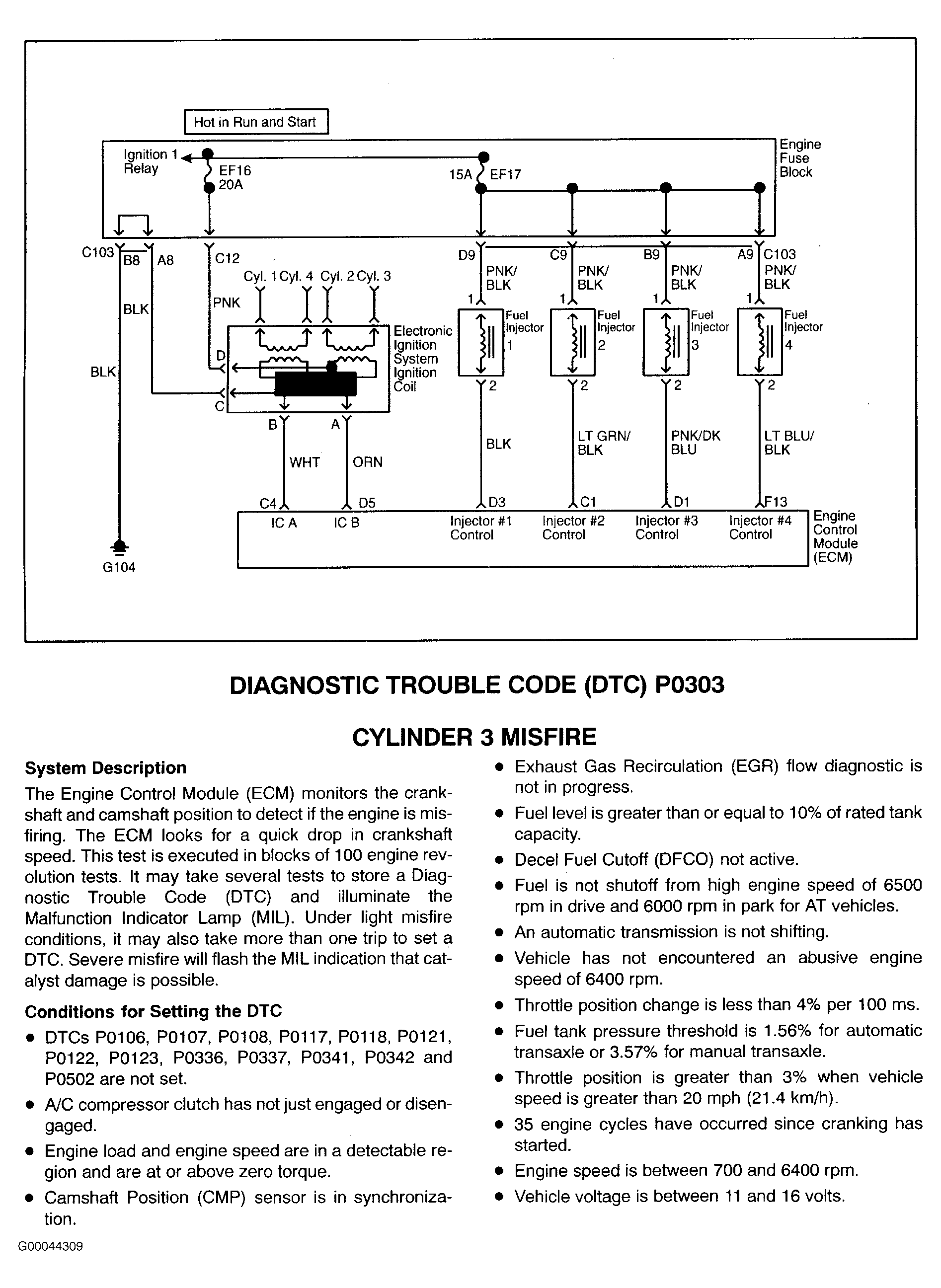

Fig 1: DTC P0303: Cylinder No. 3 Misfire (1 Of 54)
Courtesy of DAEWOO MOTOR AMERICA, INC.

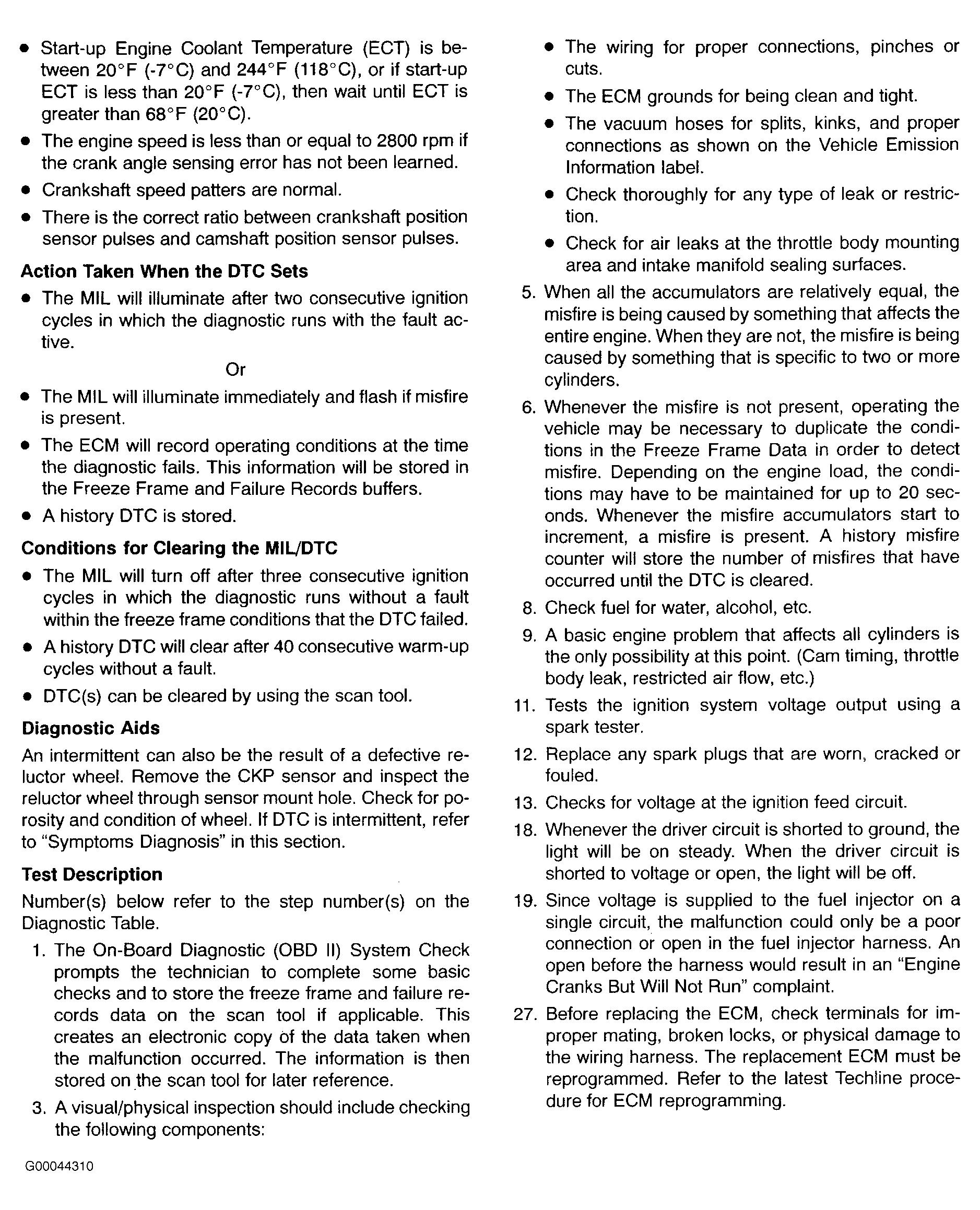

Fig 2: DTC P0303: Cylinder No. 3 Misfire (2 Of 5)
Courtesy of DAEWOO MOTOR AMERICA, INC.

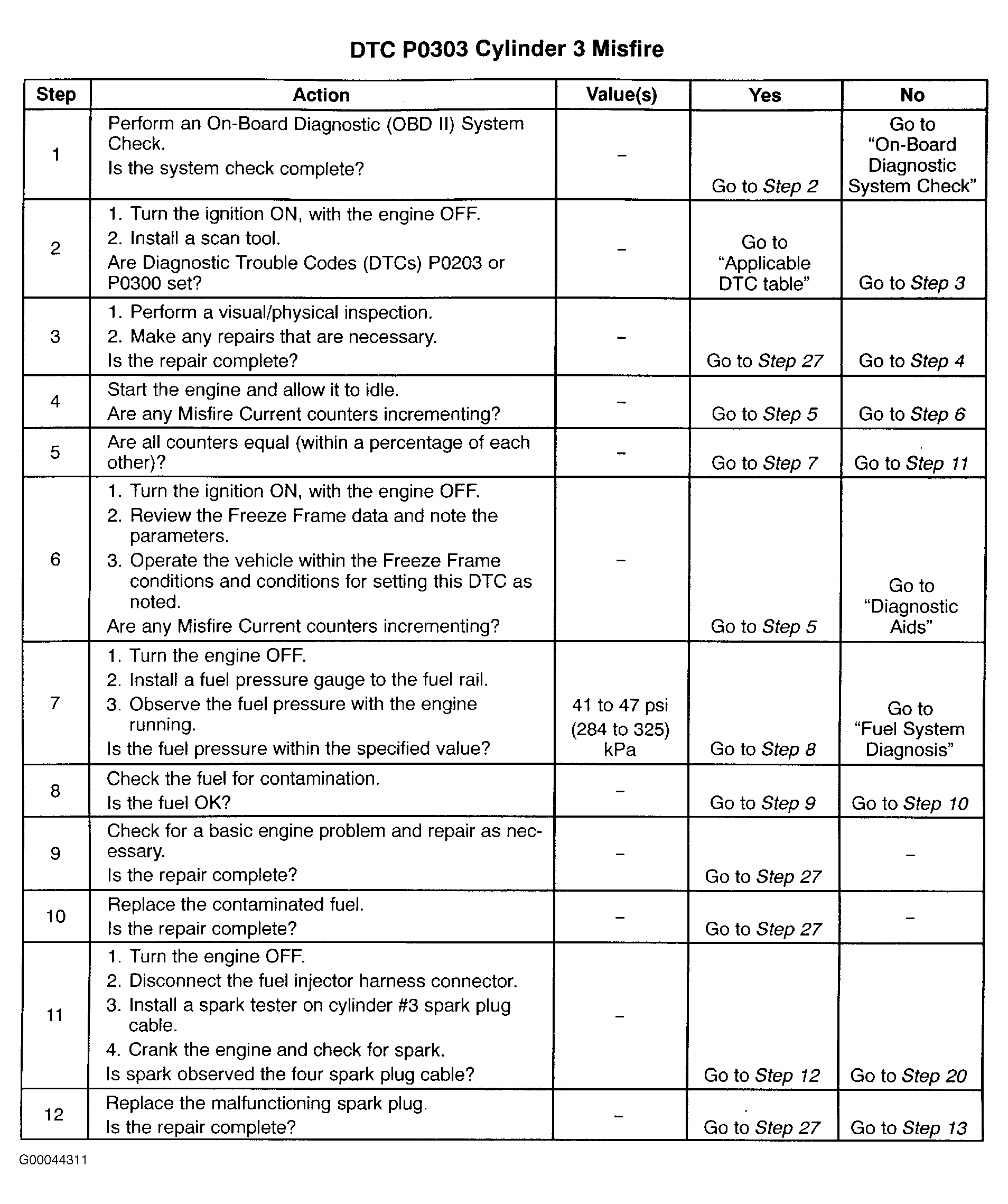

Fig 3: DTC P0303: Cylinder No. 3 Misfire (3 Of 5)
Courtesy of DAEWOO MOTOR AMERICA, INC.

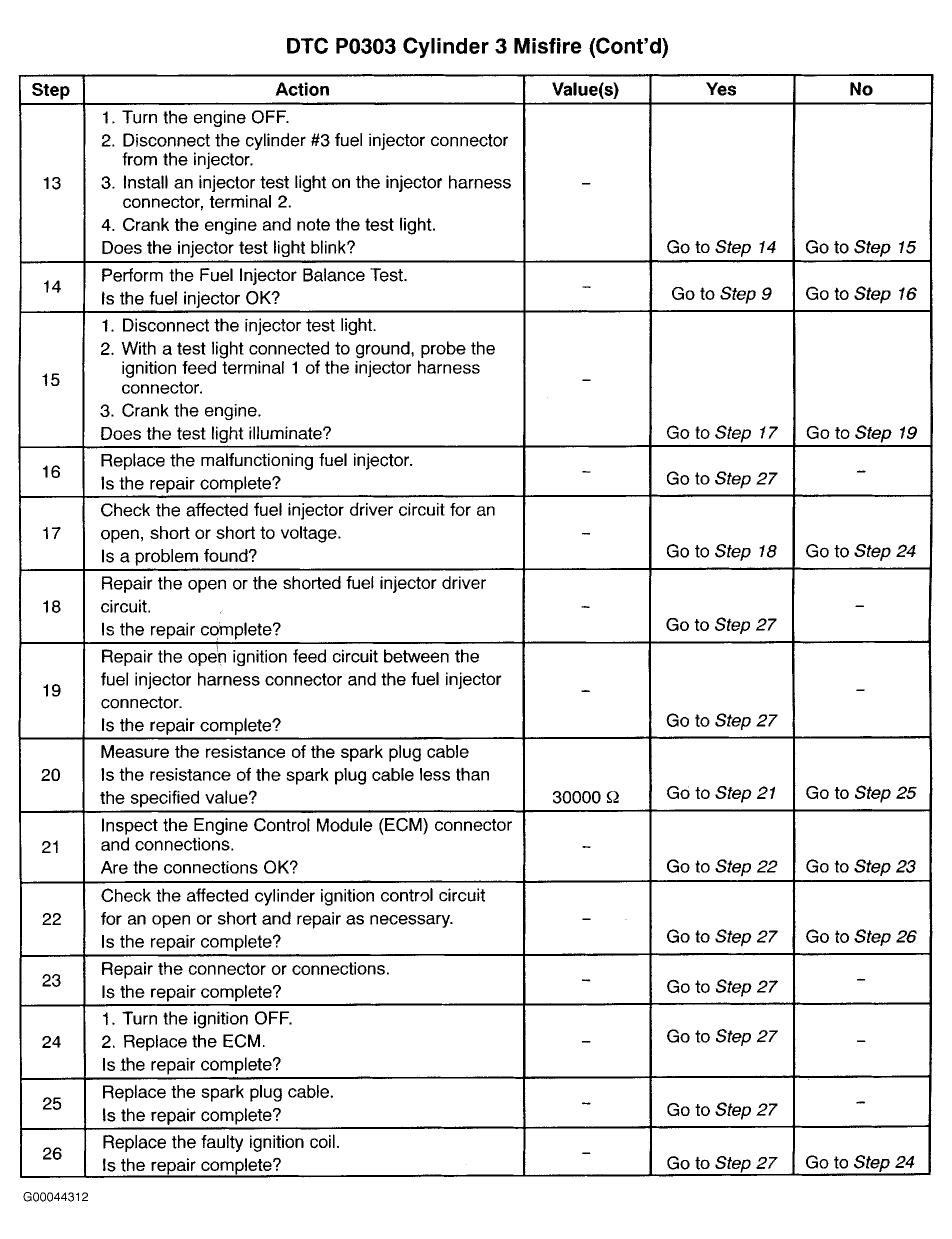

Fig 4: DTC P0303: Cylinder No. 3 Misfire (4 Of 5)
Courtesy of DAEWOO MOTOR AMERICA, INC.

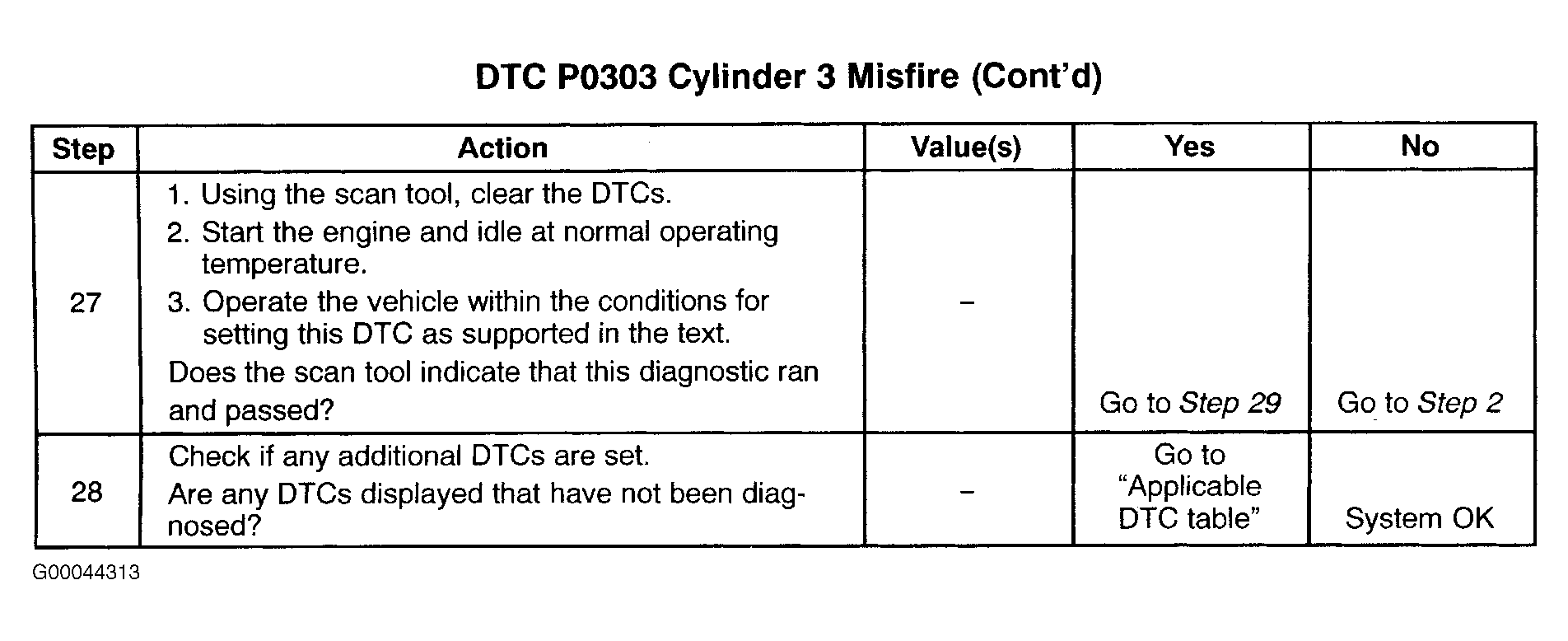

Fig 5: DTC P0303: Cylinder No. 3 Misfire (5 Of 5)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
