Rear Timing Belt Cover: Removal

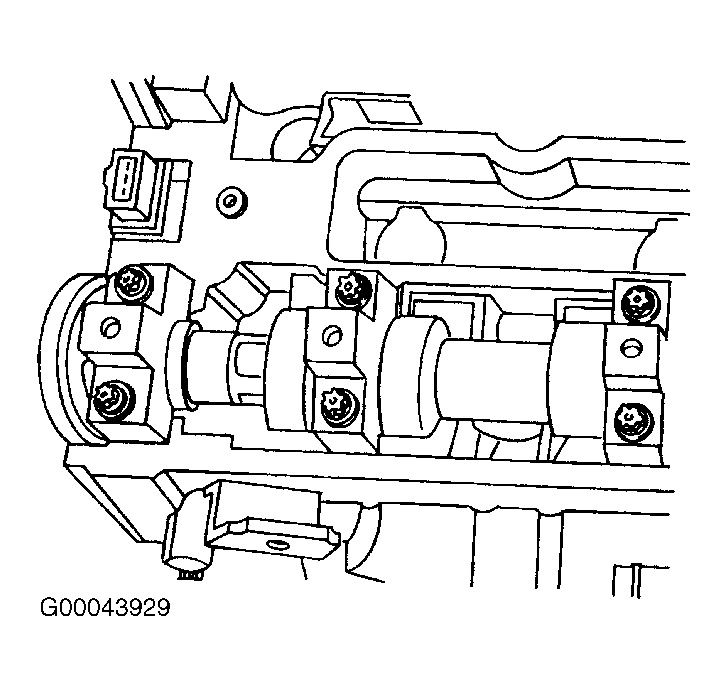

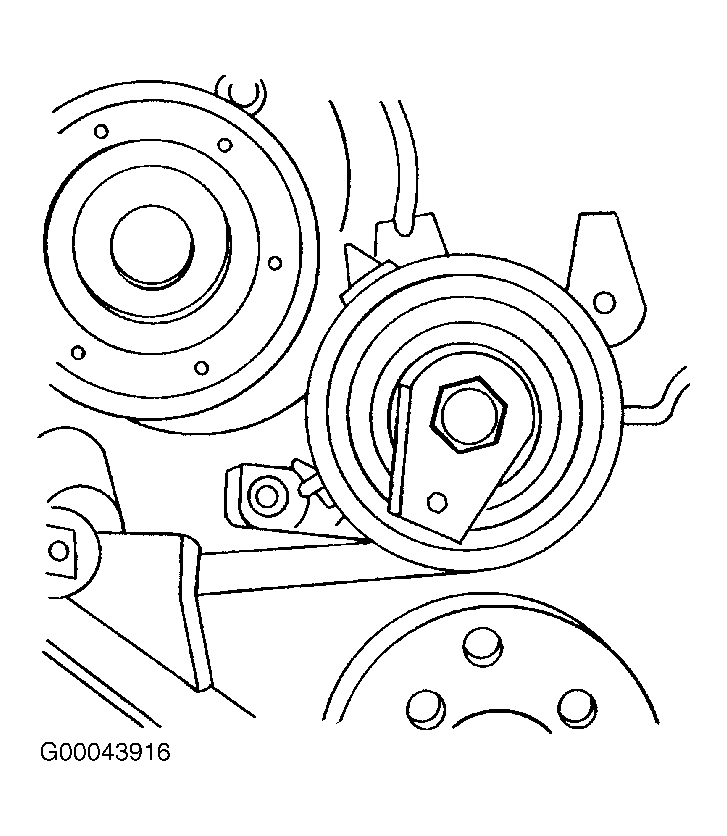

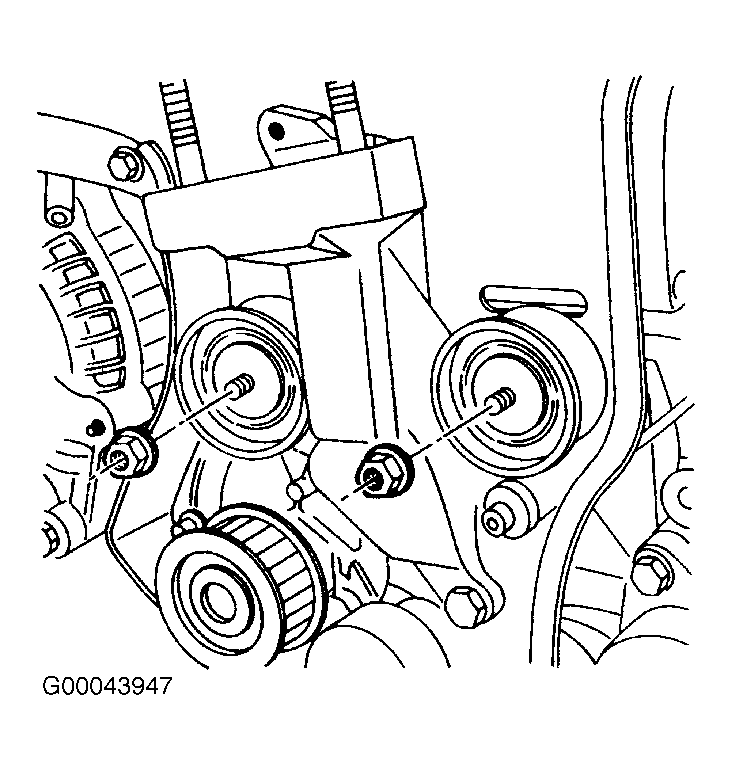

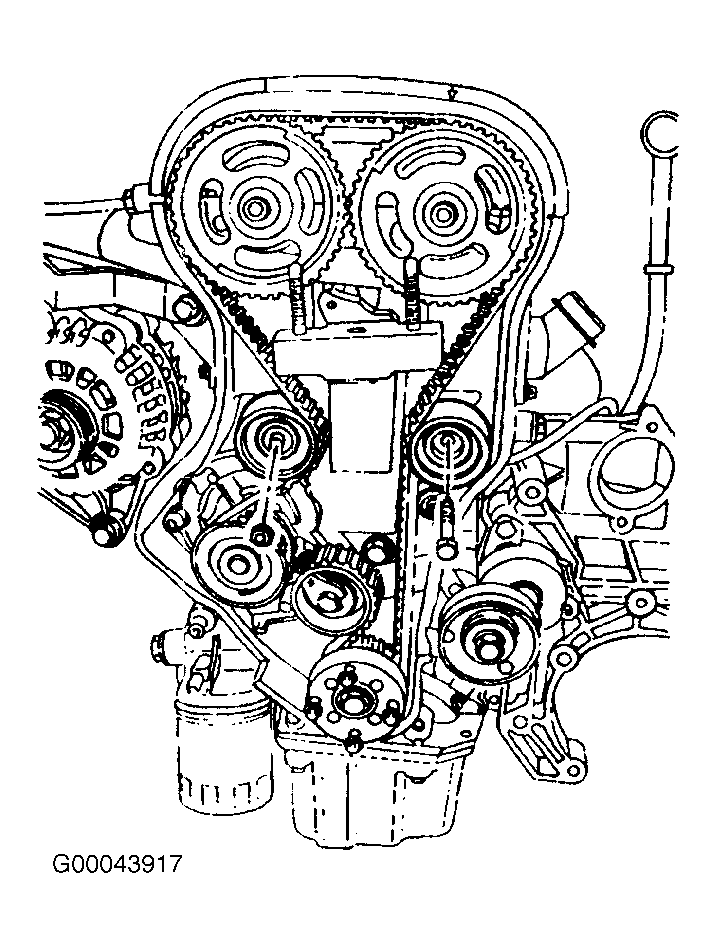

Disconnect negative battery cable. Remove timing belt. See Figure. Remove camshaft gears. See Figure. Remove timing belt automatic tensioner bolt. Remove timing belt automatic tensioner. See Figure. Remove timing belt idler pulley nuts.

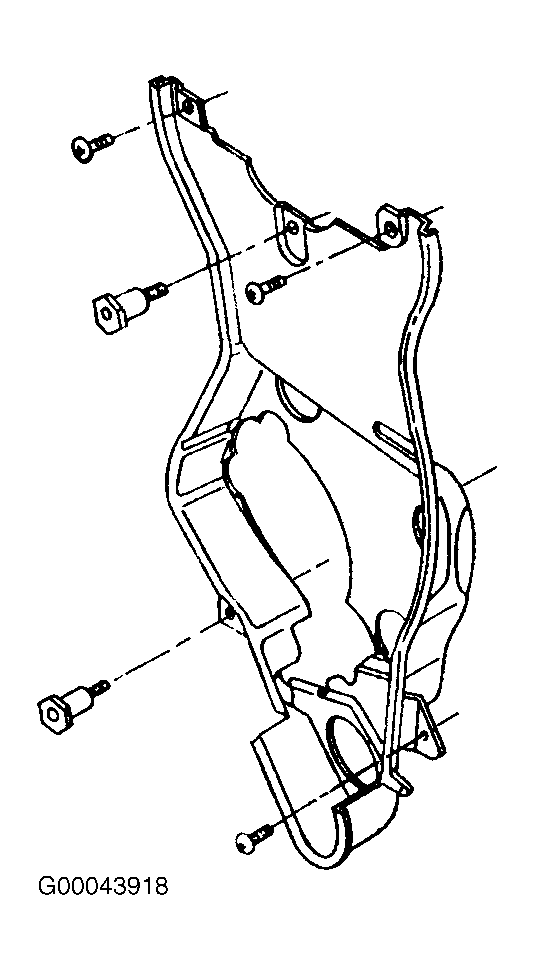

Remove timing belt idler pulleys. Remove engine mount retaining bolts. Remove engine mount. Remove crankshaft timing belt drive gear bolt. See Fig 1. Remove crankshaft gear. Remove rear timing belt cover bolts. See Figure. Remove rear timing belt cover.

Fig 1: Removing Timing Belt Drive Gear Bolts
Courtesy of DAEWOO MOTOR AMERICA, INC.
