Removal & Installation

  1. Remove instrument cluster trim panel. Remove screws and instrument cluster. See Fig 1 .
  2. Install instrument cluster with screws. Tighten instrument cluster screws to 2 N.m (18 INCH Lbs.). Install instrument cluster trim panel.

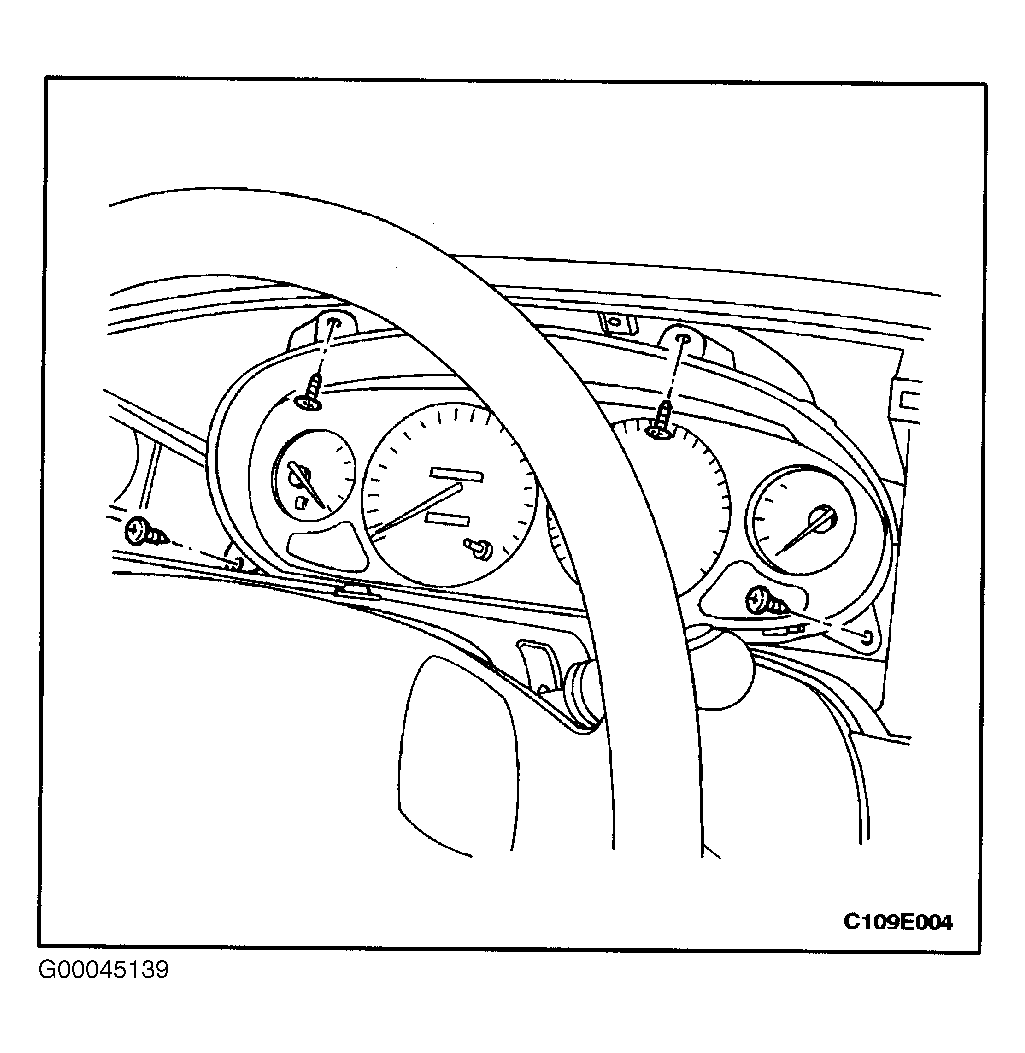

Fig 1: Instrument Cluster Removal & Installation
G00045139Courtesy of DAEWOO MOTOR AMERICA, INC.
