Cigar Lighter: Removal

  1. Disconnect negative battery cable. Remove shift lever trim panel, screws and ashtray housing.
  2. Disconnect ashtray housing electrical connector. Disconnect cigar lighter electrical connector.
  3. Remove cigar lighter from cigar lighter housing. Remove cigar lighter housing from ashtray housing. See Fig 1 .

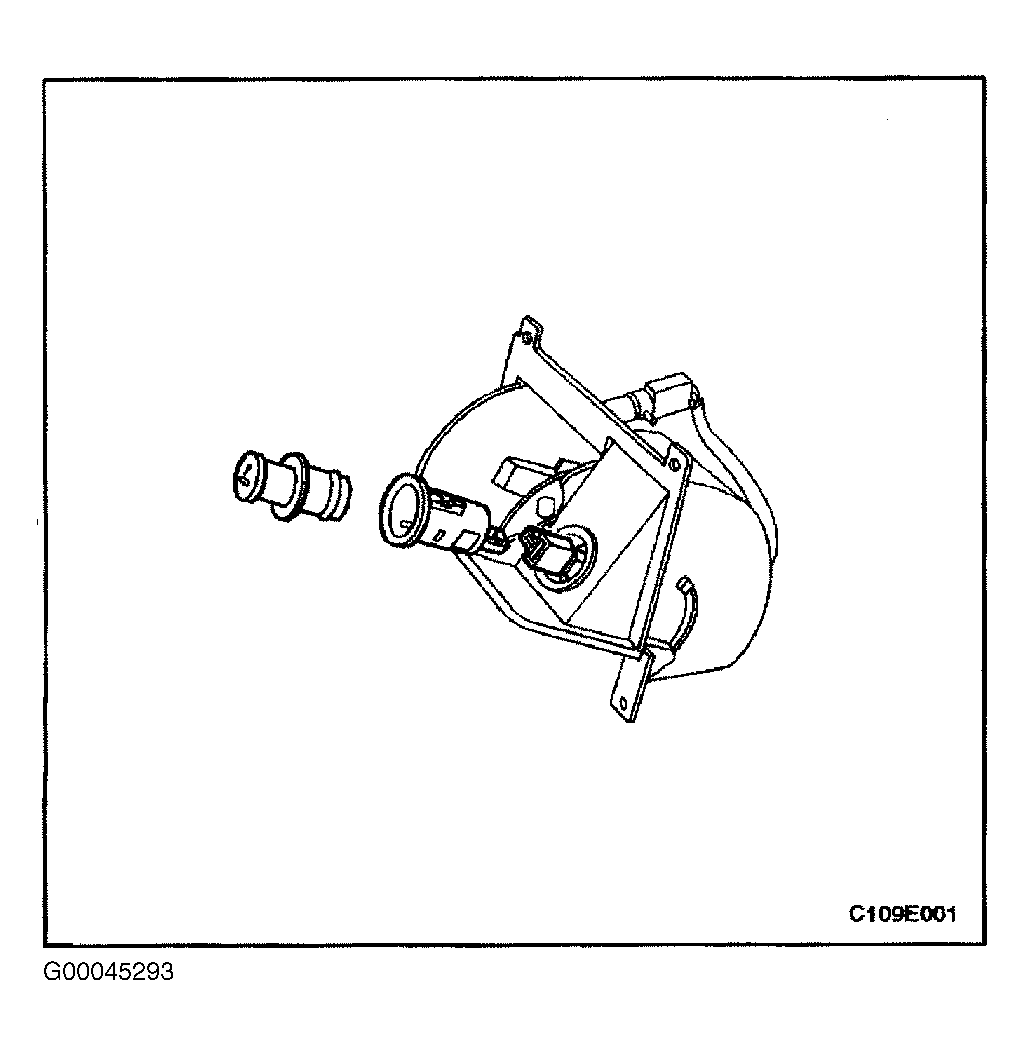

    Fig 1: Cigar Lighter Housing Diagram
    G00045293Courtesy of DAEWOO MOTOR AMERICA, INC.
