Temperature Gauge Inoperative, Other Gauges Okay

NOTE: The following number(s) refer to step(s) in diagnostic table. See Fig 1 : Begin diagnostic Procedure at Step 1) if problem is temperature gauge always indicates HOT. Begin diagnostic table at Step 7) if problem is temperature gauge always indicates COLD.

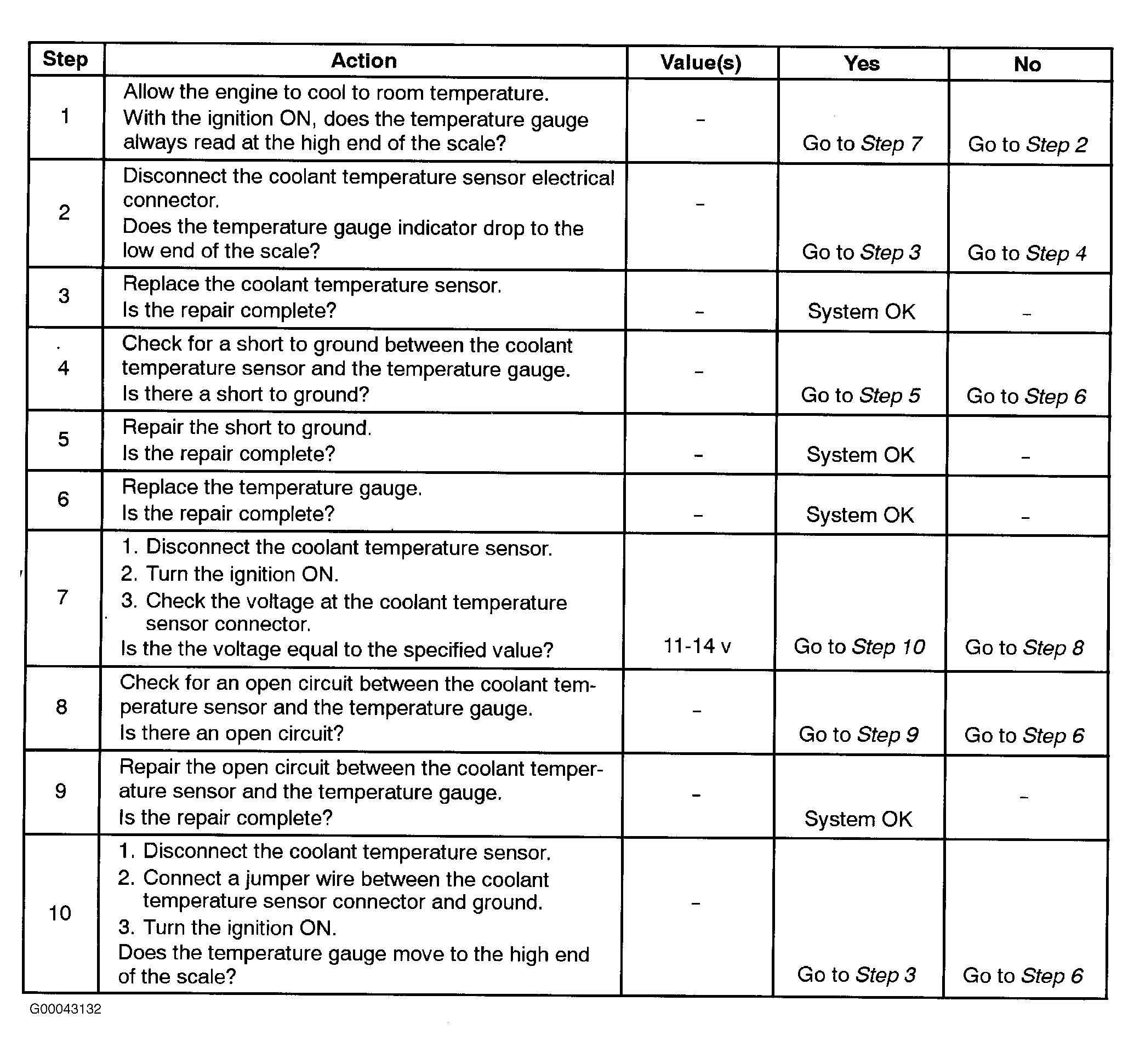

Fig 1: Temperature Gauge Inoperative, Other Gauges OK

Courtesy of DAEWOO MOTOR AMERICA, INC.

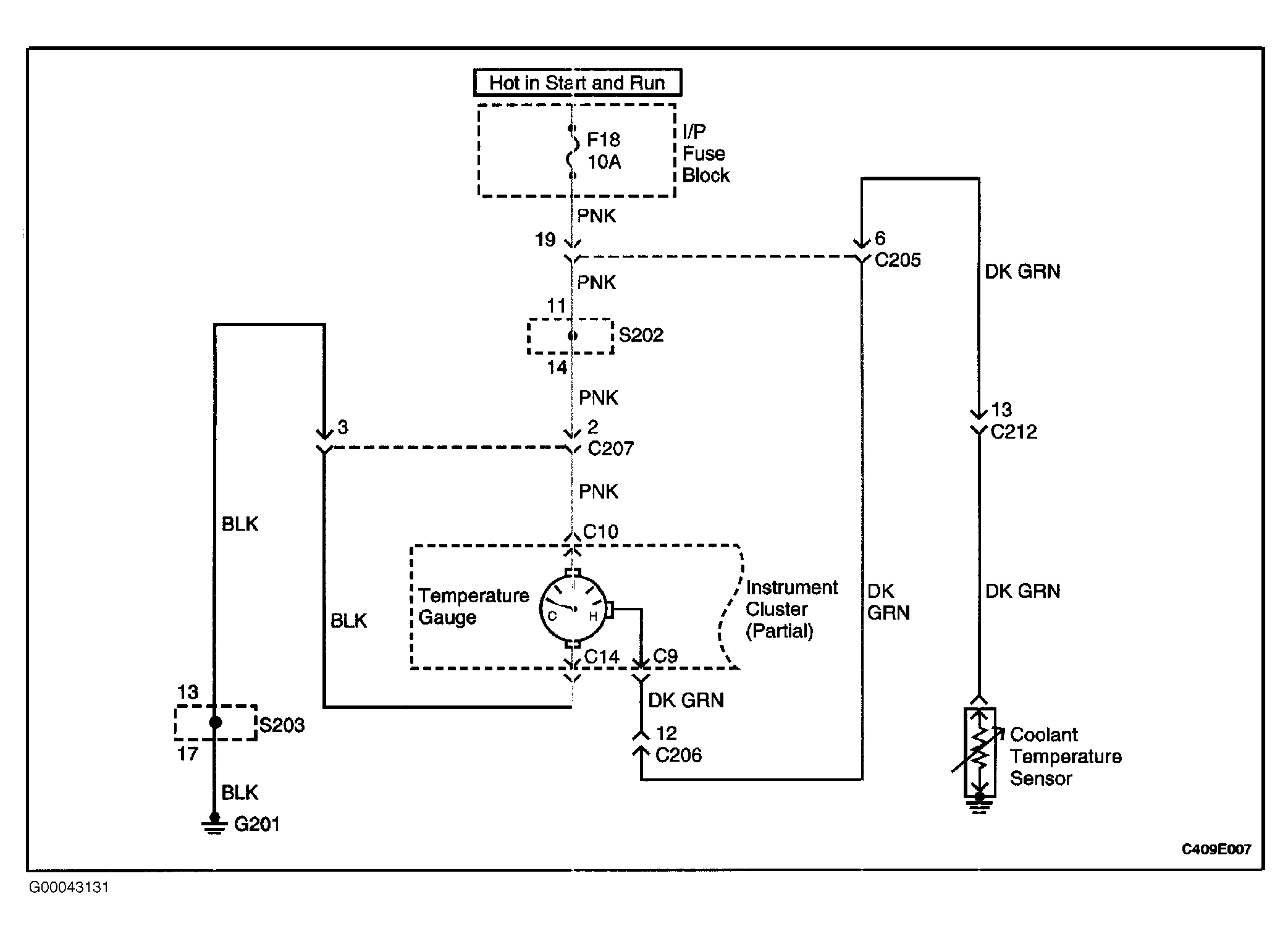

Fig 2: Temperature Gauge Wiring Diagram

Courtesy of DAEWOO MOTOR AMERICA, INC.
