Instrument Panel Does Not Illuminate When Lights Are ON

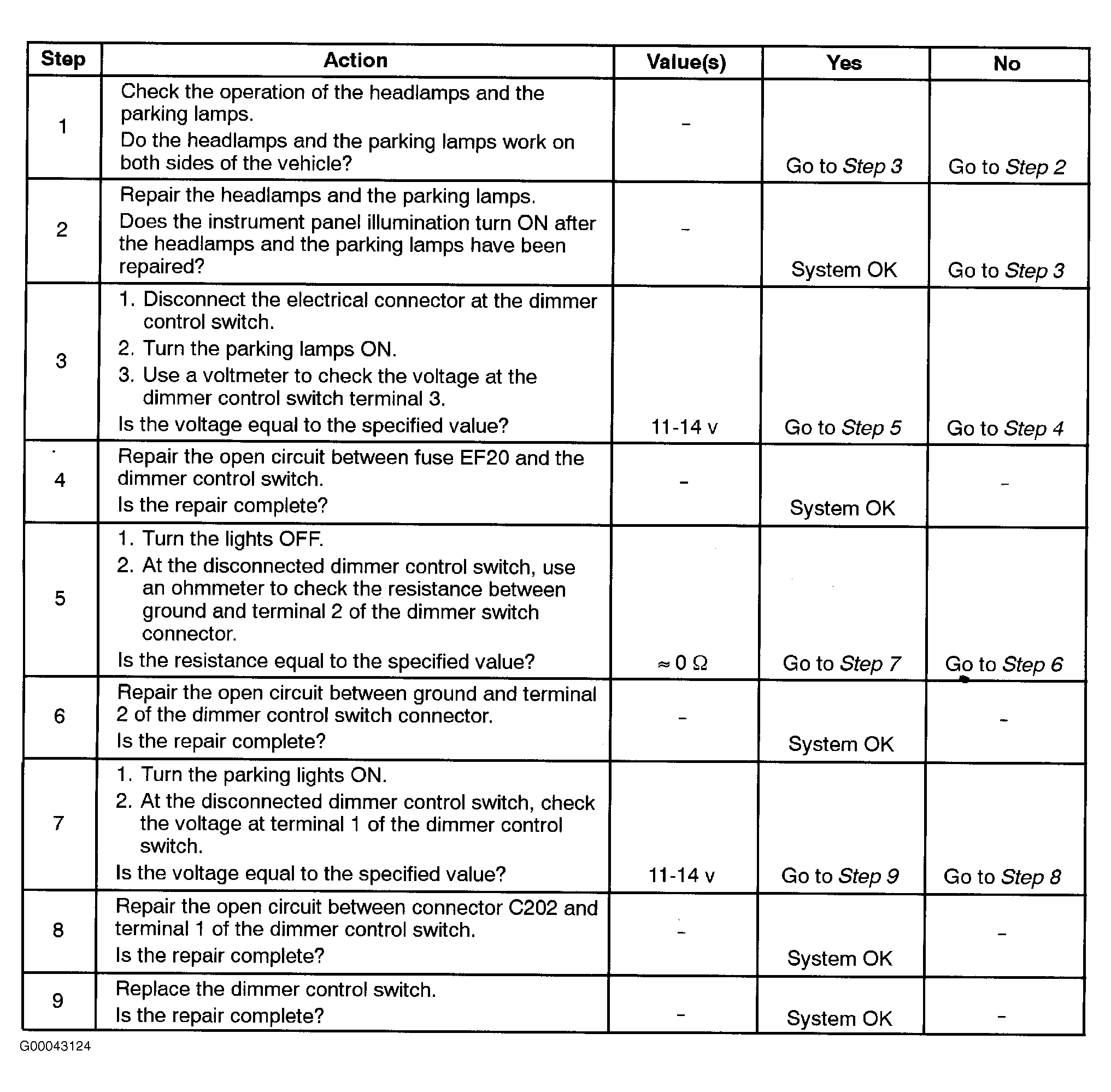

Fig 1: Instrument Panel Does Not Illuminate When Lights Are ON

Courtesy of DAEWOO MOTOR AMERICA, INC.

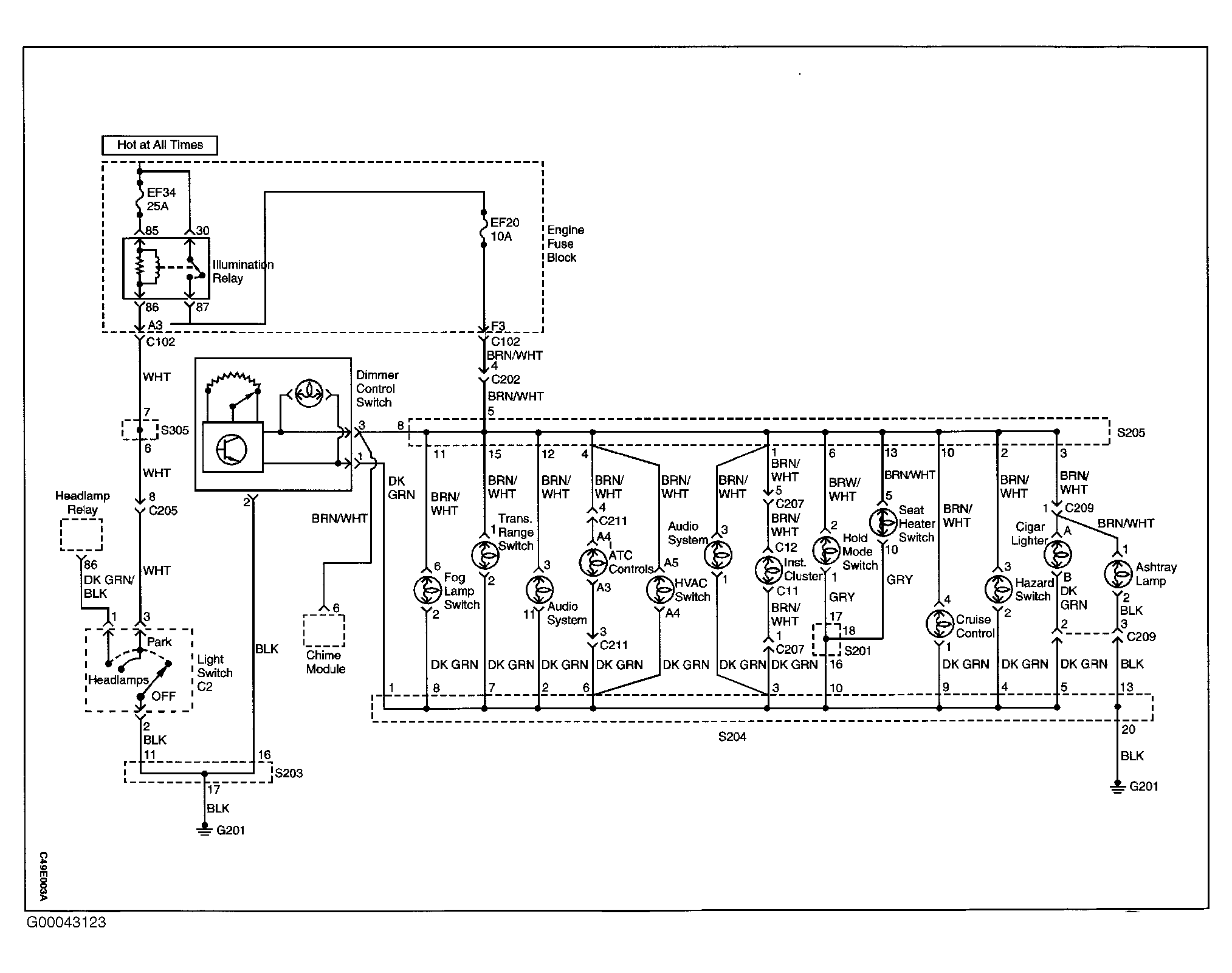

Fig 2: Instrument Panel Illumination Wiring Diagram

Courtesy of DAEWOO MOTOR AMERICA, INC.
