Instrument Cluster Indicator Lamps Do Not Operate

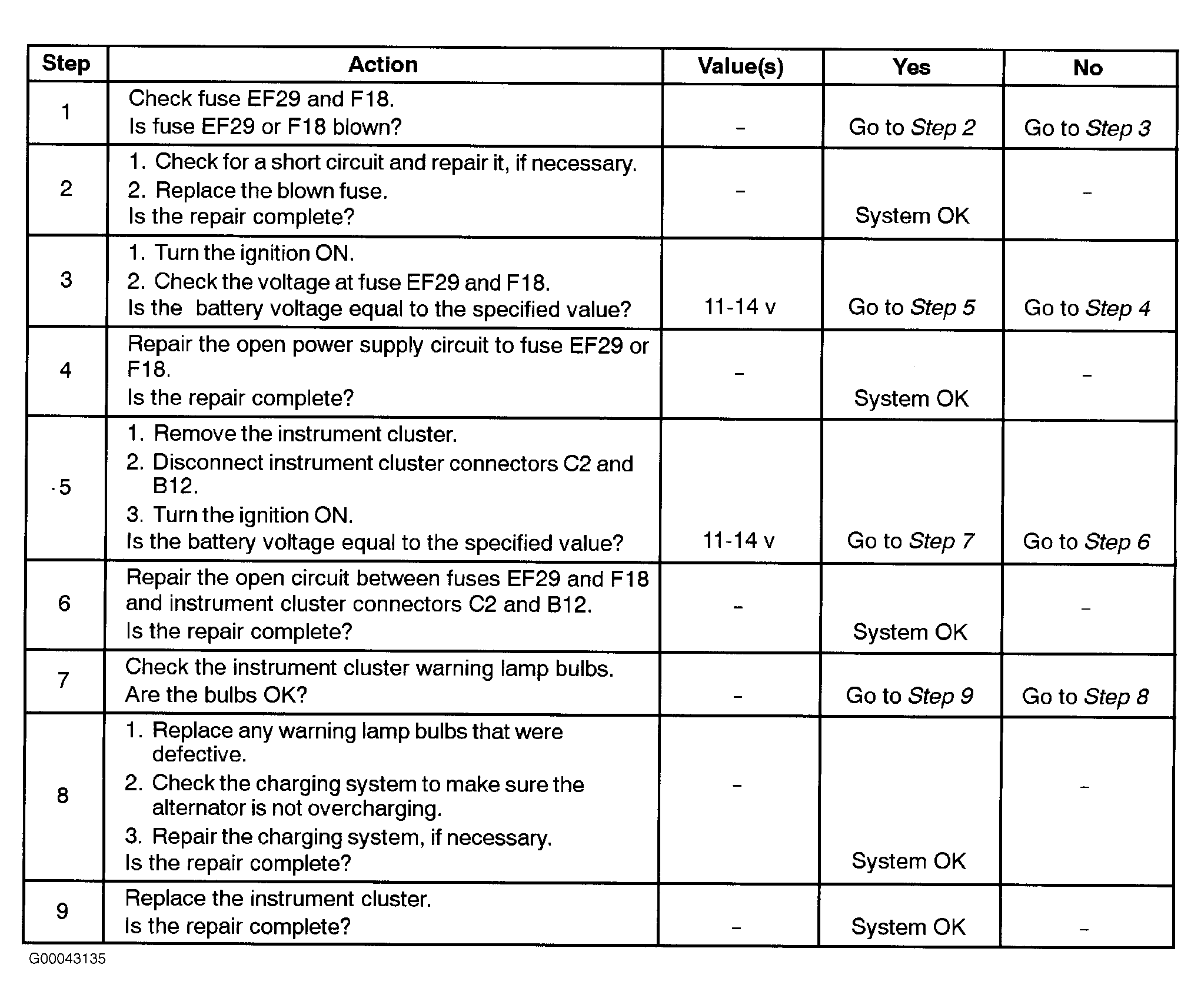

Fig 1: Instrument Cluster Indicator Lamps Do Not Operate

Courtesy of DAEWOO MOTOR AMERICA, INC.

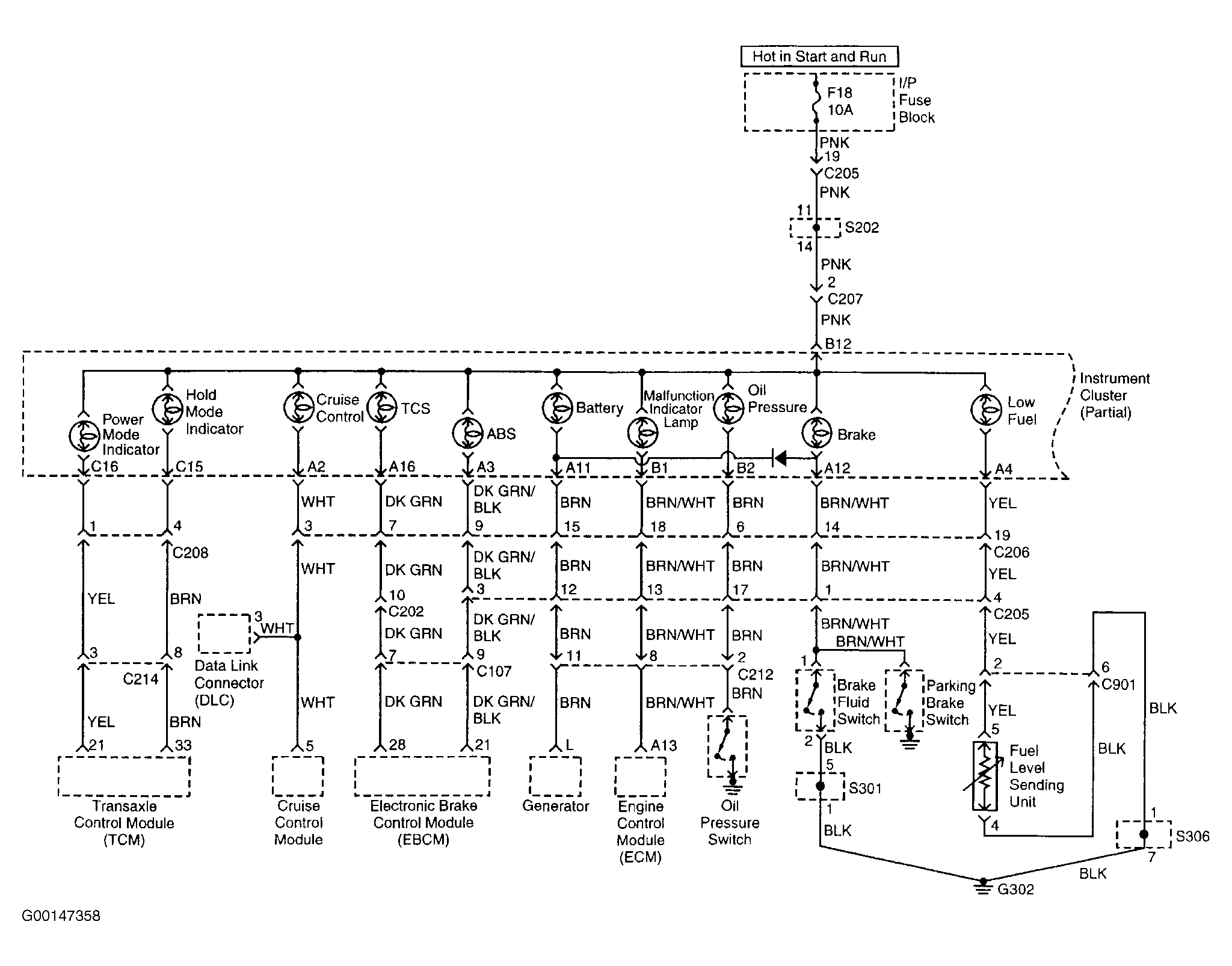

Fig 2: Instrument Cluster Indicator Lamps Wiring Diagram (1999)

Courtesy of DAEWOO MOTOR AMERICA, INC.

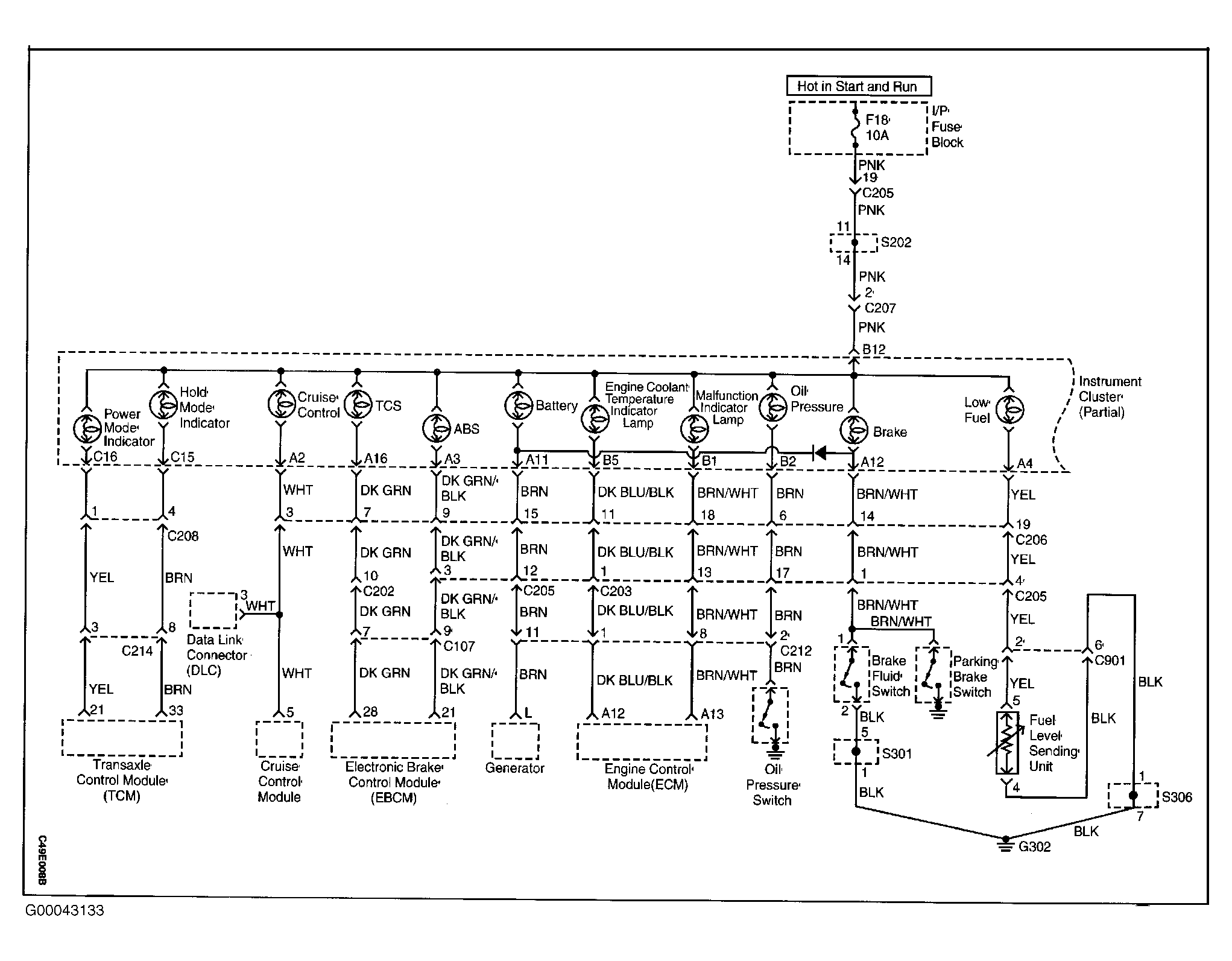

Fig 3: Instrument Cluster Indicator Lamps Wiring Diagram (2000-01)

Courtesy of DAEWOO MOTOR AMERICA, INC.

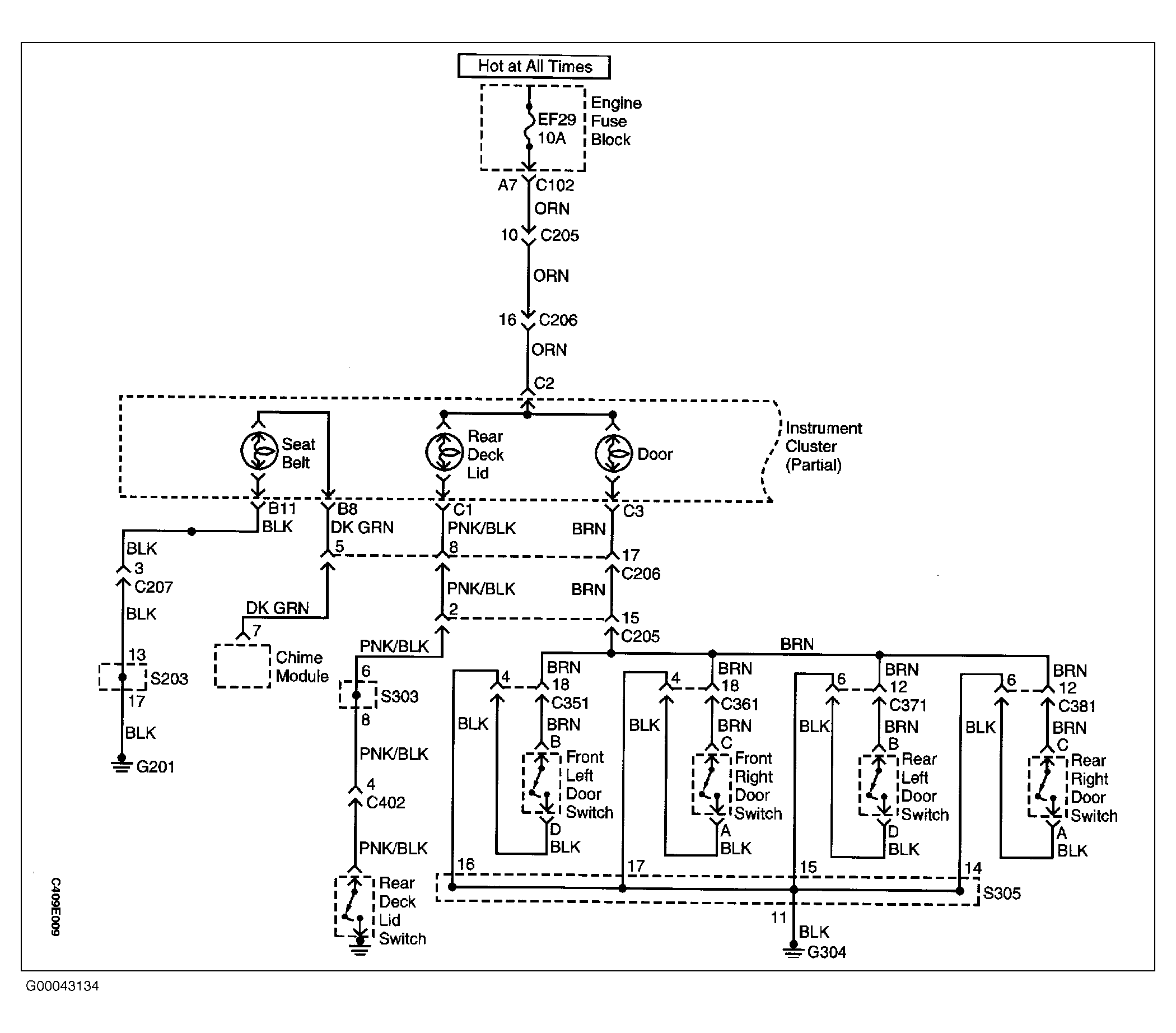

Fig 4: Instrument Cluster Indicator Lamps Wiring Diagram

Courtesy of DAEWOO MOTOR AMERICA, INC.
