Automatic Transaxle Gear Position Illumination Lamp Inoperative, All Other Lamps Okay

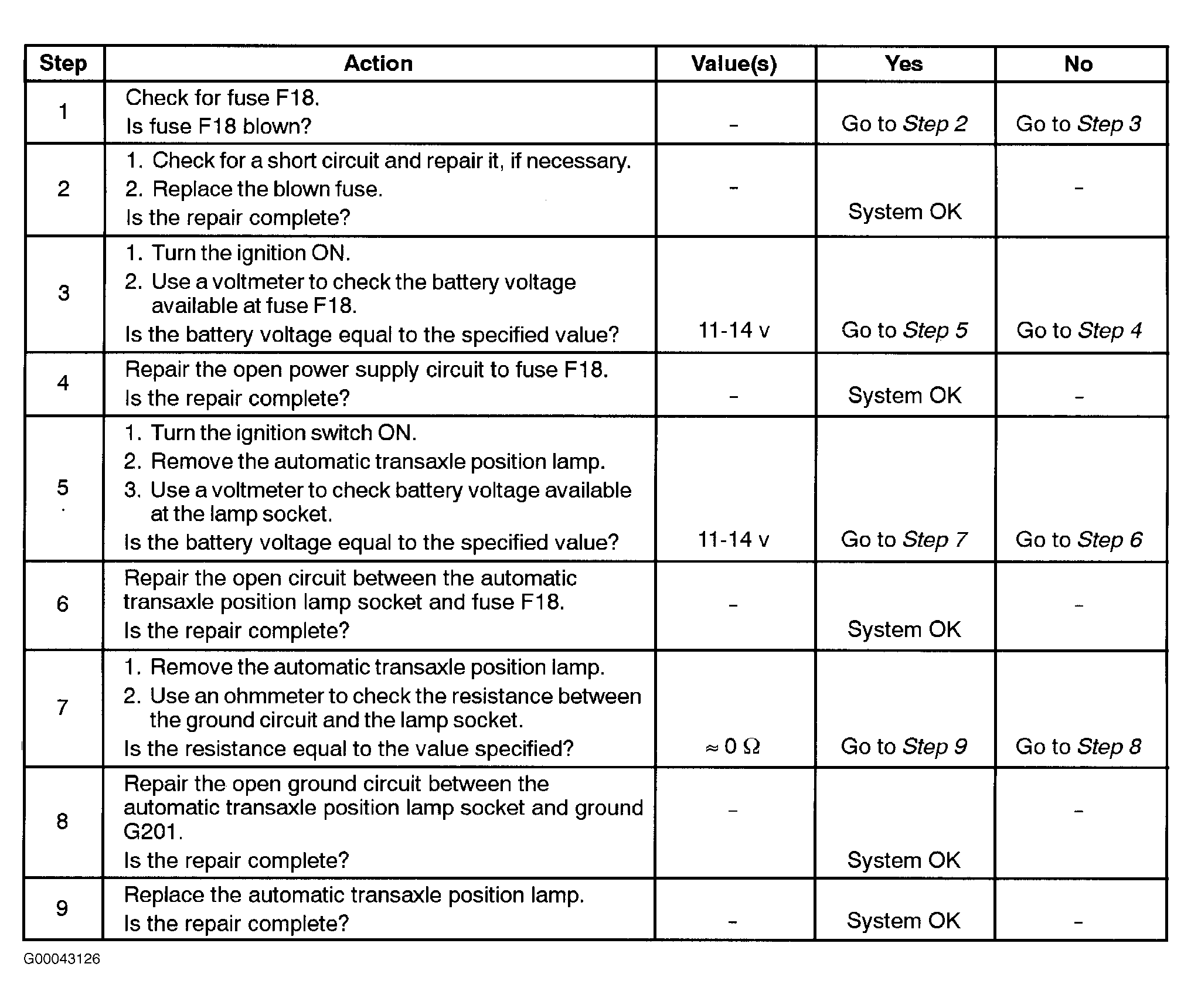

Fig 1: Automatic Transaxle Gear Position Illumination Lamp Inoperative, All Other Lamps Okay

Courtesy of DAEWOO MOTOR AMERICA, INC.

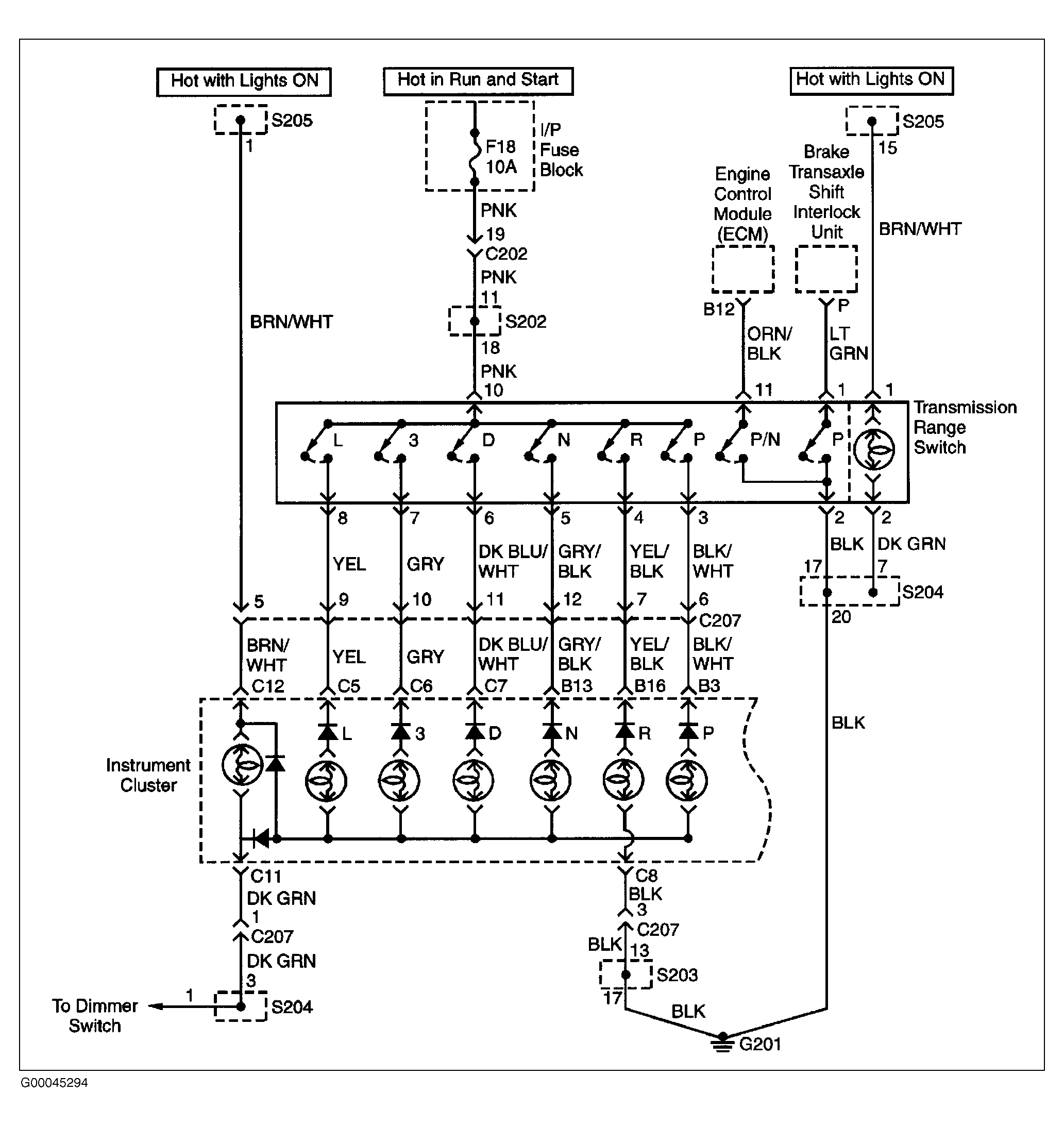

Fig 2: Automatic Transaxle Gear Selector Illumination Wiring Diagram

Courtesy of DAEWOO MOTOR AMERICA, INC.
