Fuel Gauge Inoperative

NOTE: The following number(s) refer to step(s) in diagnostic table. See Fig 1 : Begin diagnostic Procedure at Step 1) if problem is that fuel gauge always indicates FULL. Begin diagnostic table at Step 7) if problem is that fuel gauge always indicates EMPTY.

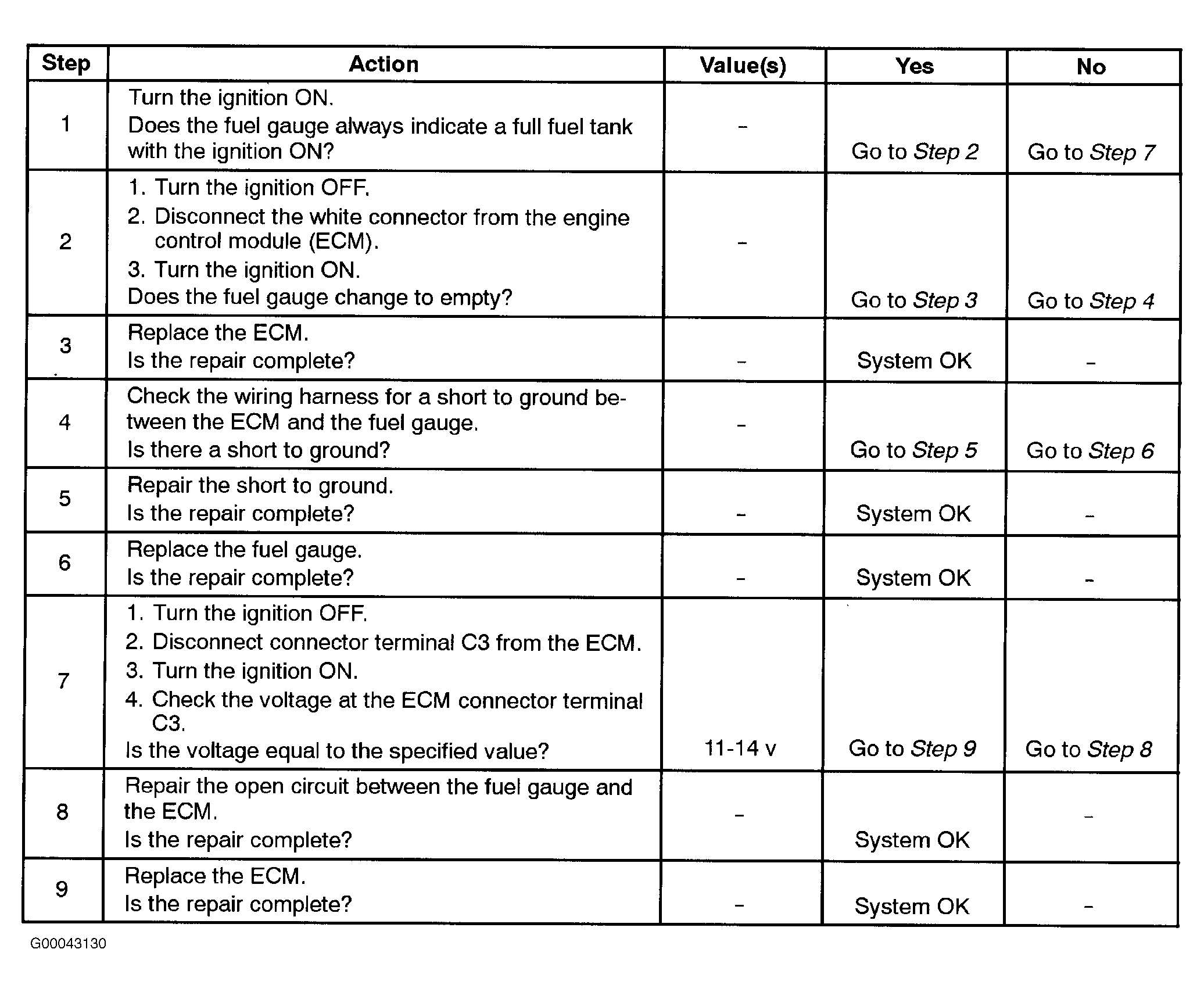

Fig 1: Fuel Gauge Inoperative

Courtesy of DAEWOO MOTOR AMERICA, INC.

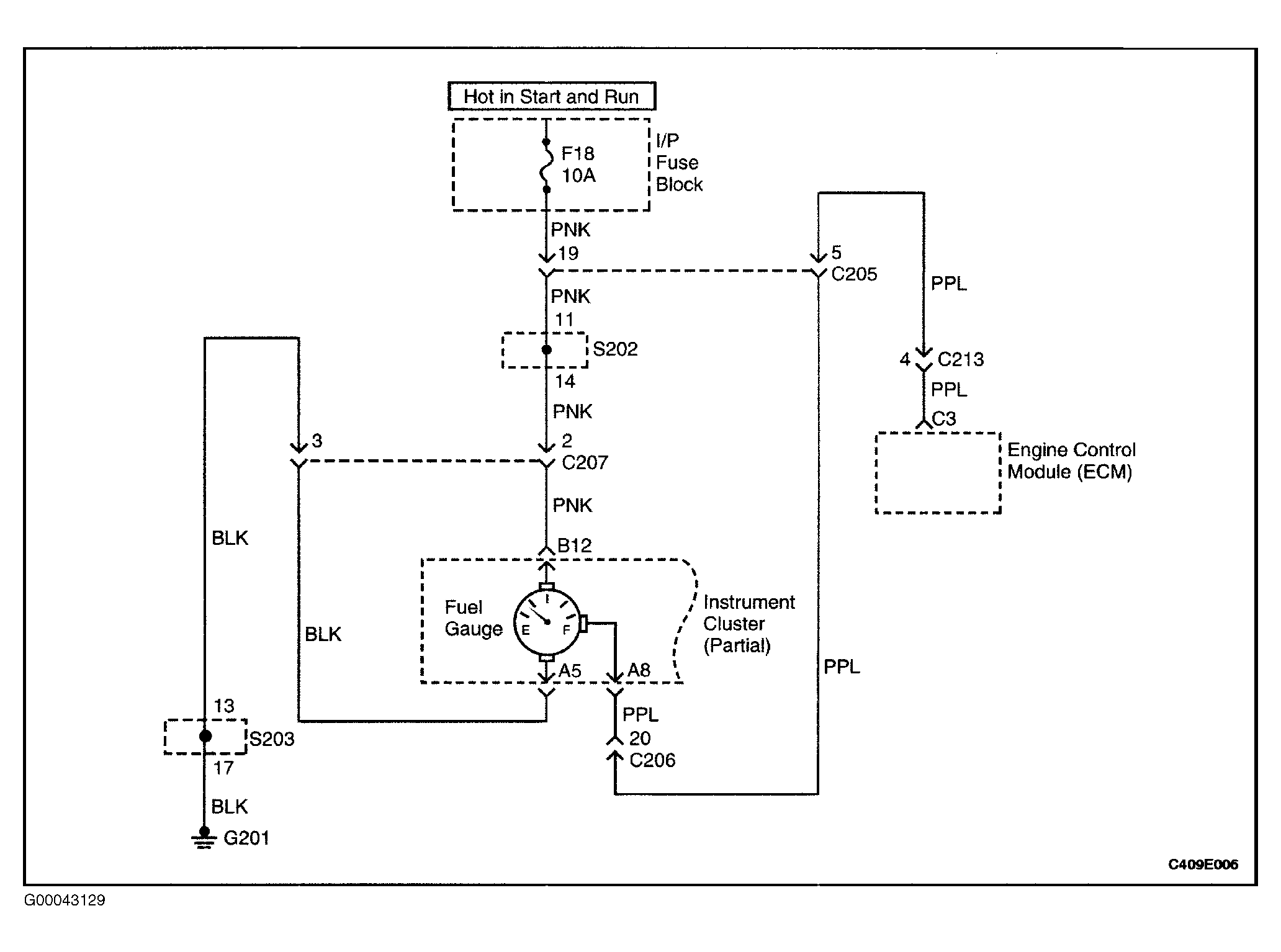

Fig 2: Fuel Gauge Wiring Diagram

Courtesy of DAEWOO MOTOR AMERICA, INC.
