Cigar Lighter
>>
Cigar Lighter Inoperative
Cigar Lighter Inoperative

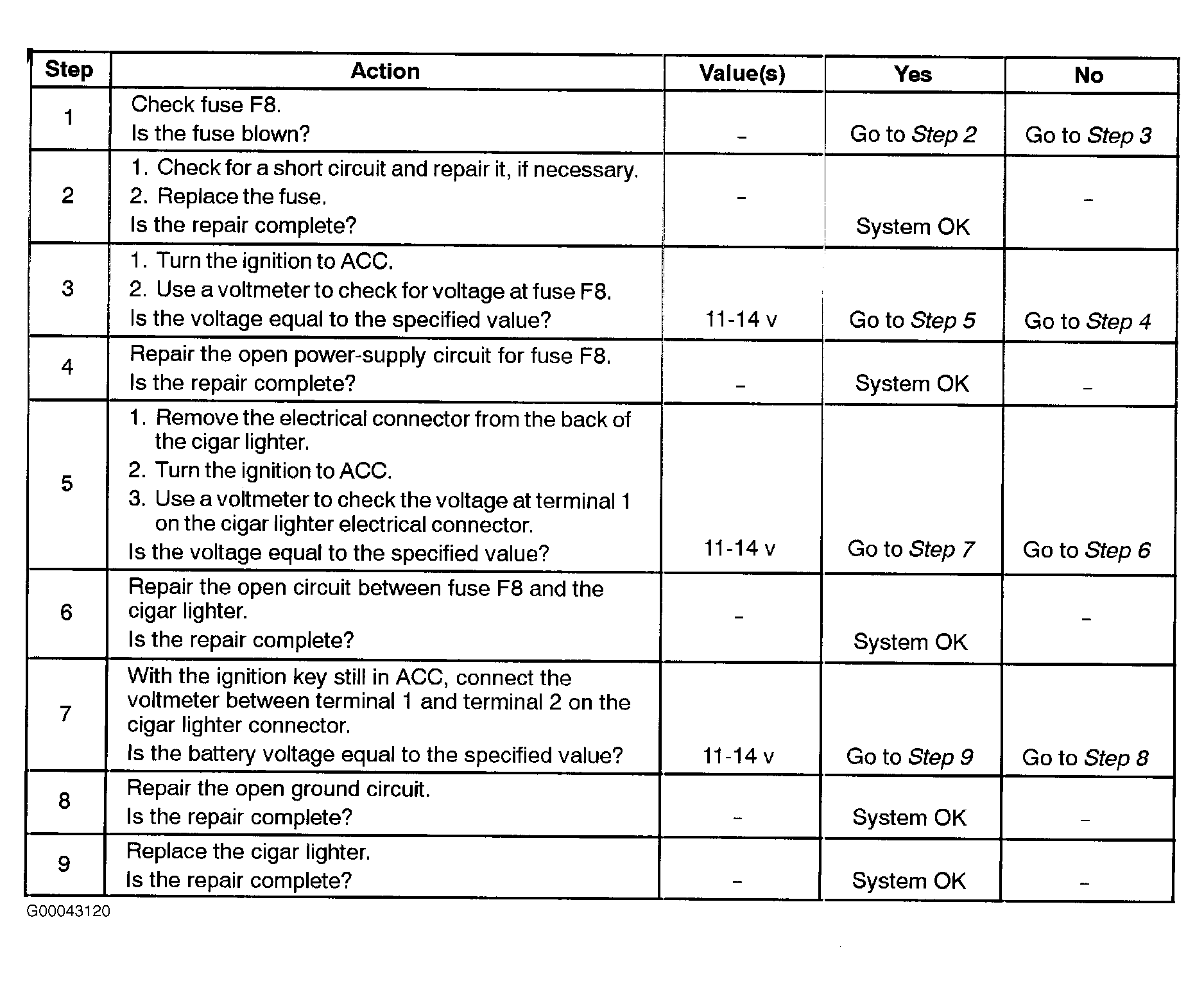

Fig 1: Cigar Lighter Inoperative
Courtesy of DAEWOO MOTOR AMERICA, INC.

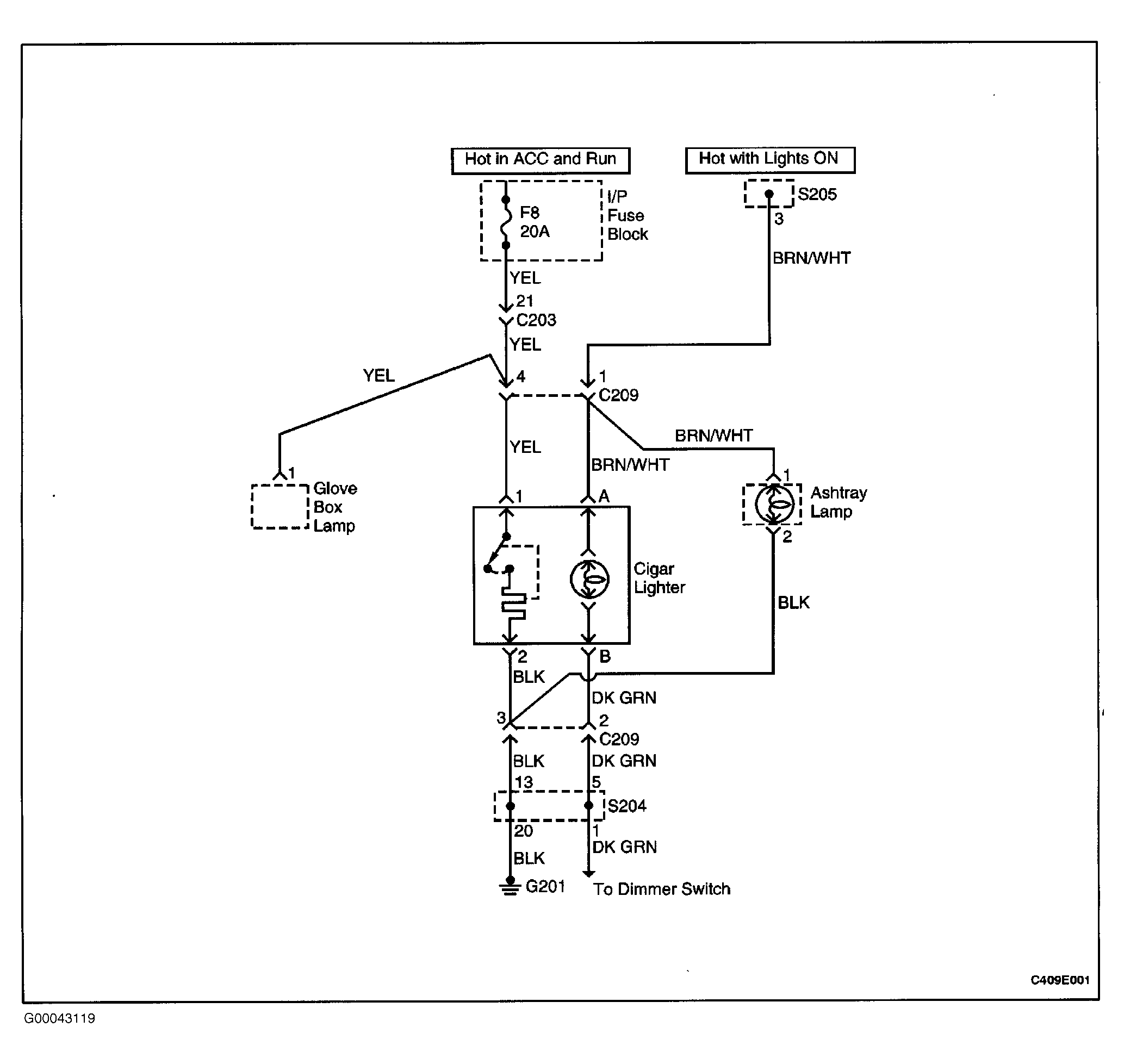

Fig 2: Cigar Lighter Wiring Diagram
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
