DTC 55/56: Left Rear Inlet & Outlet Valve Solenoid Fault

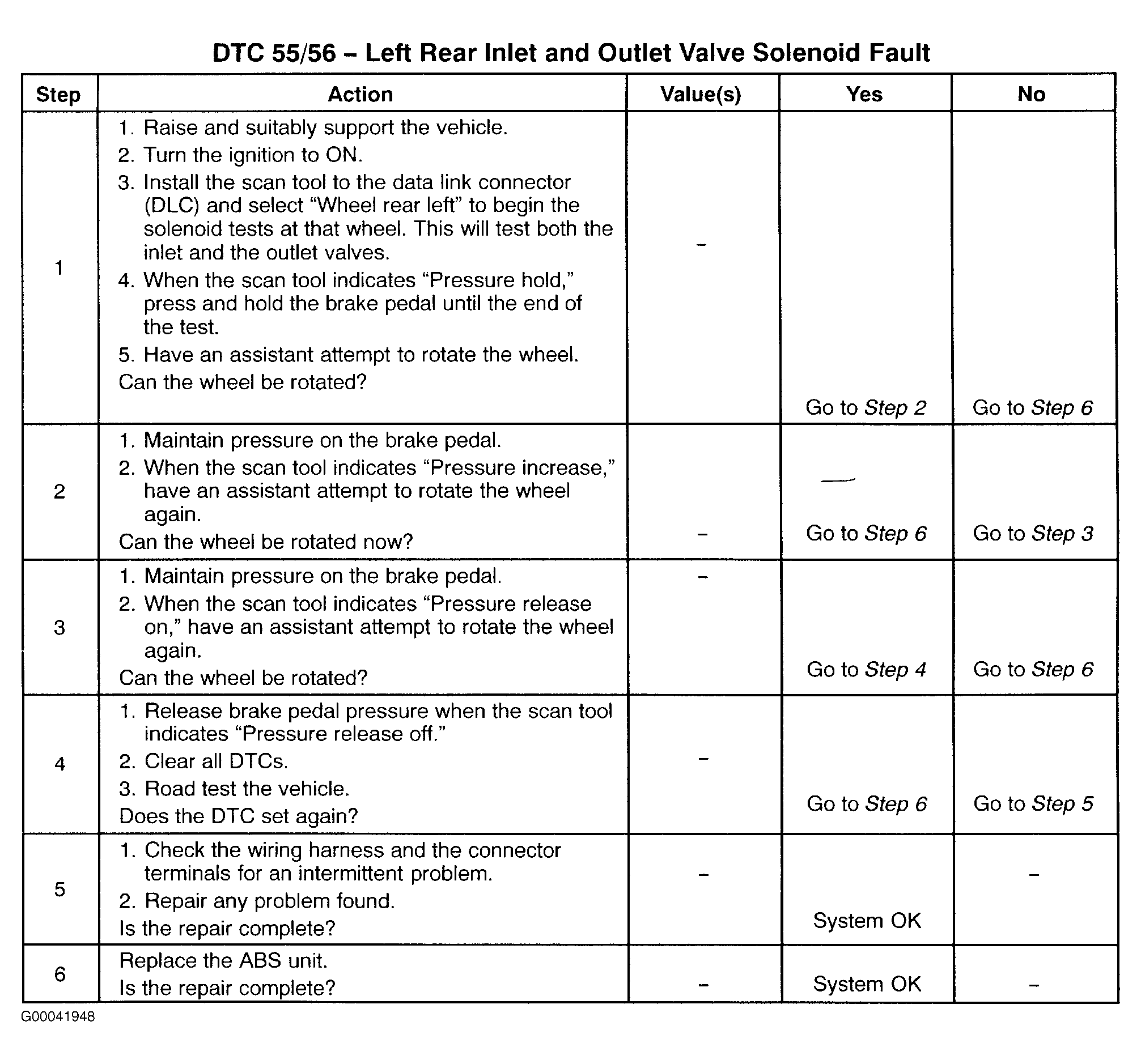

Fig 1: DTC 55/56: Left Rear Inlet & Outlet Valve Solenoid Fault (1 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.

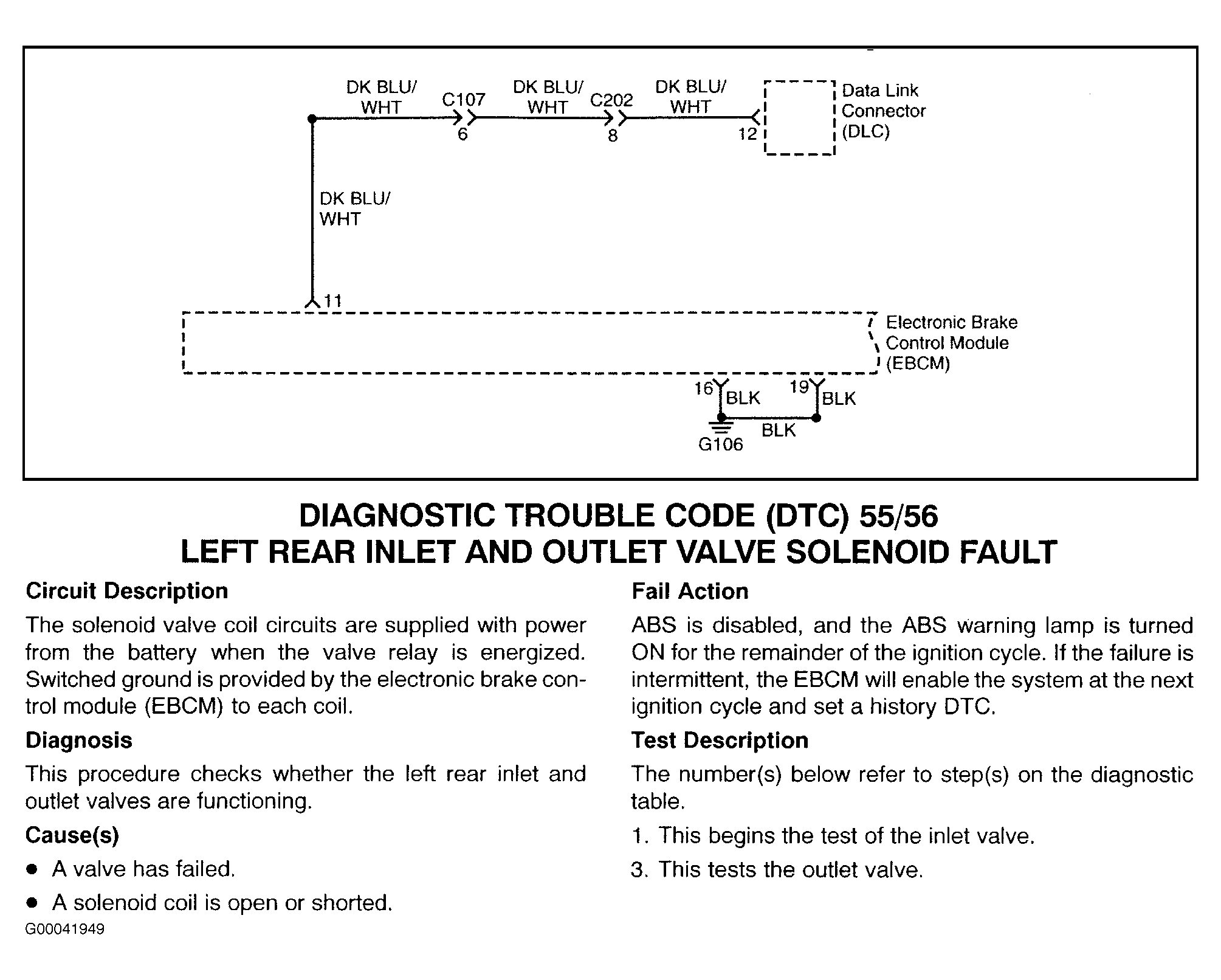

Fig 2: DTC 55/56: Left Rear Inlet & Outlet Valve Solenoid Fault - Steps 1-6 (2 Of 2)

Courtesy of DAEWOO MOTOR AMERICA, INC.
