Removal & Installation

Remove rear seatback and rear seat cushion. Remove bolts and seatback center hinge. Remove rear seat side bolster cushion. Remove bolts and seatback outer hinge. See Fig 1 and Fig 2 .
Install seatback outer hinge with bolts. Tighten rear seat hinge bolts to 12 N.m (106 INCH lbs.). Install rear seat side bolster cushion. Install seatback center hinge with bolts. Tighten rear seat hinge bolts to 12 N.m (106 INCH lbs.). Install rear seatback and rear seat cushion.

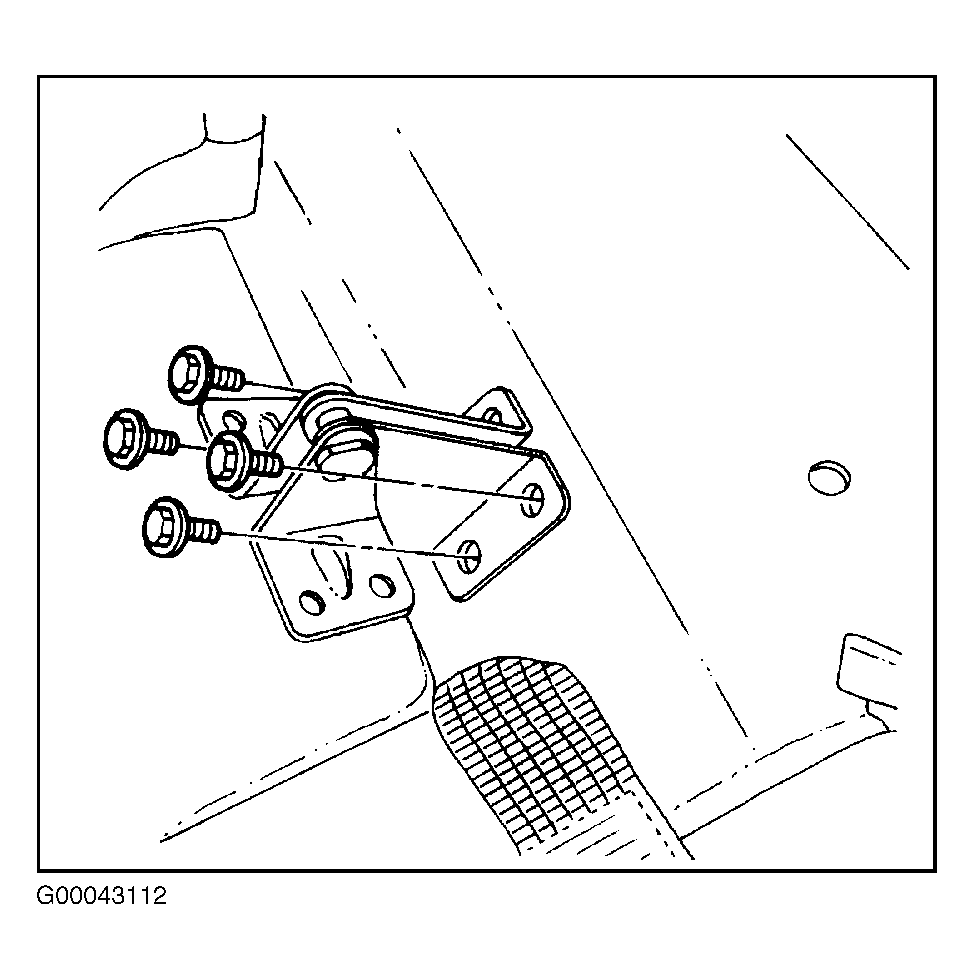

Fig 1: Split Rear Seatback Hinge (1 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.

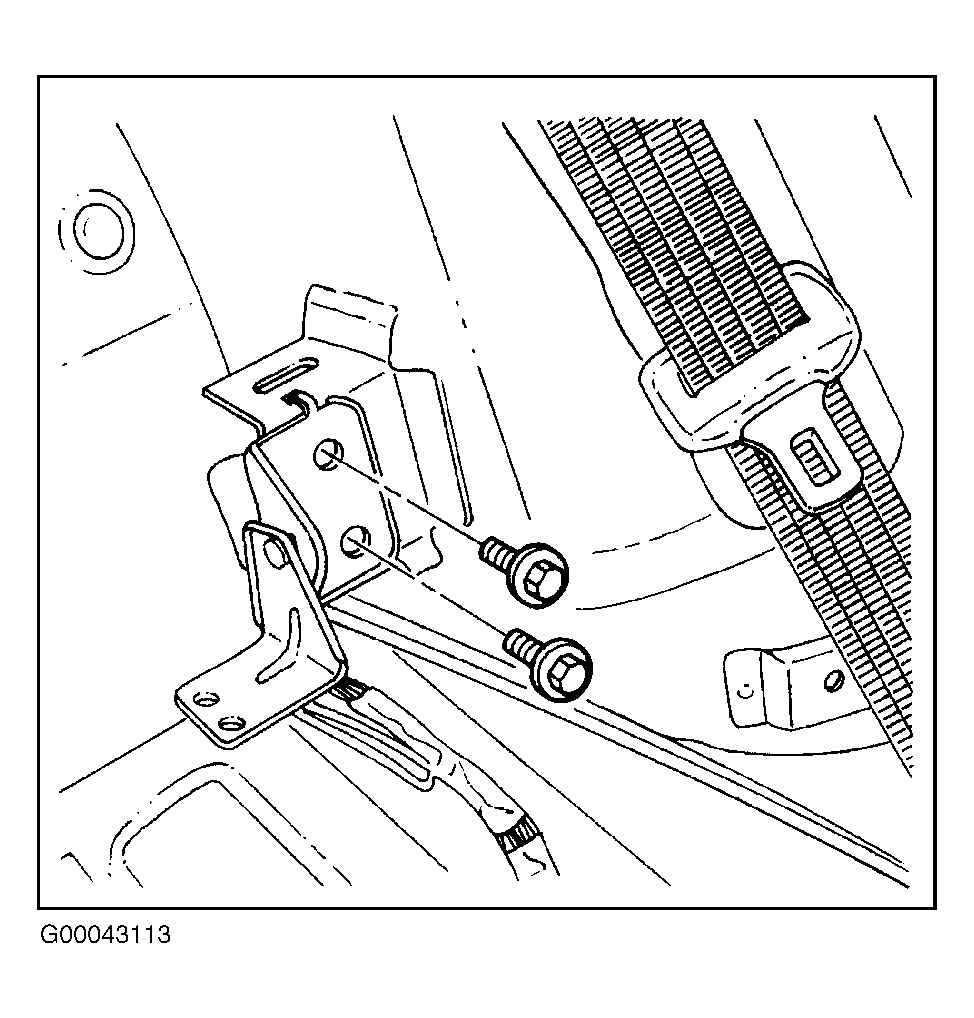

Fig 2: Split Rear Seatback Hinge (2 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.
