Home >> Daewoo >> 2000 >> Leganza CDX >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Power Seats >> Removal & Installation >> Power Driver's Seat Tilt Motors >> Removal & Installation

Removal & Installation

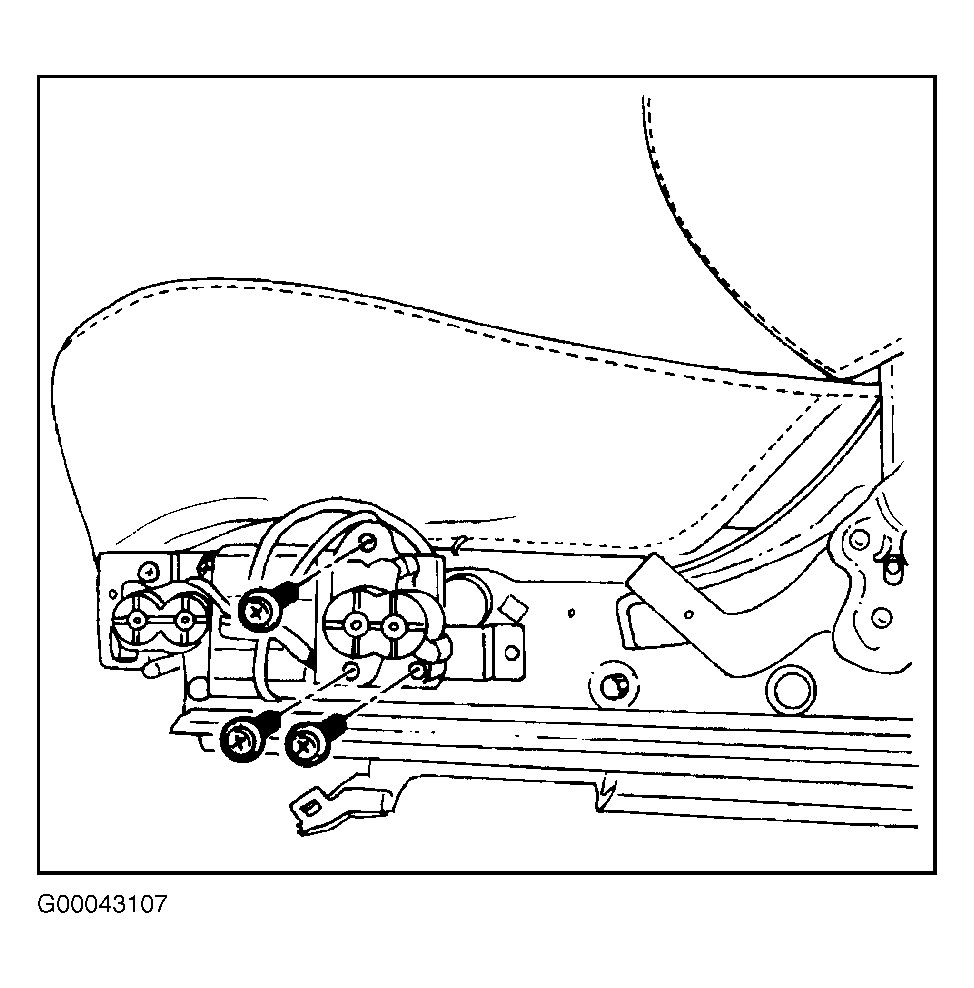

  1. Remove driver seat. Remove front seat trim. Remove bolts and motor. See Figure .
  2. Install motor with bolts. Tighten tilt motor bolts to 13 N.m (115 INCH lbs.). Install front seat trim. Install driver seat.
