Removal & Installation

  1. Remove instrument cluster dimmer switch assembly. Disconnect electrical connectors. See Fig 1 .
  2. Replace appropriate switch. Connect electrical connectors. Install instrument cluster dimmer switch assembly.

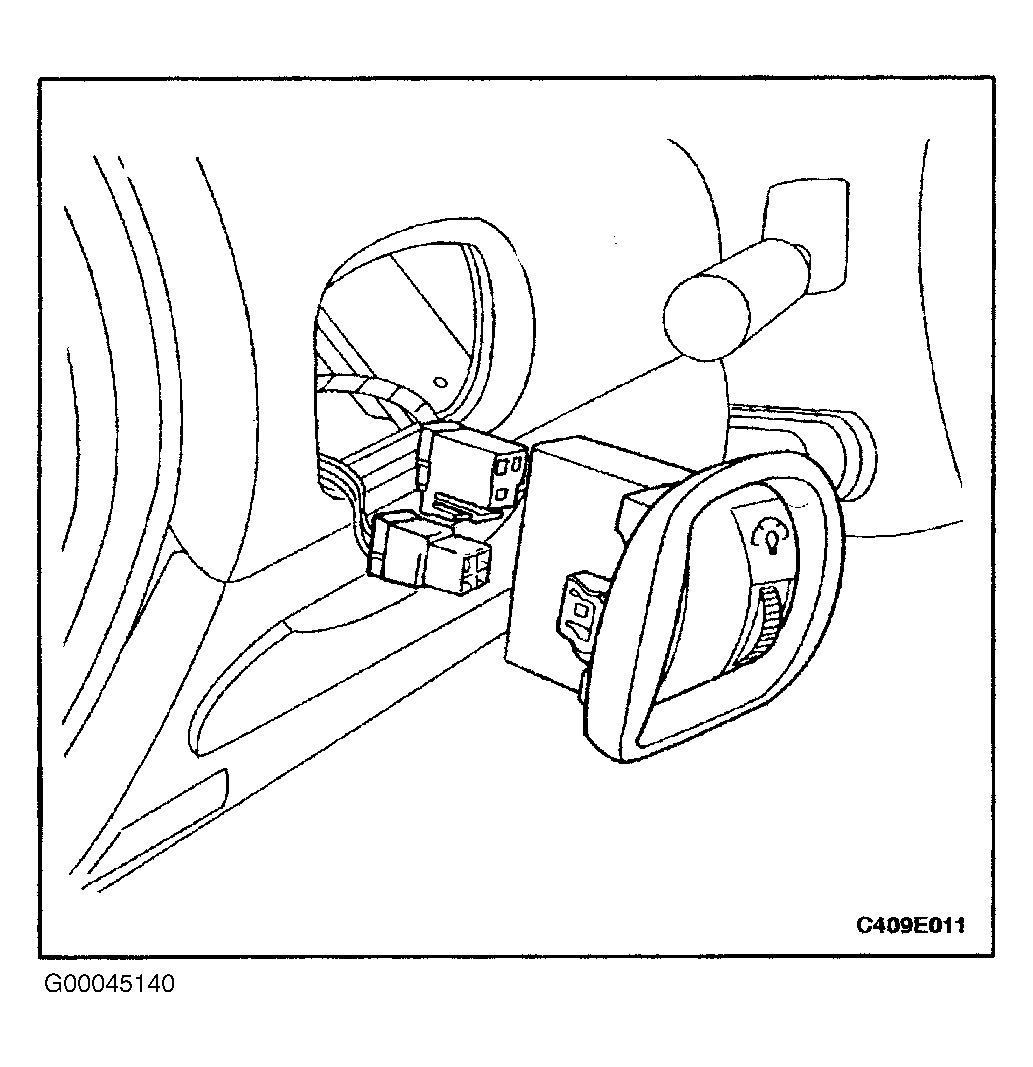

Fig 1: Instrument Cluster Dimmer Switch Removal & Installation
G00045140Courtesy of DAEWOO MOTOR AMERICA, INC.
