Wiring Diagrams

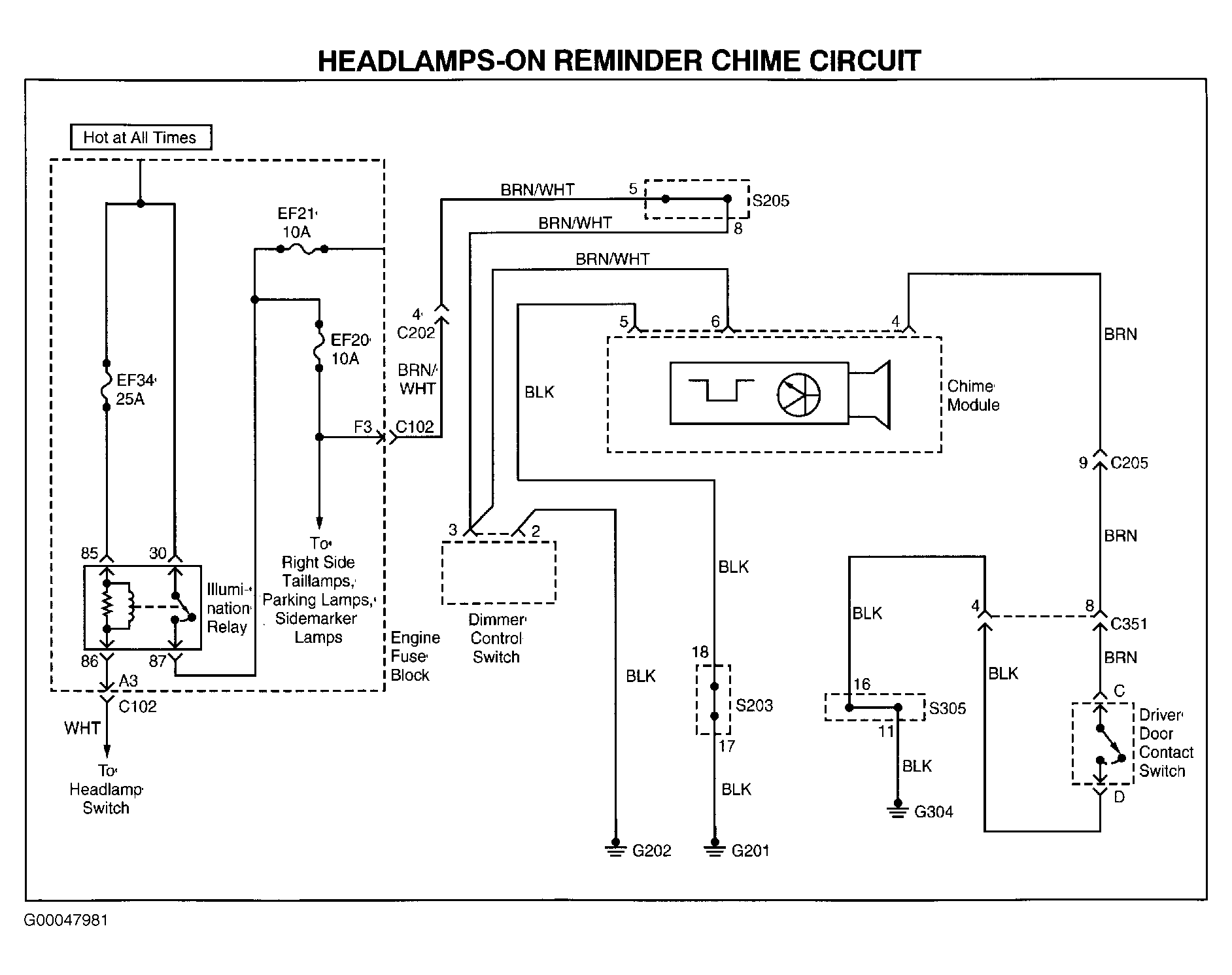

Fig 1: Headlamps-On Reminder Chime Circuit

G00047981

Courtesy of DAEWOO MOTOR AMERICA, INC.

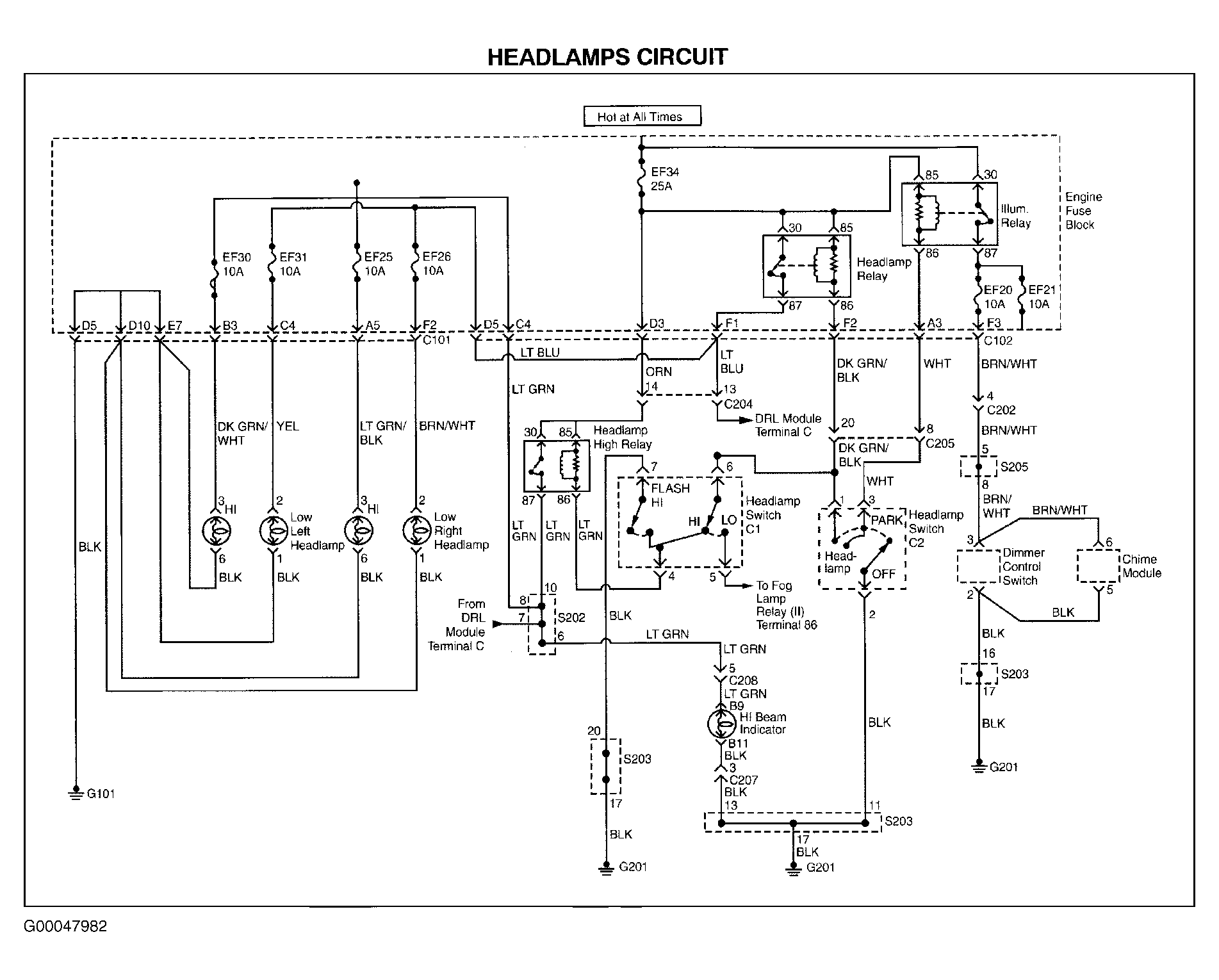

Fig 2: Headlamps Circuit

G00047982

Courtesy of DAEWOO MOTOR AMERICA, INC.

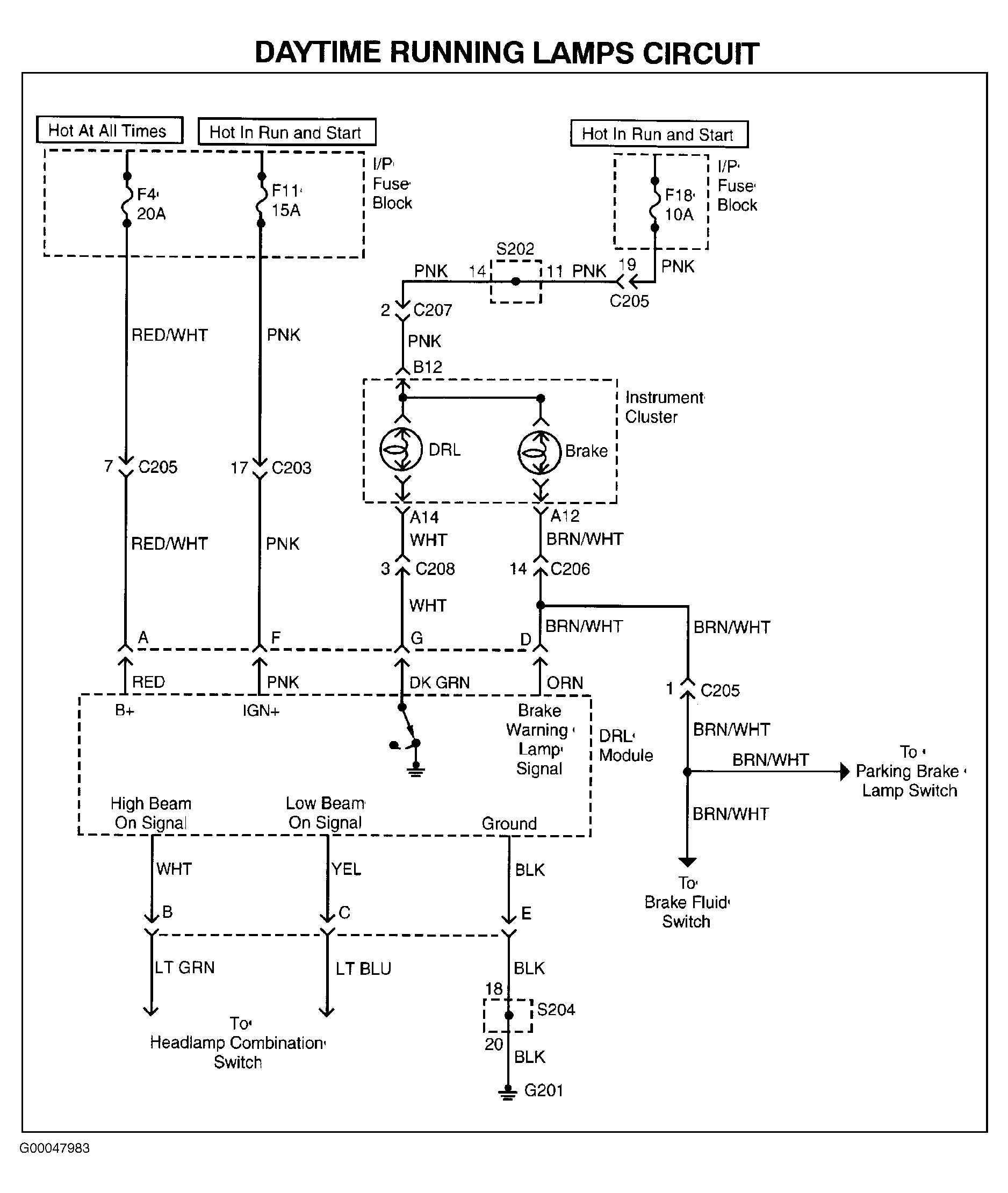

Fig 3: Daytime Running Lamps Circuit

G00047983

Courtesy of DAEWOO MOTOR AMERICA, INC.

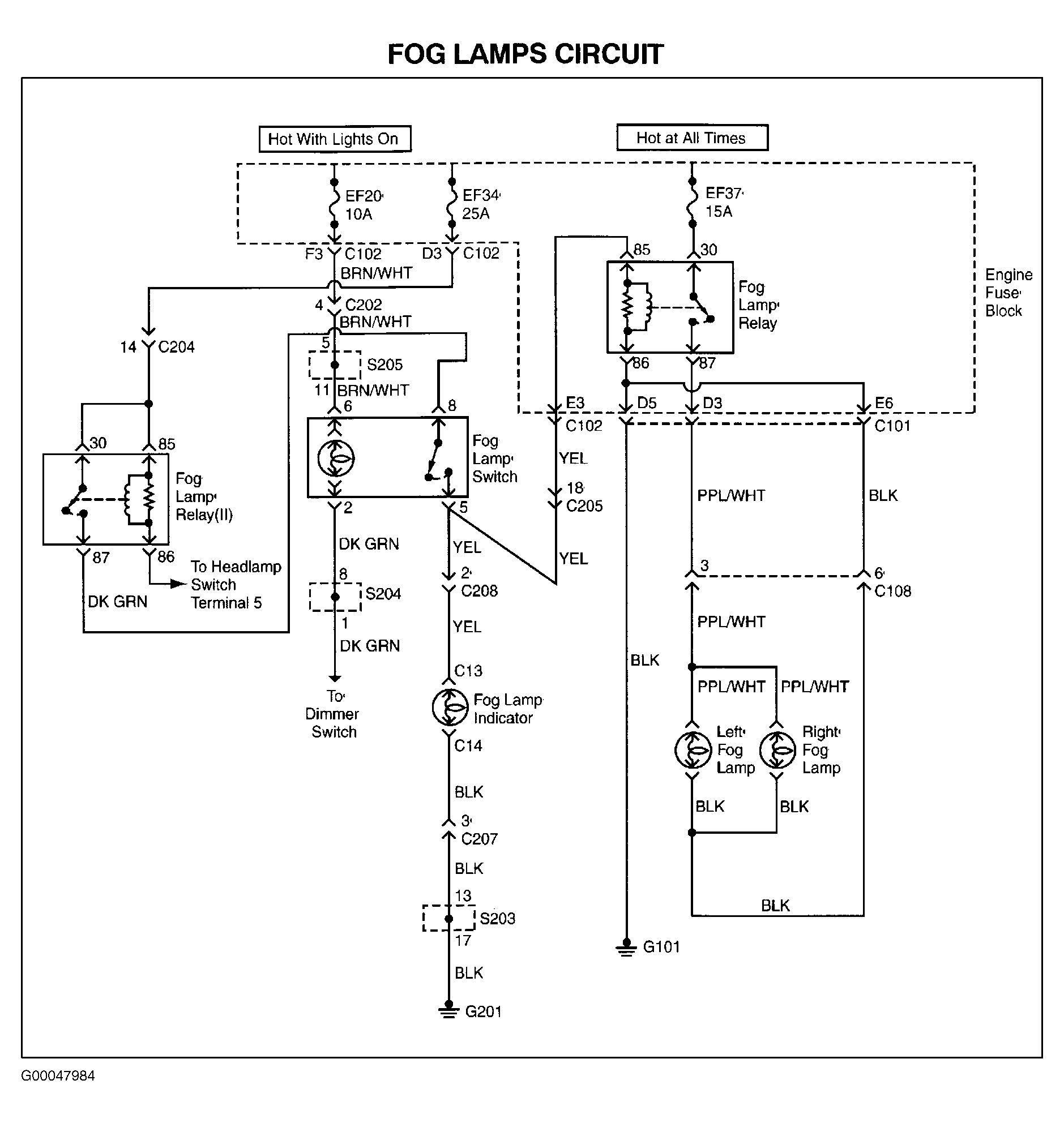

Fig 4: Fog Lamps Circuit

G00047984

Courtesy of DAEWOO MOTOR AMERICA, INC.

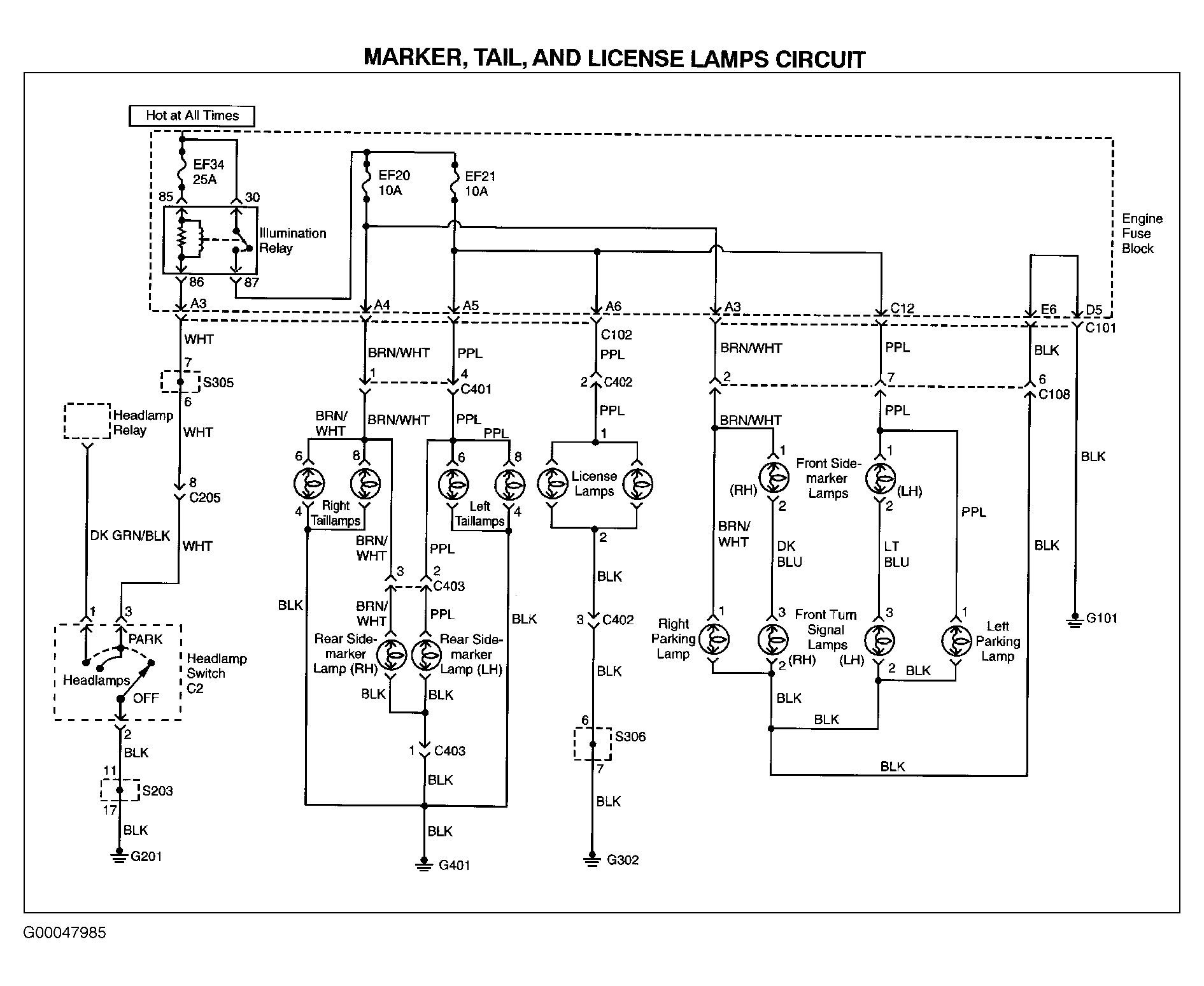

Fig 5: Marker, Tail, & License Lamps Circuit

G00047985

Courtesy of DAEWOO MOTOR AMERICA, INC.

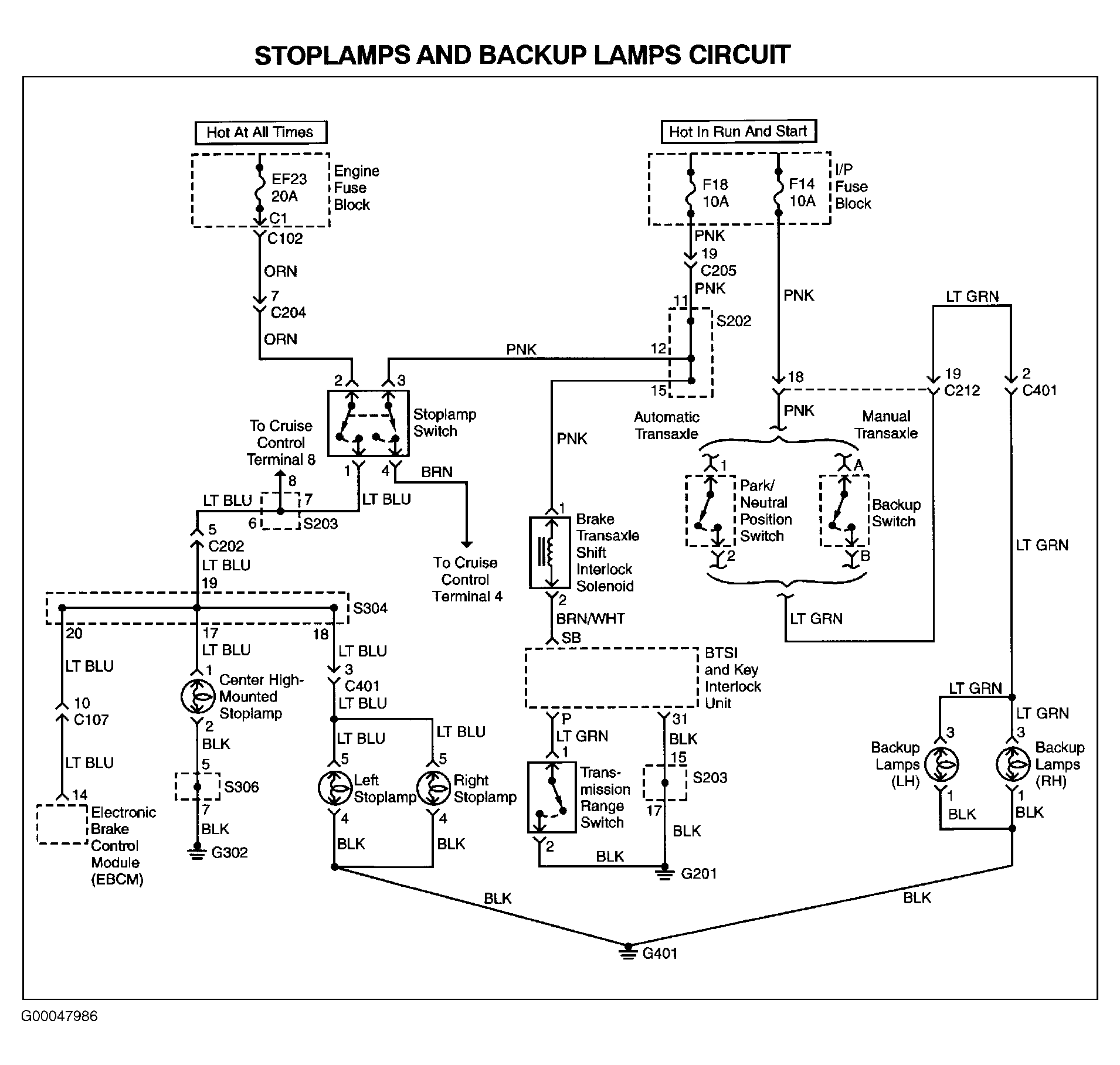

Fig 6: Stoplamps & Backup Lamps Circuit

G00047986

Courtesy of DAEWOO MOTOR AMERICA, INC.

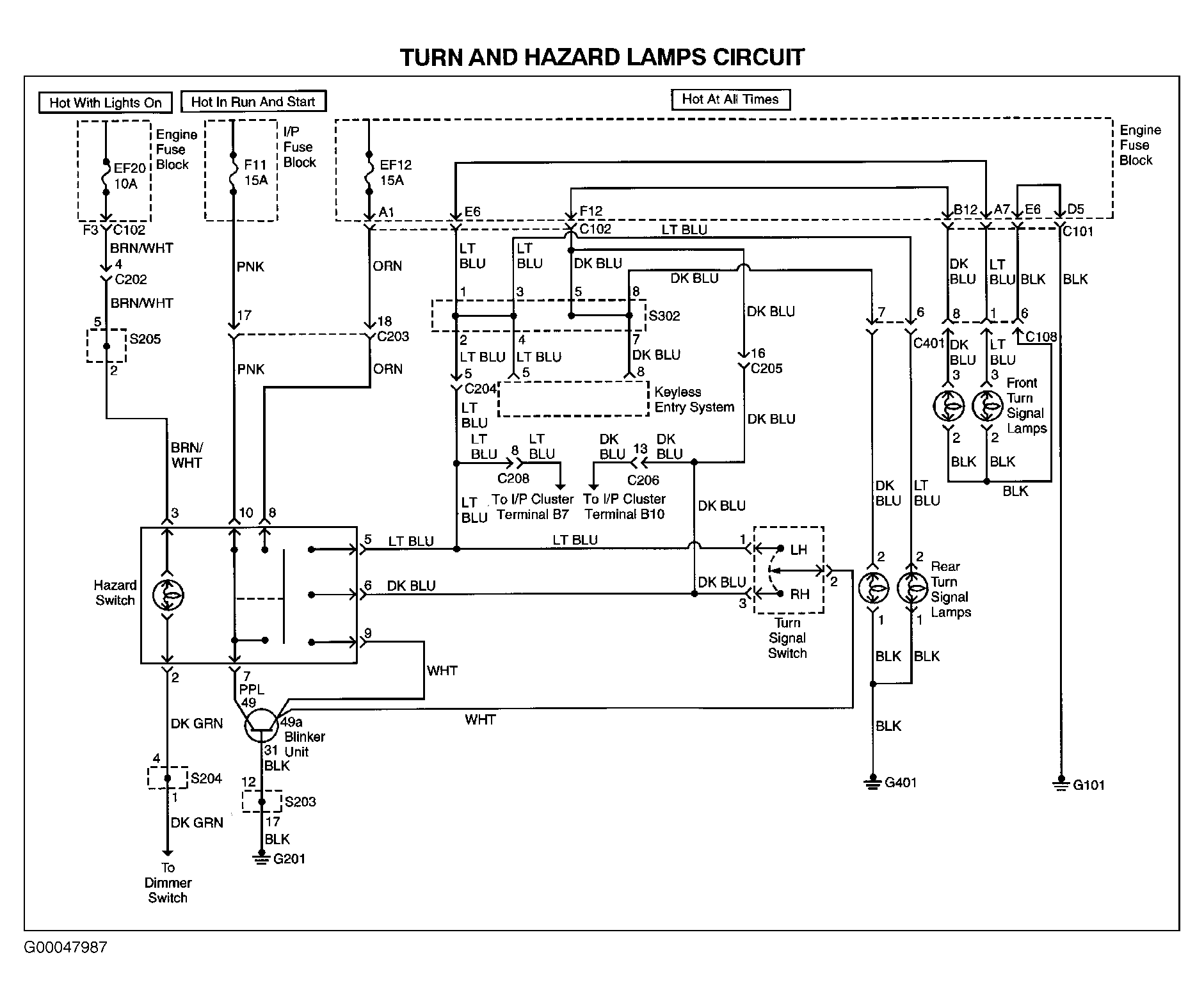

Fig 7: Turn & Hazard Lamps Circuit

G00047987

Courtesy of DAEWOO MOTOR AMERICA, INC.
