Accessories & Equipment
>>
Exterior Lights
>>
Symptom Diagnosis
>>
Turn Signal Lamps & Hazard Lamps Do Not Work
Turn Signal Lamps & Hazard Lamps Do Not Work

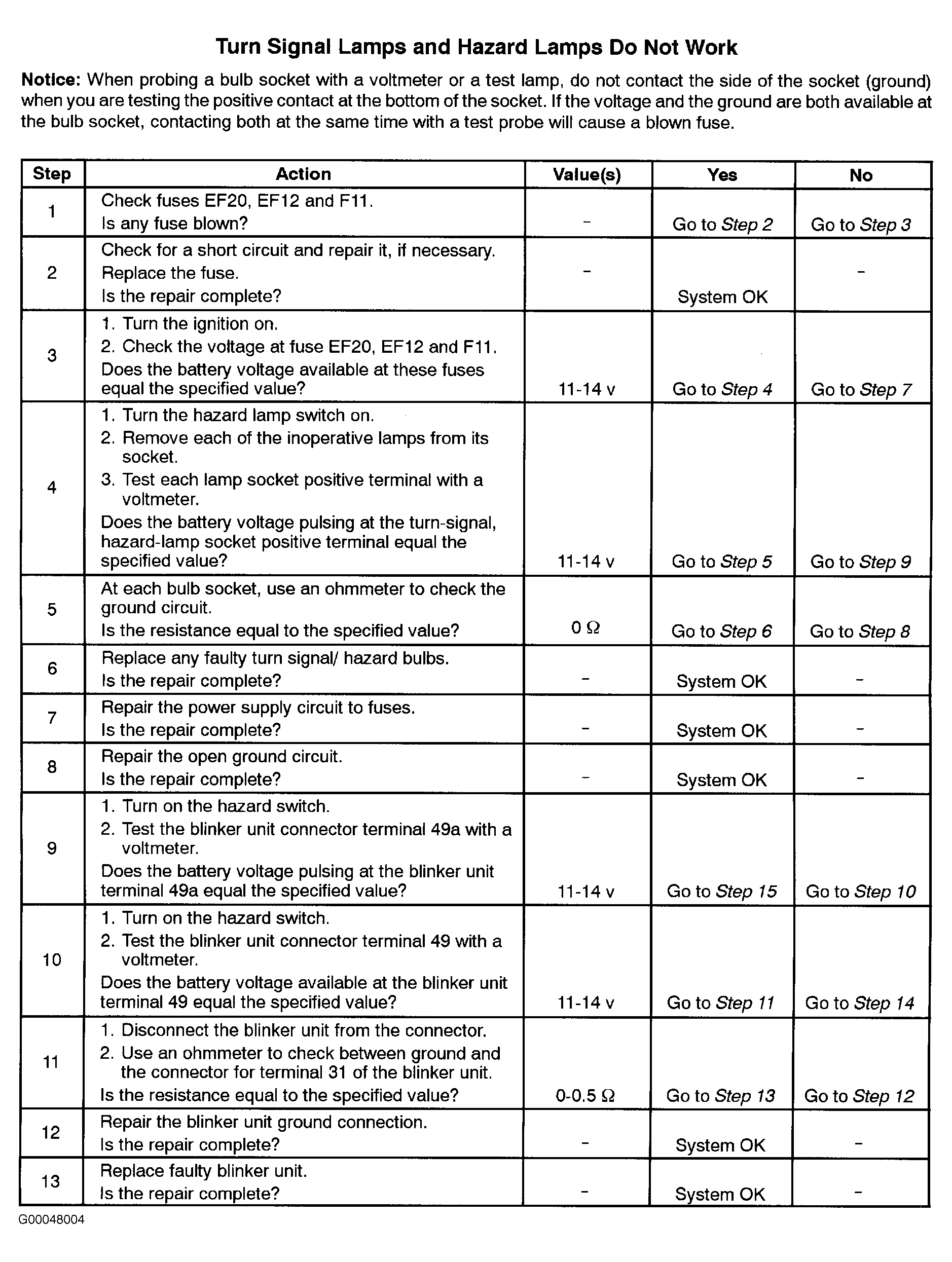

Fig 1: Turn Signal Lamps & Hazard lamps Do Not Work - Steps 1-13
Courtesy of DAEWOO MOTOR AMERICA, INC.

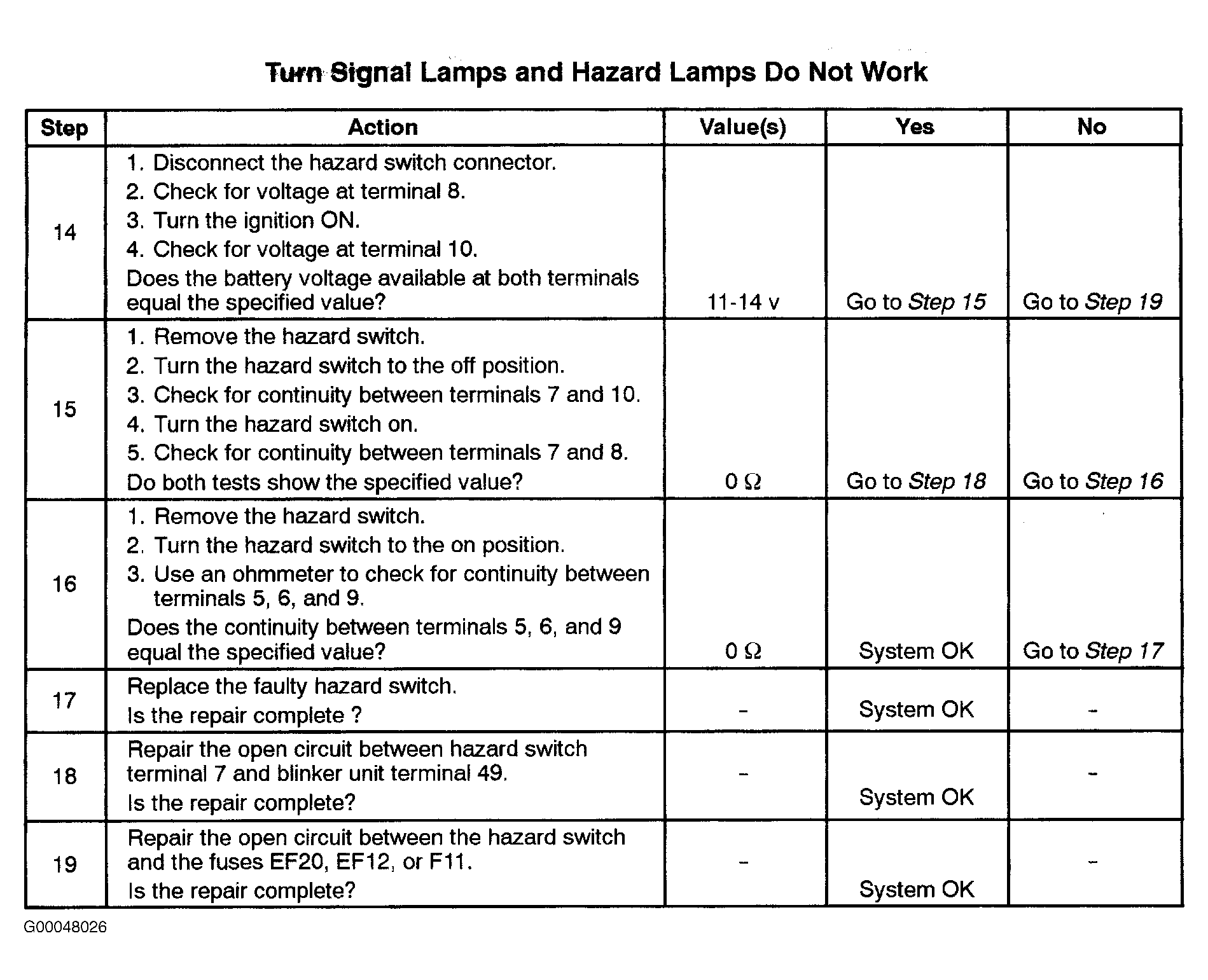

Fig 2: Turn Signal Lamps & Hazard Lamps Do Not Work - Steps 14-19
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
