Home >> Daewoo >> 2000 >> Leganza CDX >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Exterior Lights >> Symptom Diagnosis >> Tail, Stop, Turn & Backup Lamps

Tail, Stop, Turn & Backup Lamps

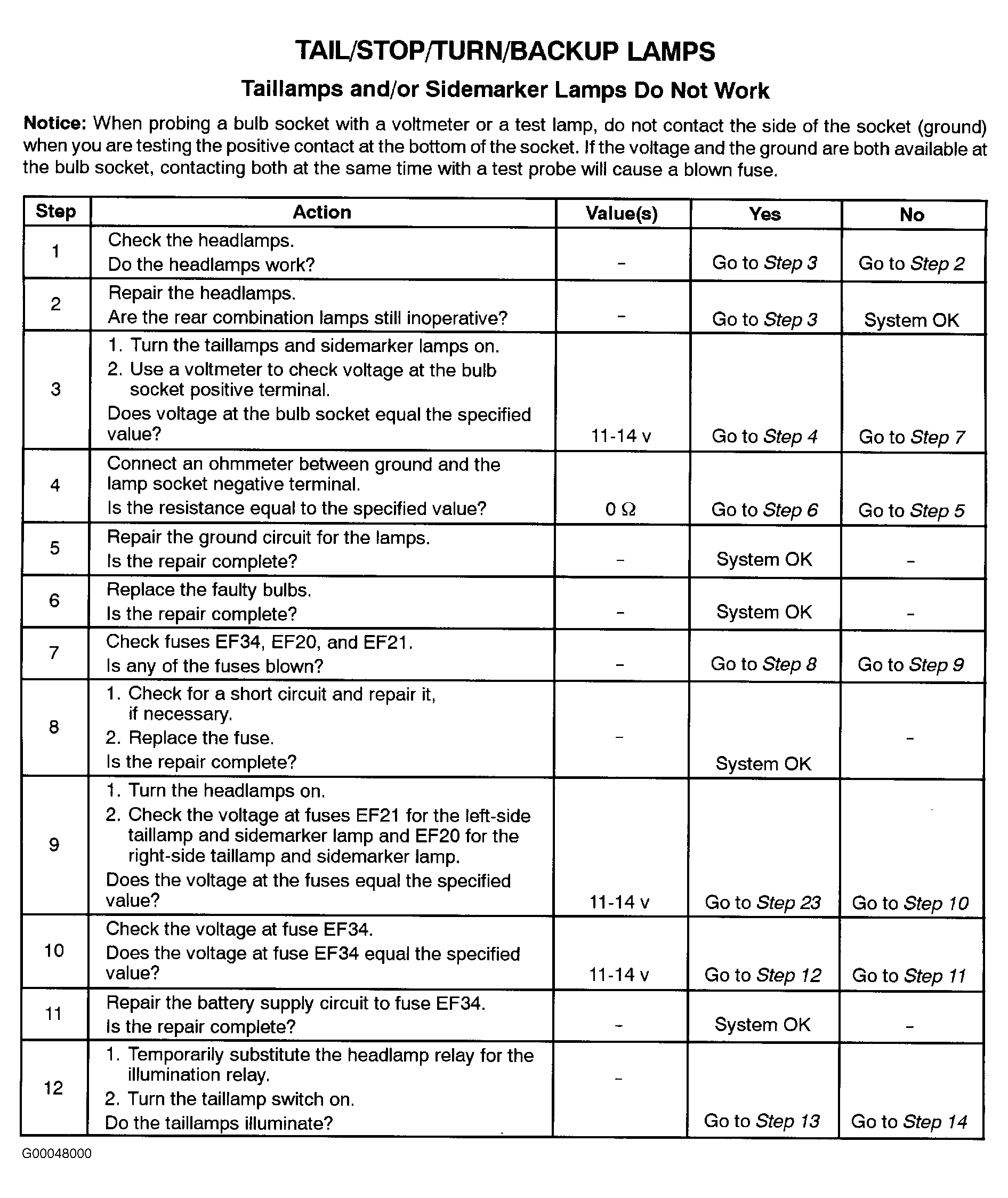

Fig 1: Taillamps & Or Side Marker Lamps Do Not Work - Steps 1-12 (1 Of 2)
G00048000Courtesy of DAEWOO MOTOR AMERICA, INC.

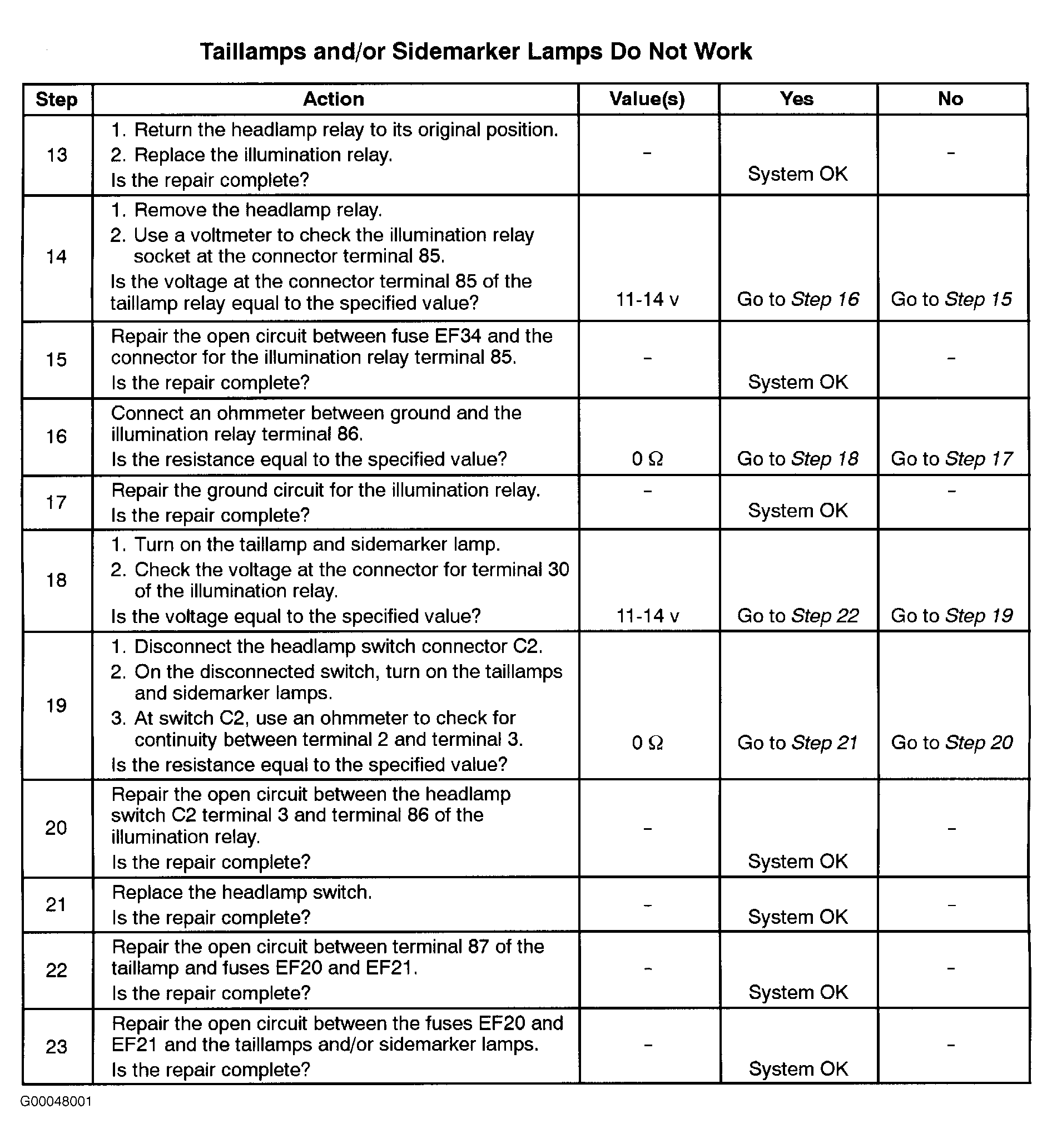

Fig 2: Taillamps & Or Side Marker Lamps Do Not Work - Steps 13-23 (2 Of 2)
G00048001Courtesy of DAEWOO MOTOR AMERICA, INC.
