Symptom Diagnosis: Headlamps

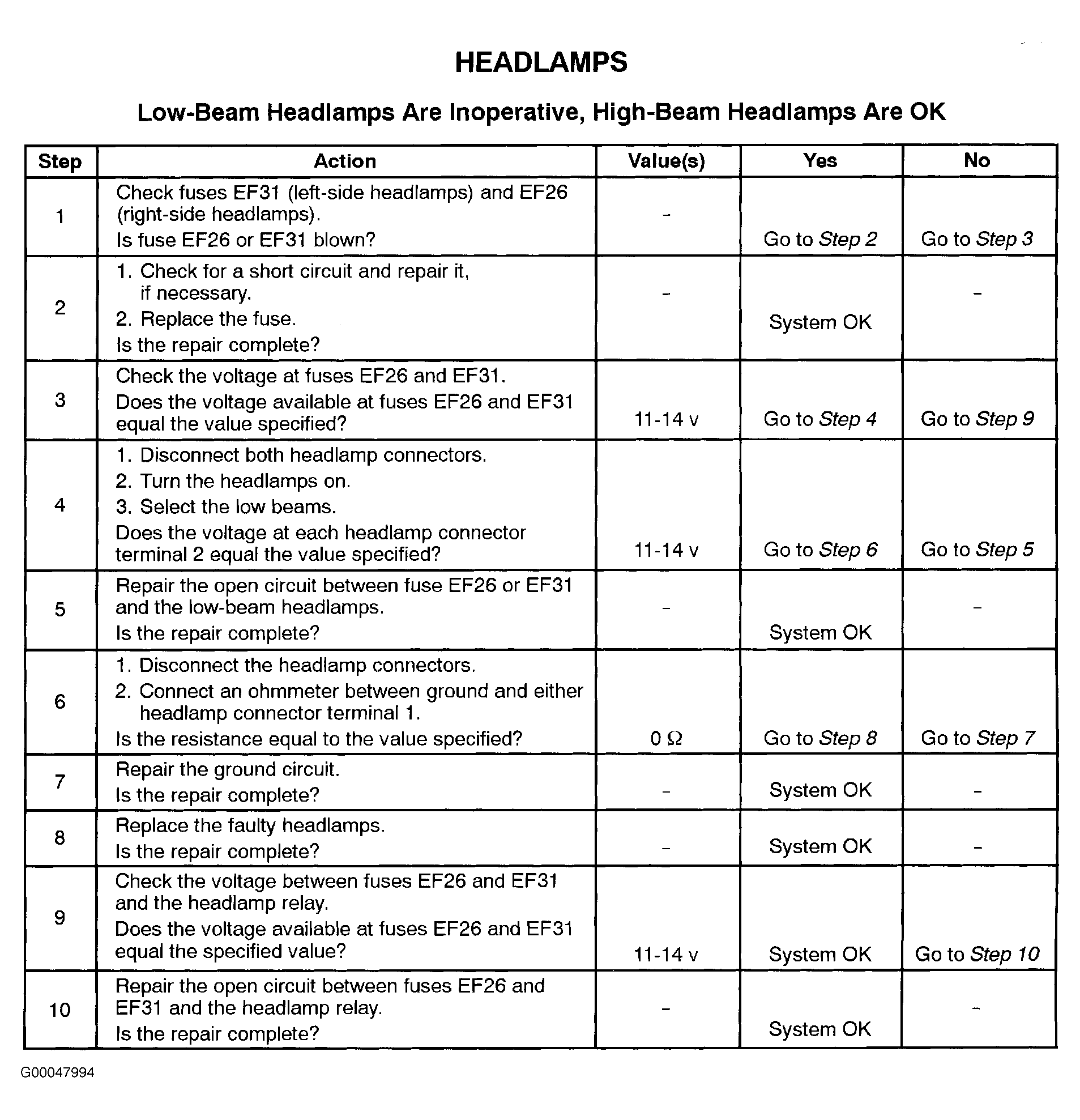

Fig 1: Low-Beam Headlamps Are Inoperative, High-Beam Headlamps Are Okay - Steps 1-10
Courtesy of DAEWOO MOTOR AMERICA, INC.

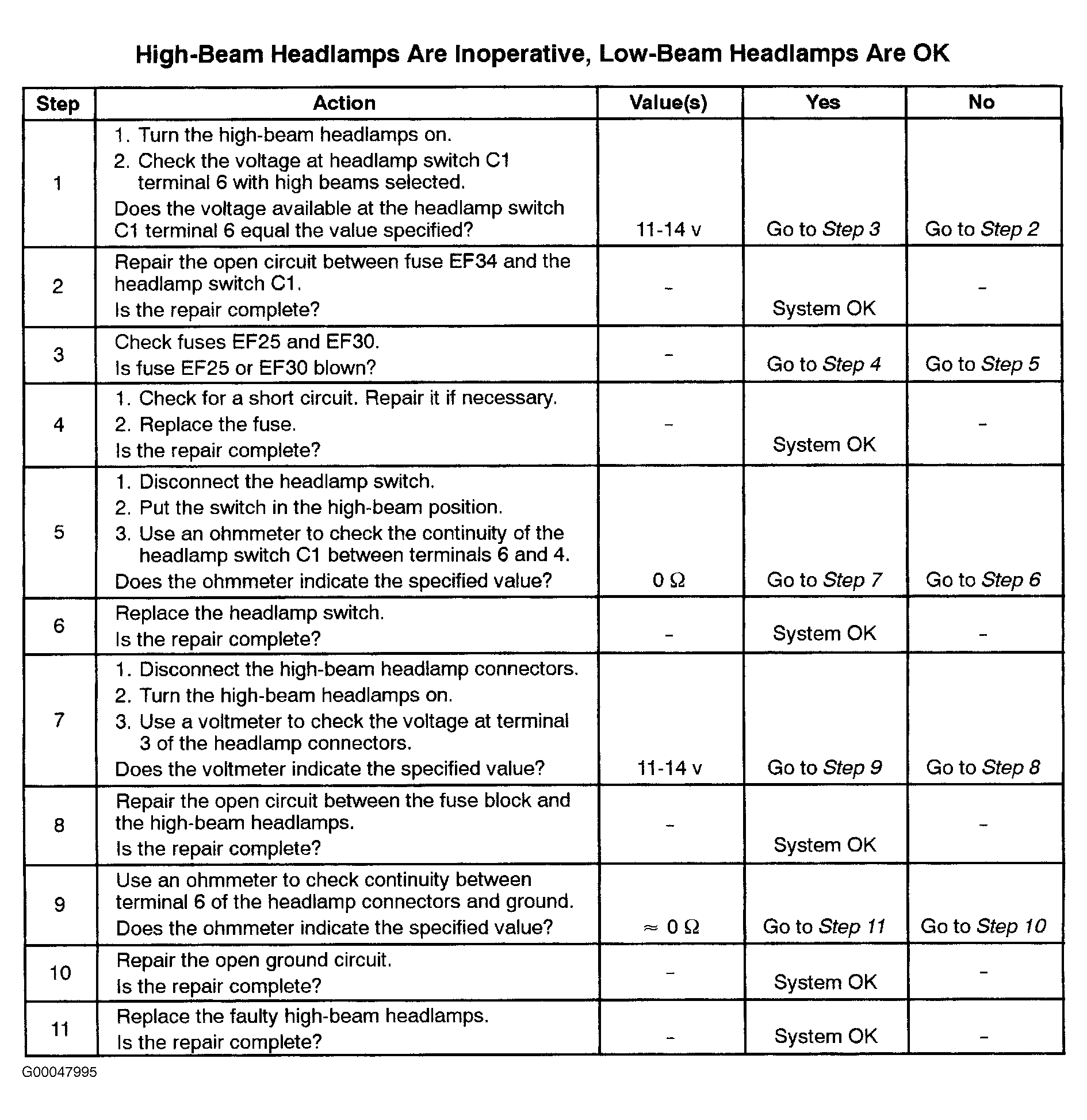

Fig 2: High-Beam Headlamps Are Inoperative, Low-Beam Headlamps Are Okay - Steps 1-11
Courtesy of DAEWOO MOTOR AMERICA, INC.

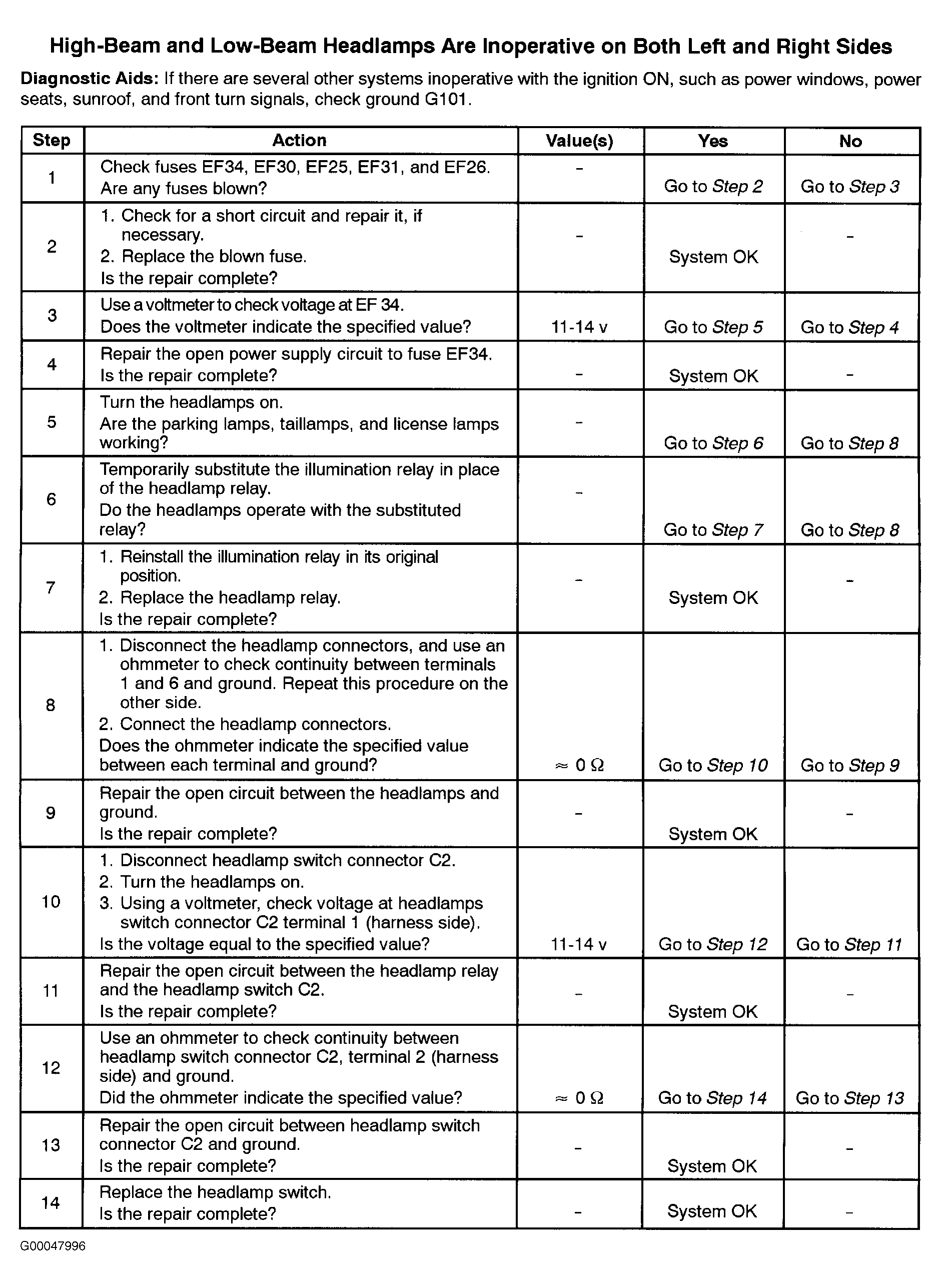

Fig 3: High-Beam & Low-Beam Headlamps Are Inoperative On Both Left & Right Sides - Steps 1-14
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
