Daytime Running Lamps
Daytime Running Lamps

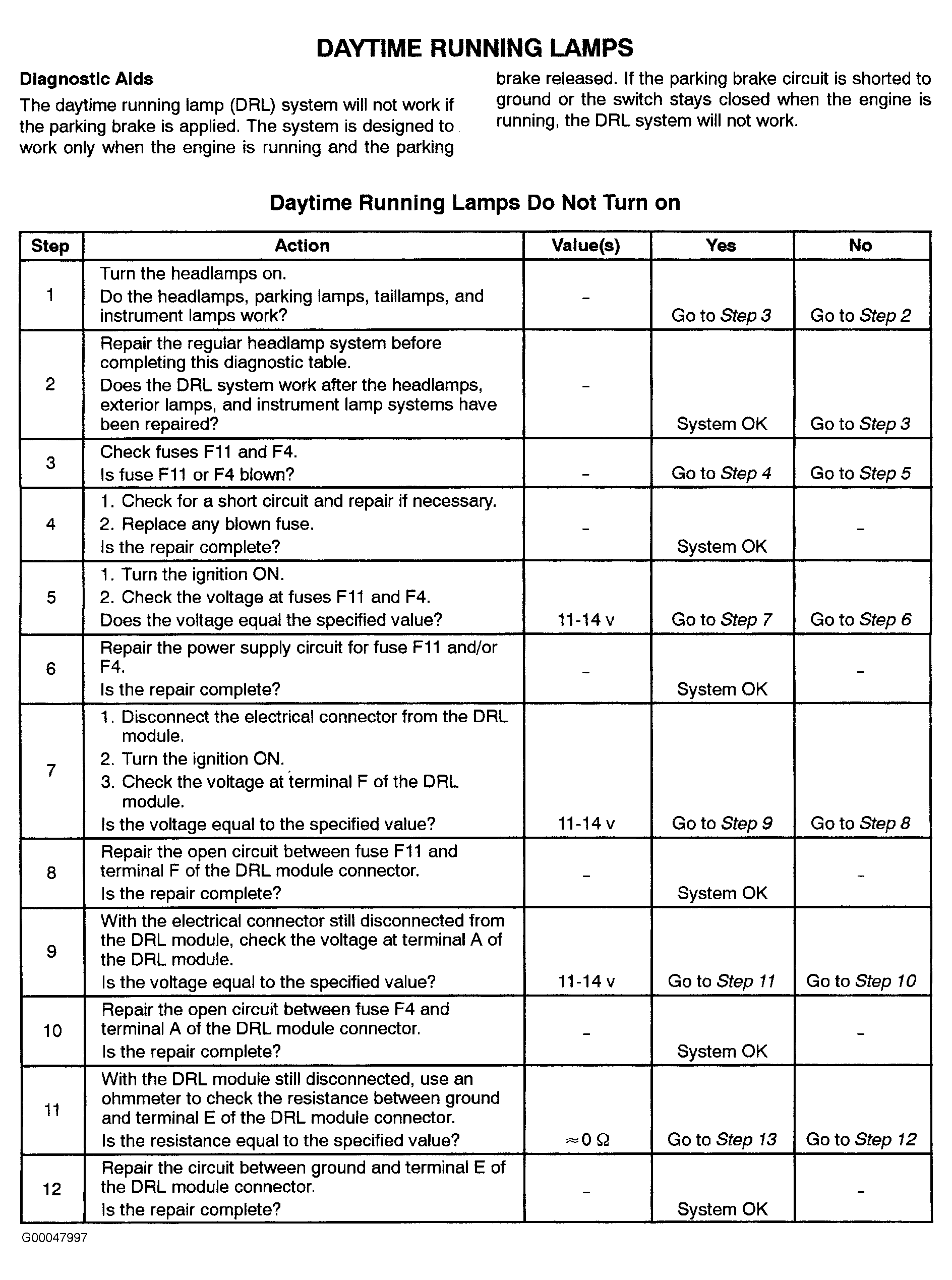

Fig 1: Daytime Running Lamps Do Not Turn On - Steps 1-12 (1 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.

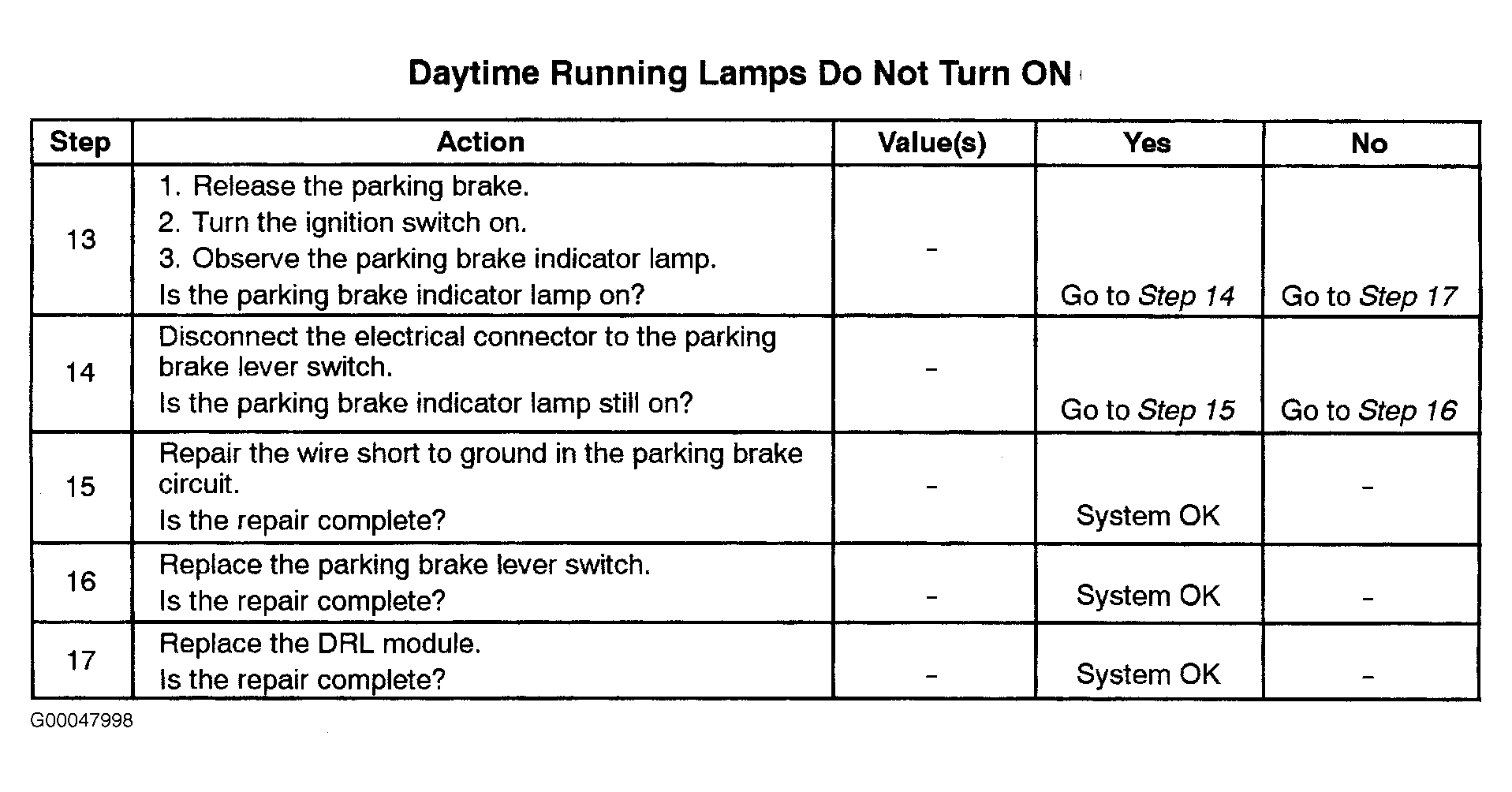

Fig 2: Daytime Running Lamps Do Not Turn On - Steps 13-17 (2 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
