Removal And Installation: Installation

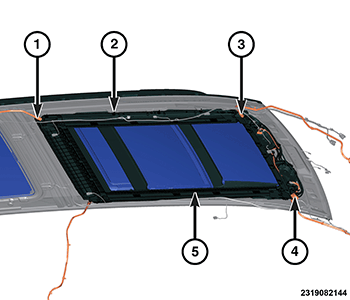

GC0178151Courtesy of CHRYSLER GROUP, LLC
  1. With the help of an assistant, position the sunroof into the vehicle and loosely install the sunroof to body bolts (2). Be certain the seal around the perimeter of the sunroof is seated evenly around the roof opening.
  2. Tighten the sunroof to body bolts to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Attach the front drain tubes (3) to the sunroof.
  4. Connect the sunroof harness connector (4).
  5. Attach the rear drain tubes (1) to the sunroof.
  6. Install the headliner. Refer to HEADLINER, REMOVAL AND INSTALLATION .
