Lever, Manual Park Release: Removal

WARNING: This page is about a different variant/trim than selected.

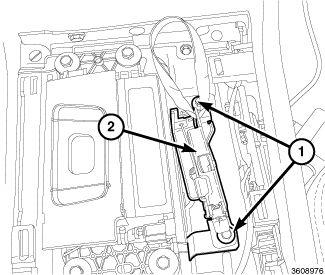

GC0152222Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Remove the shifter bezel.
  3. Remove the bolts (1) securing the lever mechanism (2) to the mounting bracket.
    GC0152223Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the cable (1) from the housing (2), while holding the release tab (3) open.
  5. Remove the cable from the lever and remove the lever from the vehicle.
