Cable, Manual Park Release: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect and isolate the negative battery cable.
  2. Apply the parking brake.
  3. Remove the Manual Park Release (MPR) lever cover.
    GC0152223Courtesy of CHRYSLER GROUP, LLC

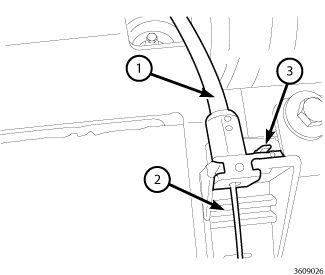

  4. Disconnect the MPR cable (1) from the housing (2), while holding the release tab (3) open.
  5. Disconnect the MPR cable from the lever.
  6. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
    GC0152189Courtesy of CHRYSLER GROUP, LLC

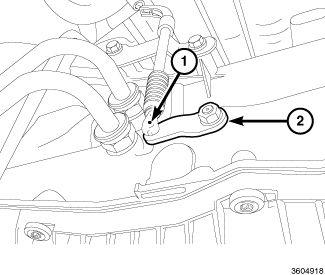

  7. Disconnect the MPR cable (1) from the MPR lever (2).
    GC0152190Courtesy of CHRYSLER GROUP, LLC

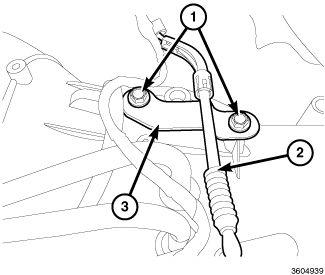

  8. Remove the MPR cable bracket bolts (1) and remove the MPR cable (2) from the vehicle.
