Panel, A-Pillar Trim: Removal

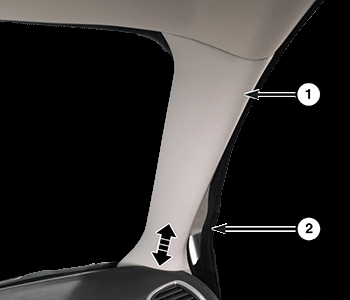

GC0170858Courtesy of CHRYSLER GROUP, LLC
  1. Release the weatherstrip (2) from the door opening.
  2. By hand pull at the top of the A-pillar trim panel (1) and release it from the body. Do not remove the A-pillar trim.
  3. Pull the A-pillar trim panel upward to separate it from the instrument panel.
    GC0162394Courtesy of CHRYSLER GROUP, LLC
  4. Using a flat bladed tool (2), press the tab to disengage the tether (1) and slide it out of A-pillar trim panel (3).
