Console, Floor: Removal

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable.
Using a trim stick or equivalent, remove the shifter bezel (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the two screws (2) securing the storage bin (1).
Pull the storage bin out to release the retaining clips.
Disconnect the wire harness connectors and remove the storage bin.

Courtesy of CHRYSLER GROUP, LLC

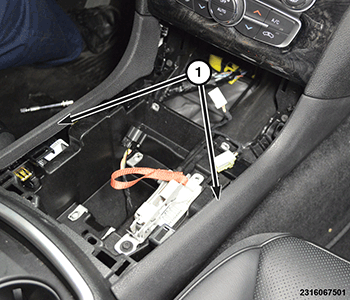

Using a trim stick or equivalent, remove the floor console side close out panels (1).

Courtesy of CHRYSLER GROUP, LLC

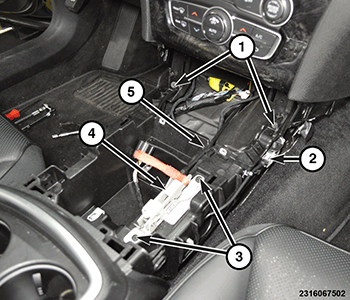

Disconnect the wire harness connector (2).
Remove the two screws (1) at the front of the floor console.
Unclip the manual park release cable (5).
Remove the two screws (3) and position the manual park release (4) aside.

Courtesy of CHRYSLER GROUP, LLC

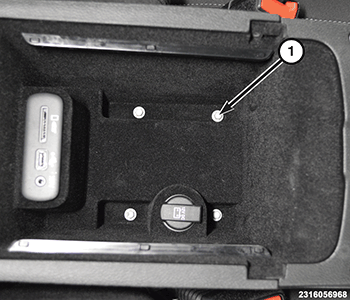

Open the floor console lid and remove the coin holder bin and the mat bin.
Remove the four screws (1) from the rear bin that secure the floor console to the floor.

Courtesy of CHRYSLER GROUP, LLC

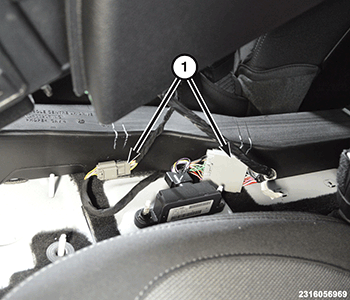

Slide the floor console slightly rearward and tilt up. Disconnect the wire harness connectors and remove the floor console.
