Bezel, Instrument Panel, Center: Installation

Courtesy of CHRYSLER GROUP, LLC

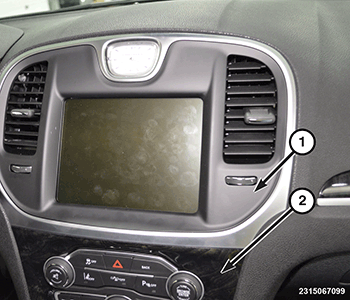

1. Connect the wire harness connector and position the instrument panel center bezel.
2. Hand tap to engage the retaining clips.
3. Install the Integrated Center Stack (ICS) (2). Refer to MODULE, INTEGRATED CENTER STACK (ICSM), REMOVAL .
