Shield, Splash, Rear Wheelhouse: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Raise and support the vehicle.
2. Remove the wheels from the side of the vehicle being serviced. Refer to REMOVAL .
3. Remove the rear portion of the body side cladding from the side of the vehicle being serviced.
4. Remove the nuts (1), bolt (2) and the push-pins (4), that secure the lower rear wheelhouse shield (3) to the body.
5. Remove lower rear wheelhouse shield from the vehicle.

   Courtesy of CHRYSLER GROUP, LLC

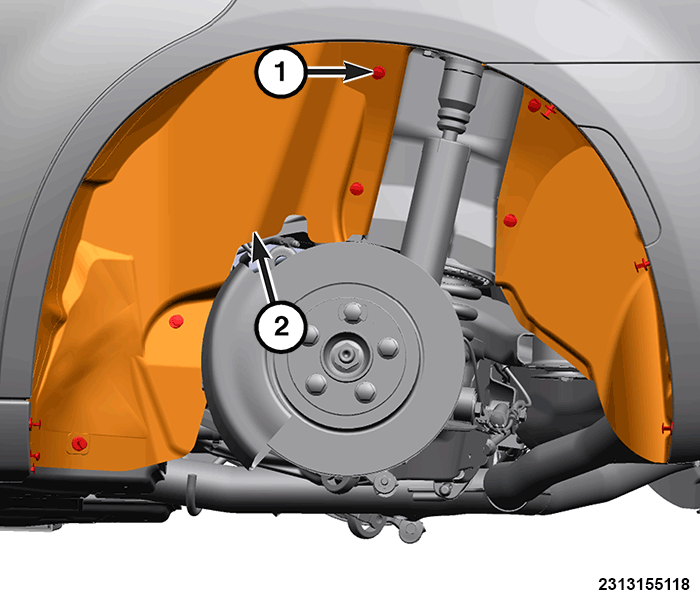

6. Remove the push-pins (1) that secure the rear wheelhouse shield (2) to the body.
7. Remove the rear wheelhouse shield from the vehicle.
