Lamp, License Plate: Removal: Lamp

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

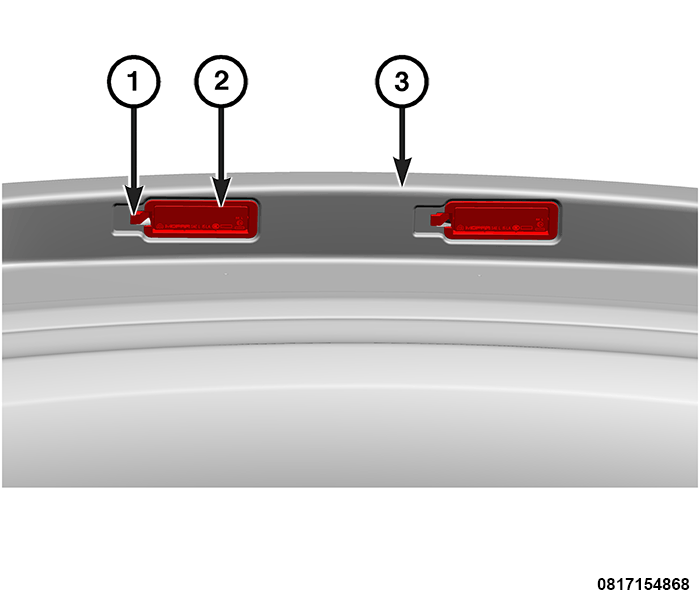

    GC0192530Courtesy of CHRYSLER GROUP, LLC
  2. Release the locking tab (1) that secure the license plate lamp (3) to the rear fascia (3).

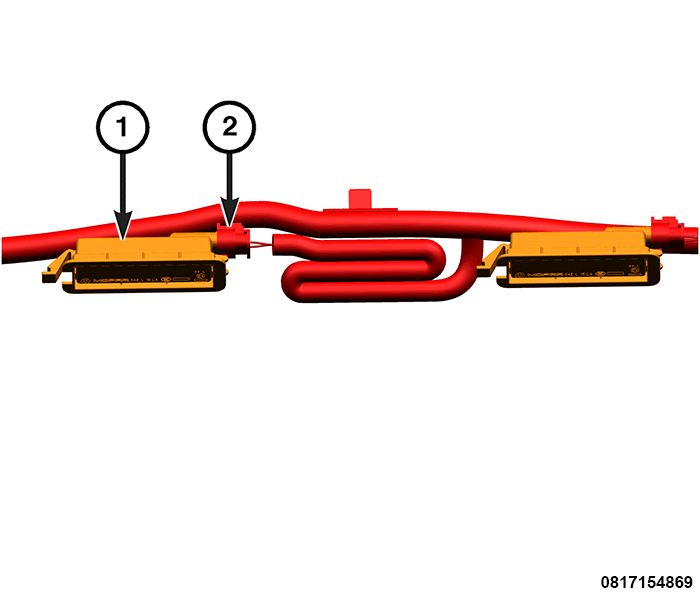

    GC0192526Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the license plate lamp wire harness connector.
  4. Remove the license plate lamp from the vehicle.
