Tube, Sunroof Drain: Removal: Rear

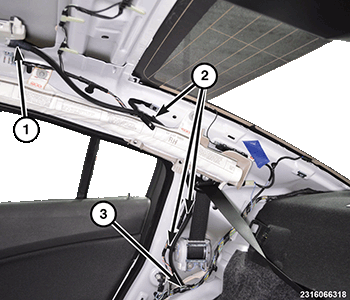

GC0170681Courtesy of CHRYSLER GROUP, LLC
  1. Lower the rear of the headliner. Refer to HEADLINER, REMOVAL .
  2. Disconnect the rear drain tube (1) from the sunroof.
  3. Remove the rear drain tube from the retaining clips (2).
  4. Remove the drain tube grommet (3) out of the rear quarter panel and remove.
