Tube, Sunroof Drain: Removal: Front

Courtesy of CHRYSLER GROUP, LLC

Lower the front of the headliner. Refer to HEADLINER, REMOVAL .

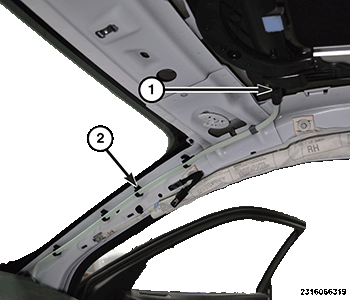

Disconnect the front drain tube (1) from the sunroof.
Remove the front drain tube from the retaining clips (2).
Remove the defroster grill. Refer to GRILLE, DEFROSTER, REMOVAL .
For the right side front drain tube, remove the Body Control Module. Refer to MODULE, BODY CONTROL (BCM), REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
For the left side front drain tube, remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .
For the left side front drain tube, remove the bolts (3) and position the parking brake lever (2) aside.
Pull the body side silencer away and remove the drain tube grommet from the body side.
Route the drain tube through the top of the instrument panel and remove.
